Quick Details
-
Table Travel (Z) (mm):
-
500 mm
-
Max. Table Load(kg):
-
250
-
Travel (W-axis) (mm):
-
950 mm
-
Marketing Type:
-
New Product 2021
-
Range of Spindle Speed(r.p.m):
-
230 r.p.m
-
Spindle Motor Power(kW):
-
1
-
Production Capacity:
-
50
-
Place of Origin:
-
Kocaeli, Turkey
-
Brand Name:
-
ALLAME
-
Voltage:
-
220
-
Dimension(L*W*H):
-
100x50x50
-
Weight (T):
-
0.25 T
-
Color:
-
Blue
-
Weight:
-
80
-
Motor Power (kw):
-
1
Quick Details
-
Table Size (mm):
-
960x1100
-
Table Travel (X) (mm):
-
950 mm
-
Table Travel (Y) (mm):
-
450 mm
-
Table Travel (Z) (mm):
-
500 mm
-
Max. Table Load(kg):
-
250
-
Travel (W-axis) (mm):
-
950 mm
-
Marketing Type:
-
New Product 2021
-
Range of Spindle Speed(r.p.m):
-
230 r.p.m
-
Spindle Motor Power(kW):
-
1
-
Production Capacity:
-
50
-
Place of Origin:
-
Kocaeli, Turkey
-
Brand Name:
-
ALLAME
-
Voltage:
-
220
-
Dimension(L*W*H):
-
100x50x50
-
Weight (T):
-
0.25 T
-
Color:
-
Blue
-
Weight:
-
80
-
Motor Power (kw):
-
1
Portable Line Welding Machine
PROCESSING DIAMETERS
(Ø42 mm: up to Ø400 mm)
LINEBORTECH has been manufactured to work in the renovation and repair services of various heavy industrial machines.
The first model of the LINEBORTECH machine in different concept is LINEBORTECH 40 is generally manufactured for Ø 42 mm Ø 400 mm for chip lifting, in-hole welding, and turning operations.
Extra equipment is added for work up to Ø 600mm. The machines ergonomic design, easy handling, and light weight are the most outstanding features.
LINEBORTECH We have different features
* Oil-free / silent, system driven speed/torque belt transfer
* Worm gear spindle adjustment and quick traverse button
* 230mm continuous machining distance
* Constant torque output at all set speeds with encoder capacity of the main motor
* Centering set a punch
* Telescopic welding torch
* Control needle. excluding.
Weight 33 kg.
Diameter details
Perforated Machining: Ø42mm - 400mm
External Processing: With Optional Attachments
Perforated Welding: Ø60mm - 400mm
Head Turn: With External Kit
Standard Hardware

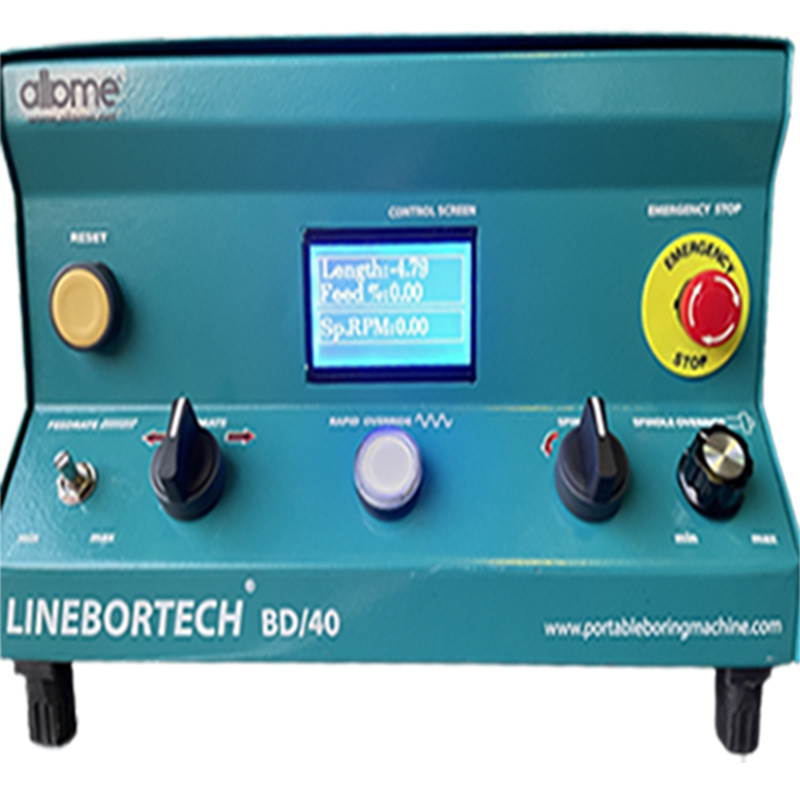

1 List. Electronic Control Panel
1 List. Processing Spindle Ø40 x 2000 mm
1 List. Machining Shaft Ø40 x 700 mm
1 List. Telescopic Welder
1 Outer Lanyard
1 List. 10 Sc. 0.9 Diamond Set
1 List. Right Lifting Pen Ø12 x 100
1 List. Left Workpiece Ø12 x 60
1 Centralization
2 Main Bearings Double Bearing
2 Bed
1 piece machine transportation
5 Pieces Short Breast
5 Pieces Long Breast
5 pieces Short Breast
5 Long Nozzle
12 Mounting Foot Up to 400mm
1 key switch set
portableboringmachine.com
If you want more information about the portable line boring machine feels free to contact us.
