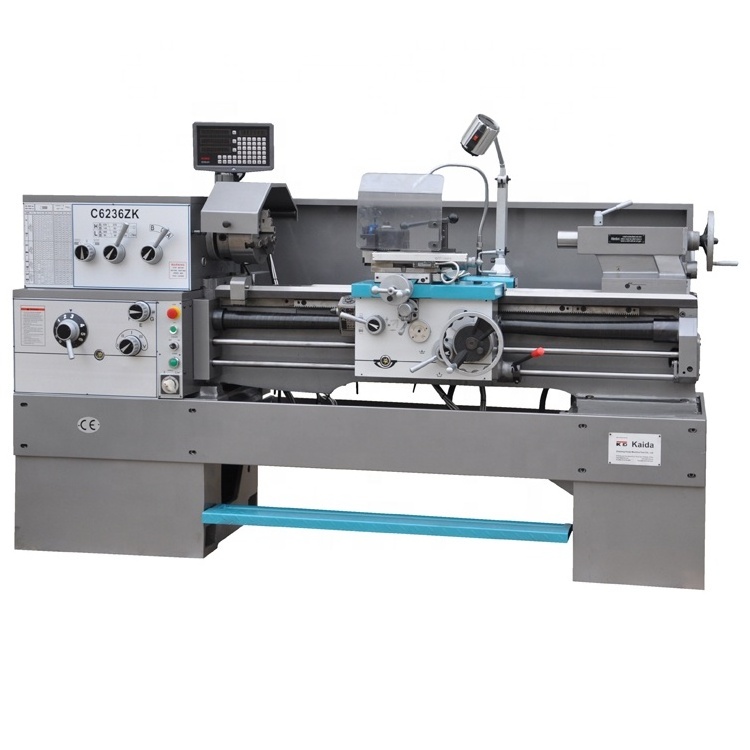

KD C6140ZK metal lathe mill combo 6241 lathe
KD C6140ZK metal lathe mill combo 6241 lathe
KD C6140ZK metal lathe mill combo 6241 lathe
KD C6140ZK metal lathe mill combo 6241 lathe
KD C6140ZK metal lathe mill combo 6241 lathe
KD C6140ZK metal lathe mill combo 6241 lathe
KD C6140ZK metal lathe mill combo 6241 lathe
KD C6140ZK metal lathe mill combo 6241 lathe

KD C6140ZK metal lathe mill combo 6241 lathe

FOB Reference Price: Get Latest Price
≥1 Sets
US $7643
≥3 Sets
US $7337
≥5 Sets
US $6879
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Range of Spindle Speed(r.p.m):
70 - 1800 r.p.m
Width of bed (mm):
312
Max. Turned Length (mm):
1500 mm
Spindle Motor Power(kW):
4/5.5
Year:
2020
Place of Origin:
Zhejiang, China
Brand Name:
KD
Model Number:
C6140ZK
Voltage:
Made to order
Dimension(L*W*H):
2140(2360/2860)*1000*1200mm
Weight (KG):
1940 KG
Automatic Grade:
Manual
Width of bed:
312mm
Max. Swing Diameter:
400mm
Weight:
1900kg
Power(W):
4/5.5 kw
Distance between centers:
750/1000/1500mm
Max swing over bed:
400/460mm
Tool holder:
20x20mm
Max. Swing Diameter (mm):
400 mm

Quick Details

Max. Length of Workpiece (mm):
1500 mm
Machining Capacity:
Medium Duty
Spindle Bore(mm):
52 m'm
Range of Spindle Speed(r.p.m):
70 - 1800 r.p.m
Width of bed (mm):
312
Max. Turned Length (mm):
1500 mm
Spindle Motor Power(kW):
4/5.5
Year:
2020
Place of Origin:
Zhejiang, China
Brand Name:
KD
Model Number:
C6140ZK
Voltage:
Made to order
Dimension(L*W*H):
2140(2360/2860)*1000*1200mm
Weight (KG):
1940 KG
Automatic Grade:
Manual
Width of bed:
312mm
Max. Swing Diameter:
400mm
Weight:
1900kg
Power(W):
4/5.5 kw
Distance between centers:
750/1000/1500mm
Max swing over bed:
400/460mm
Tool holder:
20x20mm
Max. Swing Diameter (mm):
400 mm
FEATURES AT A GLANCE
Product Features
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. There is no need for change gears. The machine can turn about 150 kinds of metric, inch, module and D.P. threads.
4.An automatic stopping device is used to realized automatic stop for the machining of a work piece of a certain length.
5. Easy operating speed change levers.
6. Removable gap is provided for larger diameter work.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
MODELS
C6140ZK/C6240ZK
C6146ZK/C6246ZK
CAPACITY


Max.swing over bed
Ф400 mm
Ф460 mm
Max.swing over carriage
Ф255 mm
Ф275 mm
*Max swing over gap (gap is optional)
Ф570 mm
Ф630 mm
Width of bed
312mm
Max.length of workpiece
750/1000/1500 mm
Max.length of workpiece
670/920/1420 mm
Effective gap length
200 mm
SPINDLE
Spindle bore
Ф52 mm
Spindle nose
D6
Taper bore of spindle
M.T.No.6
Steps of spindle speed
12
Range of spindle speed
40~1800 rpm
THREAD RANGE/NUMBER
Metric pitch threads
0.5~20mm/ 24
Inch threads
72~1-5/8 TPI/ 61
Module threads
0.25~10M.P/ 20
D.P.Threads
96~3-1/4 D/ 45
FEED
Range of longitudinal feeds
0.04~2.46 (0.0015″~0.0913″) mm
Range of cross feeds
0.03~1.23 (0.0006″~0.0365″) mm
TAILSTOCK SLEEVE
Taper bore
M.T.NO.4
Max.travel
120 mm
External diameter
Ф60 mm
OTHERS
Size of tool shank
20×20 mm
Max travel of cross slide
240 mm
Max.travel of compound rest
130 mm
Main motor power
4/5.5 kW
Overall dimensions(L×W×H)
2140/2360/2860×1000×1200 mm
Net weight
1730/1810/1970 kg
1780/1860/2020 kg
PRODUCT CONFIGURATION
Chuck cover, tool post cover and leadscrew cover are optional.
Standard 4-way tool post.
Left or right side handwheel.
European or American type quick change tool post.
Manual tailstock
Tool box with accessoires.
