Quick Details
-
Fiber Diameter:
-
3.0-5.0
-
Thermal Conductivity:
-
0.12Mpa
-
Density (kg/m³ ):
-
160
-
Place of Origin:
-
Shandong, China
-
Width:
-
610/1220mm
-
Length:
-
10000-60000mm
-
Shrinkage (1800℉, 3h):
-
1100℃x24h<=-3%
-
Brand Name:
-
CCEWOOL
-
Model Number:
-
1260STD
-
Color:
-
Pure white
-
Density:
-
200 kg/m3
-
Certificate:
-
ISO 9000, CE
-
Product name:
-
Refractory High Temperature Ceramic Fiber Paper Gasket
Quick Details
-
Chemical Composition:
-
46%
-
Ultimate Strength (≥ MPa):
-
0.3
-
Working Temperature:
-
1050
-
Fiber Diameter:
-
3.0-5.0
-
Thermal Conductivity:
-
0.12Mpa
-
Density (kg/m³ ):
-
160
-
Place of Origin:
-
Shandong, China
-
Width:
-
610/1220mm
-
Length:
-
10000-60000mm
-
Shrinkage (1800℉, 3h):
-
1100℃x24h<=-3%
-
Brand Name:
-
CCEWOOL
-
Model Number:
-
1260STD
-
Color:
-
Pure white
-
Density:
-
200 kg/m3
-
Certificate:
-
ISO 9000, CE
-
Product name:
-
Refractory High Temperature Ceramic Fiber Paper Gasket

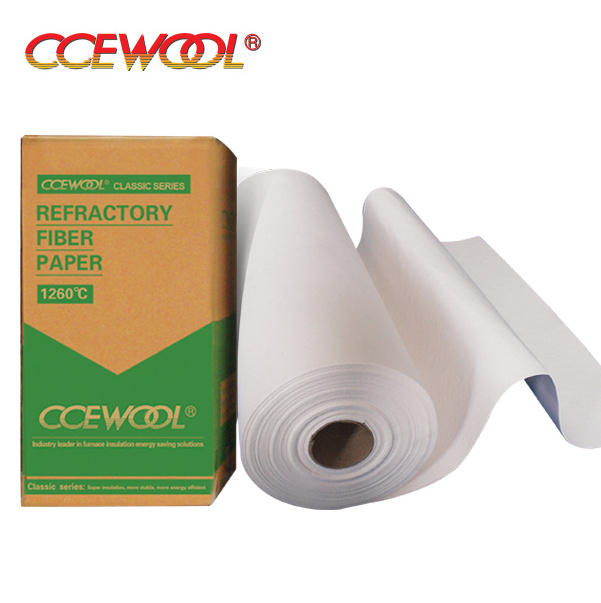

CCEWOOL Refractory High Temperature Ceramic Fiber Paper Gasket
♦ The working temperature is 1050℃. Standard thick is from 0.5mm to 12mm, standard width is 610mm and 1220mm. It is made from high-purity ceramic fiber by adding a small amount of binder which will completed burnt out during using process, through production technology with scientific selection and strict control binding.
The product shows excellent thermal insulation properties and construction performance, suitable for use in deep processing (multi-layer composite, punching, etc.)
|
Item |
CCEWOOL Refractory High Temperature Ceramic Fiber Paper Gasket |
|
Characteristics |
Low thermal capacity Low thermal conductivity Excellent electrical insulation properties Excellent machining performance High strength, tear resistance High flexibility Low shot content |
|
Specifications |
Thickness:0.6mm,1mm,3mm,5mm,6mm,10mm,12mm Min Width 5cm Regular size:40000x610x0.6mm; 40000x610x1mm; 20000x610x2mm;15000x610x3mm; 10000x610x5mm; 10000x610x6mm |
|
Working Temperature |
1050Ordinary Ceramic Fiber Paper--950C 1260Standard Ceramic Fiber Paper--1050C 1260High-purity Ceramic Fiber Paper --1100C 1400High Aluminum Ceramic Fiber Paper--1200C 1450Zirconia Ceramic Fiber Paper--1350C |
|
Applications |
Insulation material for instruments and heating element Insulation material for automobile and aerospace industry Expansion joints filling material Isolation for construction material, metallurgy and glass industries, Molten metal sealing gasket Fireproof material Substitute for glass fiber and asbestos fiber |
|
Package |
plastic bag inside, carton or woven bag outside |
The technical data of CCEWOOL Refractory High Temperature Ceramic Fiber Paper Gasket m i n below. Pls kindly check it .
| Product Name | 1260 Standard Ceramic Fiber Paper | 1400 High-Alumina Ceramic Fiber Paper | 1450 Zirconia Ceramic Fiber paper | |
|
Temperature Grade( ℃) |
1260 | 1400 | 1450 | |
|
Max Operation Temp ℃ |
1050 | 1200 | 1350 | |
|
Density(kg/m3)
|
200±10 | |||
|
Tensile Strength |
≥0.4 | ≥0.4 | ≥0.7 | |
| Chemical Composition | Al2O3 | 46 | 52-55 | 39-40 |
| Al2O3+SiO2 | 97 | 99 | - | |
| ZrO2 | - | - | 15-17 | |
| Fe2O3 | 1.0 | 0.2 | 0.2 | |
| Na2O+K2O | 0.5 | 0.2 | 0.2 | |
| Standard Size |
1mm x 610mm x 60000,2mm x 610mm x 30000mm,3mm x 610mm x 20000mm,4 x 610mm x 25000mm, 5 x 610mm x 15000mm,6mm x 610mm x 10000mm The size can be also customized as customers' specification |
|||
|
Packing |
Inner Plastic Bag + Outer Carton |
|||
1. Thickness of ceramic fiber paper is from 05.mm to 12mm. Standard width is 610mm and 1220mm, the min width is 50mm.
2. We can also produce special shape ceramic fiber paper gasket.
We have weight inspection before packing, to make sure actual weight >= theoretical weight.
Also have size inspection to guarantte the precise size.
Chemical composition testing before shipping.
For more information , pls check our website : www.ceceramicfiber.com
CCEWOOL Refractory High Temperature Ceramic Fiber Paper Gasket paseed CE certificate.
We are the only manufacturer who got CE certificates in China.
At the same time, we passed TUV,BV,SGS --the third party inspection.
1 . Factory information:
a:The factory covers 80000 square meters, which equipped with 26 ceramic fiber blanket production lines,
b:Auto ceramic fiber board production lines,2 ceramic fiber paper production lines and 2 ceramic fiber textile production lines.
c:The Annual output can reach to 60,000 tons.
2. Exhibition information
Double egret has been in international exhibition since 2009.
Stable quality and good credit make our brand"CCEWOOL" be highly recommended by customers all over the world.
