Quick Details
-
Cutting Thickness:
-
0.02-0.5mm
-
Control Software:
-
Golden Laser Software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Golden Laser
-
Weight (KG):
-
3500 KG
-
Applicable Industries:
-
Apparel, Printing & Packaging, Industrial, Automotive, Abrasive, Electronics, Gaskets, RFID, Medical Industry, Beauty Industry, etc
-
Products handled:
-
Roll Fed
-
Certification:
-
CE
Quick Details
-
Laser Type:
-
CO2
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
width 350mm*unlimited length
-
Cutting Thickness:
-
0.02-0.5mm
-
Control Software:
-
Golden Laser Software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Golden Laser
-
Weight (KG):
-
3500 KG
-
Applicable Industries:
-
Apparel, Printing & Packaging, Industrial, Automotive, Abrasive, Electronics, Gaskets, RFID, Medical Industry, Beauty Industry, etc
-
Products handled:
-
Roll Fed
-
Certification:
-
CE
NOTE:
Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.;-)
Product Description

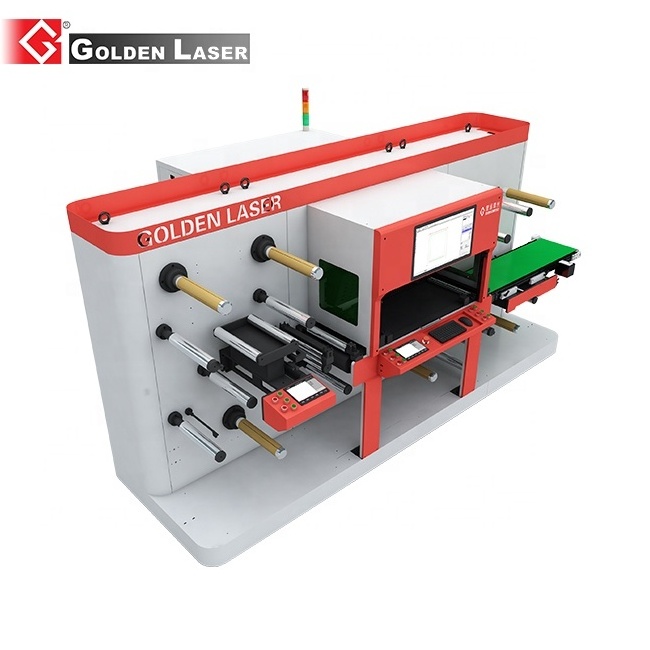

Roll to Part Laser Die Cutting Machine for Scoring Paper Box with Dual Head
__
Golden Laser -
d
igital laser die-cutting and converting systems provide maximum flexibility, automation and production throughput for labels and web-based materials, which
is capable of handling not only roll-to-roll labels, but can also operate as a roll-to-sheet and roll-to-part finishing solution.
It includes an extraction mechanism that separates your finished production items onto a conveyor.
Now it's time for you to consider using a laser solution and giving your company an edge over the competition.
Machine Pics
__
Specification
|
LC350
Technical Parameters
|
|
|
|
Max Cutting Width
|
350mm / 13.7”
|
|
|
Max Width of Feeding
|
370mm / 14.5”
|
|
|
Max Web Diameter
|
750mm / 29.5”
|
|
|
Max Web Speed
|
120m/min (Depending on laser power, material and cut pattern)
|
|
|
Accuracy
|
±0.1mm
|
|
|
Laser Type
|
CO2 RF laser
|
|
|
Laser Beam Positioning
|
Galvanometer
|
|
|
Laser Power
|
150W / 300W / 600W
|
|
|
Laser Power Output Range
|
5%-100%
|
|
|
Power Supply
|
380V 50Hz / 60Hz, Three phase
|
|
|
Dimensions
|
L3700 x W2000 x H 1820 (mm)
|
|
|
Weight
|
3500KG
|
|
Modular Multifunctional Integration
Laser cutting systems can be custom-built by Goldenlaser with your preferred add-on converting options. The modular alternatives listed below may provide versatility to your new or current product lines while also boost your label applications:
▶ Unwinder ▶ Web Guiding ▶ Lamination
▶ UV Coating ▶ Dual Laser Die Cutting ▶ Rotary Die Cutting
▶ Bar Code Reading ▶ Back Slitter / Back Scoring Slitting Matrix Removal
▶ UV Coating ▶ Dual Laser Die Cutting ▶ Rotary Die Cutting
▶ Bar Code Reading ▶ Back Slitter / Back Scoring Slitting Matrix Removal
▶ Dual Rewinder Sheeting ▶ Cold Foil
Advantages
* Superior laser cut quality thanks to the fully digital galvo system.
* The laser has an optional bar code reader for quick change over.
* No tooling required, simply upload the file to the Golden Laser Software and the LC350 laser will start working.
* No more ordering conventional tooling.
* Online support and remote diagnostics.
* No tooling required, simply upload the file to the Golden Laser Software and the LC350 laser will start working.
* No more ordering conventional tooling.
* Online support and remote diagnostics.
Applications
Many of our customers now have possibilities in both new and current markets thanks to laser converting systems from Goldenlaser. Typical applications include:
▶
Labels ▶Stickers ▶Decals ▶Packaging
▶Abrasive Materials ▶Industrial ▶Automotive ▶Gaskets
▶Abrasive Materials ▶Industrial ▶Automotive ▶Gaskets
Scoring Paper Box
Synthetic Coated Paper Sticker
Reflective Tape
Sticker
Sticker
3M VHB Tape
Coated Paper
Logo Vinyl
Beer Label
