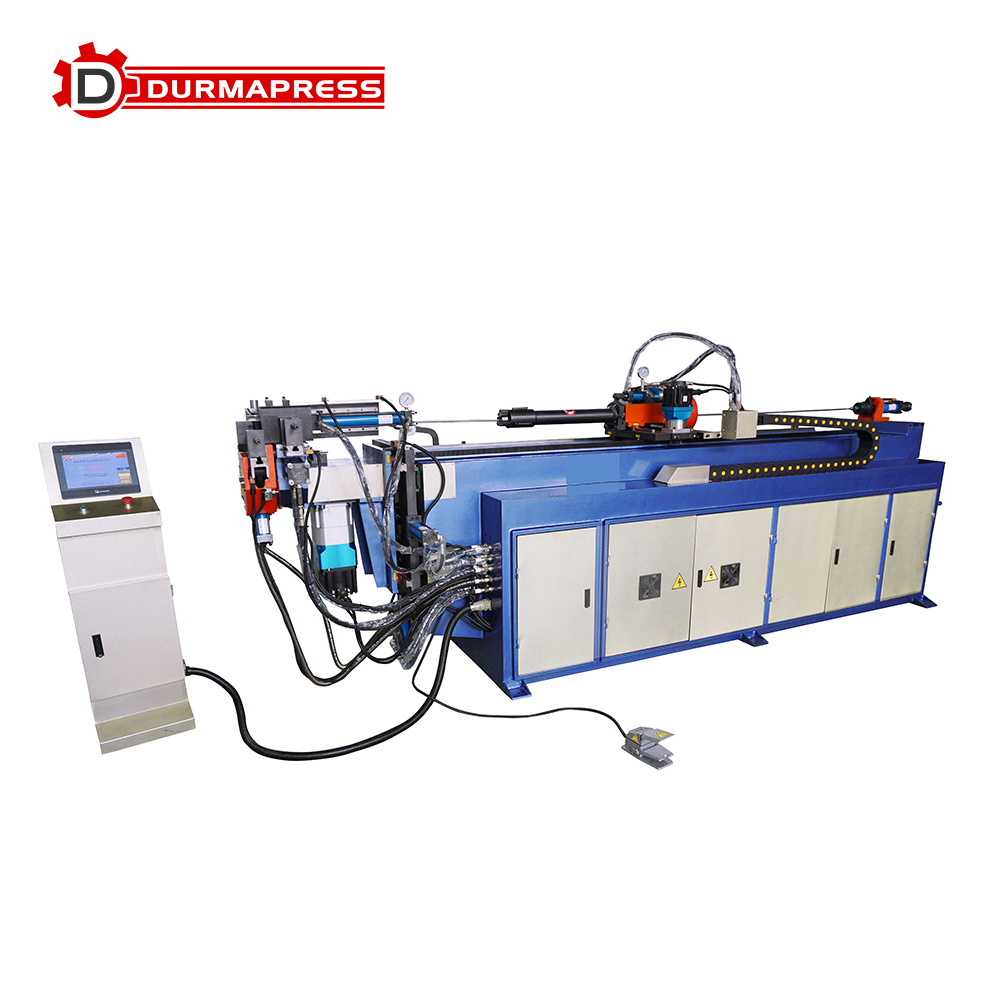

Electric Pipe Bending Machine DW CNC Series Tube Bending Machines
Electric Pipe Bending Machine DW CNC Series Tube Bending Machines
Electric Pipe Bending Machine DW CNC Series Tube Bending Machines
Electric Pipe Bending Machine DW CNC Series Tube Bending Machines
Electric Pipe Bending Machine DW CNC Series Tube Bending Machines
Electric Pipe Bending Machine DW CNC Series Tube Bending Machines
Electric Pipe Bending Machine DW CNC Series Tube Bending Machines
Electric Pipe Bending Machine DW CNC Series Tube Bending Machines

Electric Pipe Bending Machine DW CNC Series Tube Bending Machines

FOB Reference Price: Get Latest Price
≥1 Sets
US $5468
≥2 Sets
US $5380
≥3 Sets
US $5280
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Anhui, China
Brand Name:
Durmapress
Year:
2022
Power (kW):
5.5
Weight (KG):
1220
Marketing Type:
Hot Product 2022
Product name:
Pipe Bending Machine
Application:
Pipes Processing
Name:
Steel Pipe Bender
Usage:
Pipe Tube Bending
Type:
Hydraulic Tube Bending Machine
Material:
Mild Steel
Color:
Blue
Certification:
CE Certificate
Keyword:
NC Pipe Tube Bending Machine
Function:
Bending Tube

Quick Details

Bending Radius (mm):
1 - 25
Max. Bending Angle (Deg):
190
Bending Precision (Deg):
±0.1°
Place of Origin:
Anhui, China
Brand Name:
Durmapress
Year:
2022
Power (kW):
5.5
Weight (KG):
1220
Marketing Type:
Hot Product 2022
Product name:
Pipe Bending Machine
Application:
Pipes Processing
Name:
Steel Pipe Bender
Usage:
Pipe Tube Bending
Type:
Hydraulic Tube Bending Machine
Material:
Mild Steel
Color:
Blue
Certification:
CE Certificate
Keyword:
NC Pipe Tube Bending Machine
Function:
Bending Tube
Product Description
Tube Bending Machine
*The automatic pipe bender can bend and tilt automatically . The pipe fittings can be bent automatically at one time. The tilting is controlled by servo motor and servo driver.The elbow shaft is controlled by oil pressure , and the matching speed is adjusted by regulating valve.
*The electric control system adopts famous brand controller,surper large PLC , with strong performance and good stability.
*With power off memory function,data can be stored for a long time.
*Manual , semi-automatic and full-automatic operation modes can be set.
Detailed Images



01
Servo Motor
The feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.



02
Air cooler
Ensure the stability of the machine for a long time.



03
Tube Bending Machine Mould
Mould tooling specification NCB auto pipe bending machine.
Anther details.....

Lubrication Oil


Cylinder


Stuck Tube


Hydraulic components


Electrical from France


Tank Link

No.
Parameter
Unit
NC38
NC50
NC63
NC75
NC89
1
Max.Pipe Diameter
mm
Φ38x2
Φ50x3
Φ63x4
Φ75x4
Φ89x5
2
Max. Bending Capacity for Carbon Steel Pipe (Outside Dia.*Wall Thickness)
mm
Φ38x2
Φ50x3
Φ60x3
Φ70x6
Φ89x3
3
Max. Bending Capacity for Square Pipe (Outside Dia. * Wall Thickness)
mm
30*30*2
40*50*2
50*50*2
60*60*2
70*70*2
4
Max. Bending Radius
mm
R200
R350
R350
R400
R450
5
Max. Bending Radius
mm
Depending on pipe
diameter(2 times of pipe outer diameter)
Depending on pipe
diameter(2 times of pipe outer diameter)
Depending on pipe
diameter(2 times of pipe outer diameter)
Depending on pipe
diameter(2 times of pipe outer diameter)
Depending on pipe
diameter(2 times of pipe outer diameter)
6
Max.Core-Piercing Distance
Degree
190
190
190
190
190
7
Min.Core-Piercing Distance
mm
1600
2200
2600
2800
3200
8
Main Oil Cylinder Diameter
mm
75
95
110
140
160
9
Die Center height from ground
mm
950
1000
1000
1100
1100
10
Cycling Speed Every 90 Degrees
s
3
4
5
8
10
11
Controller
s
Single chip
Single chip
Single chip
Single chip
Single chip
12
Data Input Mode
/
Manually input
Manually input
Manually input
Manually input
Manually input
13
Max.Bending Number Per Pipe
PSC
16
16
16
16
16
14
Working Speed
Deg/sec
65
55
45
35
30
15
Main Motor Power
Kw
4
5.5
7.5
11
11
16
Max. Pressure
MPa
12
12
12
12
10
17
Hydraulic Control Control
/
Solenoid valve
Solenoid valve
Solenoid valve
Solenoid valve
Solenoid valve
18
Oil Tank Volume
L
150
220
220
250
450
19
Machine Weight
Kw
750
1220
1500
2000
4000
20
Outline Dimension
mm
2400x700x1220
3000x700x1030
3500x750x1100
400x100x110
4600x1200x1400
Bending Samples:

Main Features:

* Structural style: * NC Pipe bending machine adopts boom lifting clamp structure
* Hydraulic bending mode
* Hydraulic guide side pushin mechanism
* Hydraulic system is equipped with water cooling device , which is convenient for users to control the oil temperature
* Pipe bending direction is clockwise from top view
* Electrical control and operation interface
* The operation interface of NC hydraulic pipe bending machine adopts single chip microcomputer
* Digital display resolution : turn 0.15°
* NC hydraulic pipe bending machine adopts single chip microcomputer controller
* Bending parameters can be set ( preset ) on the operation interface .
* NC Hydraulic pipe bending machine with the following characteristics .
* Maximum memory capacity can up to 16 bends per group
* Directly input bending machining paramenets , the machine can be executed step by step and suspended during automatic operation so that the specal pipe can be manually interfered when bending , and the automatic operation can be resumed with automatic and manual pause , emergency stop function
* Working program and bending program memry storage time is unlimited and will not be lost due to power outage or long-term use .
* Program edit with minor correction input , the original processing data will not be lost due to multi-times
program modification .
* With processing quantity and processing time counting function
* Real time display the position and bending angle of each action axison screen
* In case of any accident or error during auomatic processing , the machine can be suspended , and the
machine can continue to finish the unfinished work , so as to advoid the waste .
* Automatic or manual mode setting can be set according to the difference of processing feature, such as
whether there is a piercing heart , auxiliary push and so on .
* With multiple delay parameter settings , the most appropriate time difference can be set for each acttion axis to meet the requirements of various bending changes .
* The machine is with automatic detection function of each buttom and circuit output / input board , which can easily find the possible fault location .
* Closed loop control
