Quick Details
-
Drilling Speed:
-
10-5000mm/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
kasry
-
Voltage:
-
380v
-
Power (kW):
-
66kw
-
Weight (KG):
-
2000 KG
-
Marketing Type:
-
New Product 2021
-
H beam size:
-
150x80-1250x600mm
-
U beam size:
-
150x80-1250x400mm
-
Box beam size:
-
150x80-1250x600mm
-
Angle steel size:
-
200x200x16mm
-
Max thickness:
-
80mm
-
Length:
-
12m or 15m customized
-
Min. Length:
-
3m
-
Precision:
-
±0.5 mm
-
WorK hight:
-
64mm
-
WorKing range:
-
100x50mm~1000x500mm
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
8-40mm
-
Range of Spindle Speed(r.p.m):
-
50 - 300 r.p.m
-
Drilling Speed:
-
10-5000mm/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
kasry
-
Voltage:
-
380v
-
Power (kW):
-
66kw
-
Weight (KG):
-
2000 KG
-
Marketing Type:
-
New Product 2021
-
H beam size:
-
150x80-1250x600mm
-
U beam size:
-
150x80-1250x400mm
-
Box beam size:
-
150x80-1250x600mm
-
Angle steel size:
-
200x200x16mm
-
Max thickness:
-
80mm
-
Length:
-
12m or 15m customized
-
Min. Length:
-
3m
-
Precision:
-
±0.5 mm
-
WorK hight:
-
64mm
-
WorKing range:
-
100x50mm~1000x500mm
|
Model
|

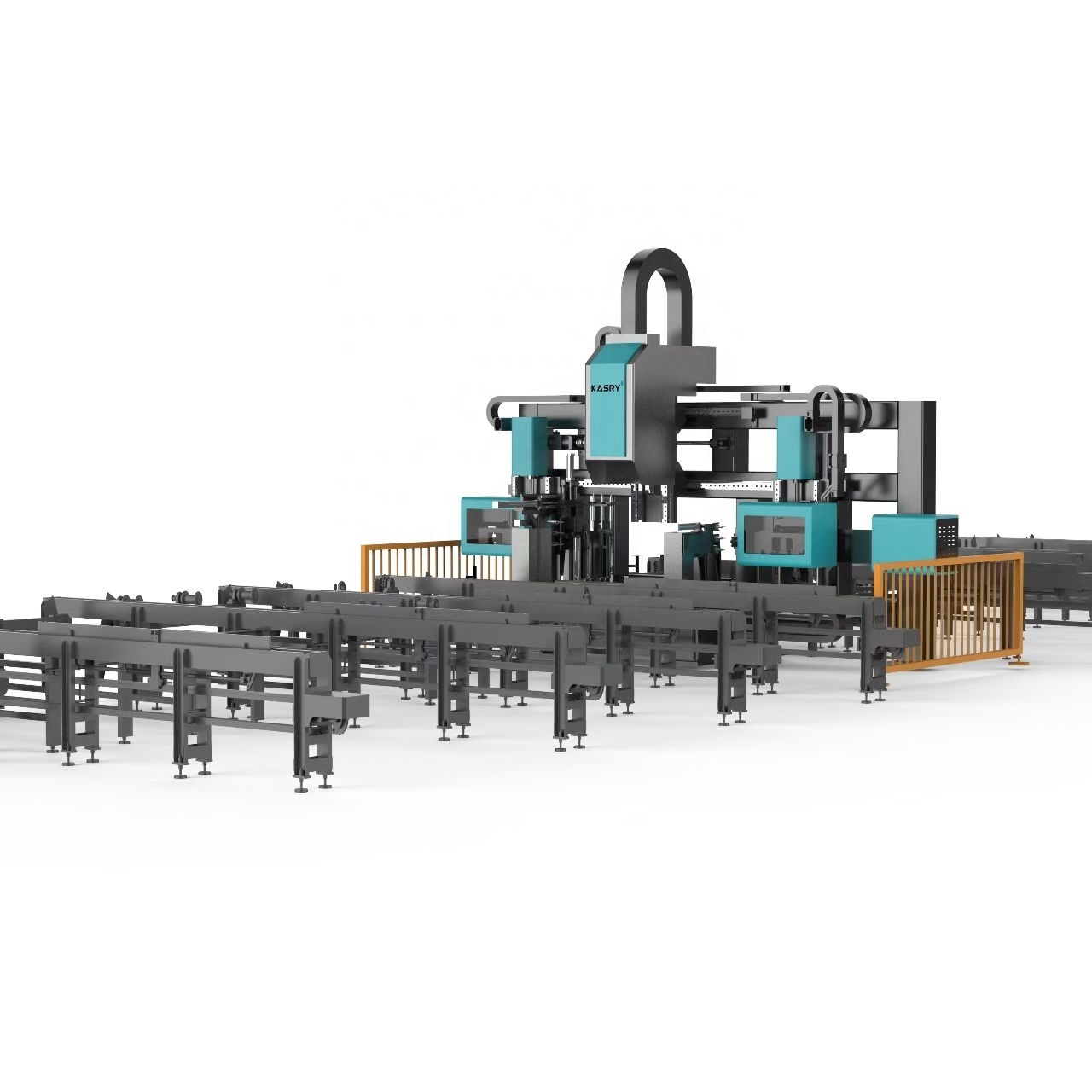

3D drilling hole machine
|
|
H beam
|
200~1250mm
|
|
2 beam max thicknee
|
40mm
|
|
3 max drilling OD
|
8~40mm |
|
Spindle motor power
|
15KW
|
|
Spindle speed
|
30~600r/min
|
|
Feeding length
|
12m
|
|
Feeding speed
|
9000mm/min |
|
Process precision
|
The distance between adjacent holes in the hole group (＜640mm) error ±0.5mmHole distance between hole group (＞640mm)error
±1.0mm/10000 |
|
Position cnc axis move speed
|
10~6000mm/min
|
|
Feed axis move speed
|
10~12000mm/min
|
|
Max loading weight
|
1000kg
|
