Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SIMO
-
Model Number:
-
SIMO Blower 4-10
-
Voltage:
-
380V/415V/440V/660V/6KV/10KV
-
Material:
-
Carbon steel
-
Motor:
-
LA/SIMO/WN
-
Certification:
-
ISO9001 Certification
-
Application:
-
Smoke exhaust
-
Color:
-
Customized paint color
-
Feature:
-
High air volume
-
Optional components:
-
Silencer, Air damper...
-
Package:
-
Steel pallet/Wooden case
-
Impeller:
-
Annealing adjustment
-
Name:
-
Smoke exhaust blower fan
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Construction works , Energy & Mining
-
Electric Current Type:
-
AC
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SIMO
-
Model Number:
-
SIMO Blower 4-10
-
Voltage:
-
380V/415V/440V/660V/6KV/10KV
-
Material:
-
Carbon steel
-
Motor:
-
LA/SIMO/WN
-
Certification:
-
ISO9001 Certification
-
Application:
-
Smoke exhaust
-
Color:
-
Customized paint color
-
Feature:
-
High air volume
-
Optional components:
-
Silencer, Air damper...
-
Package:
-
Steel pallet/Wooden case
-
Impeller:
-
Annealing adjustment
-
Name:
-
Smoke exhaust blower fan

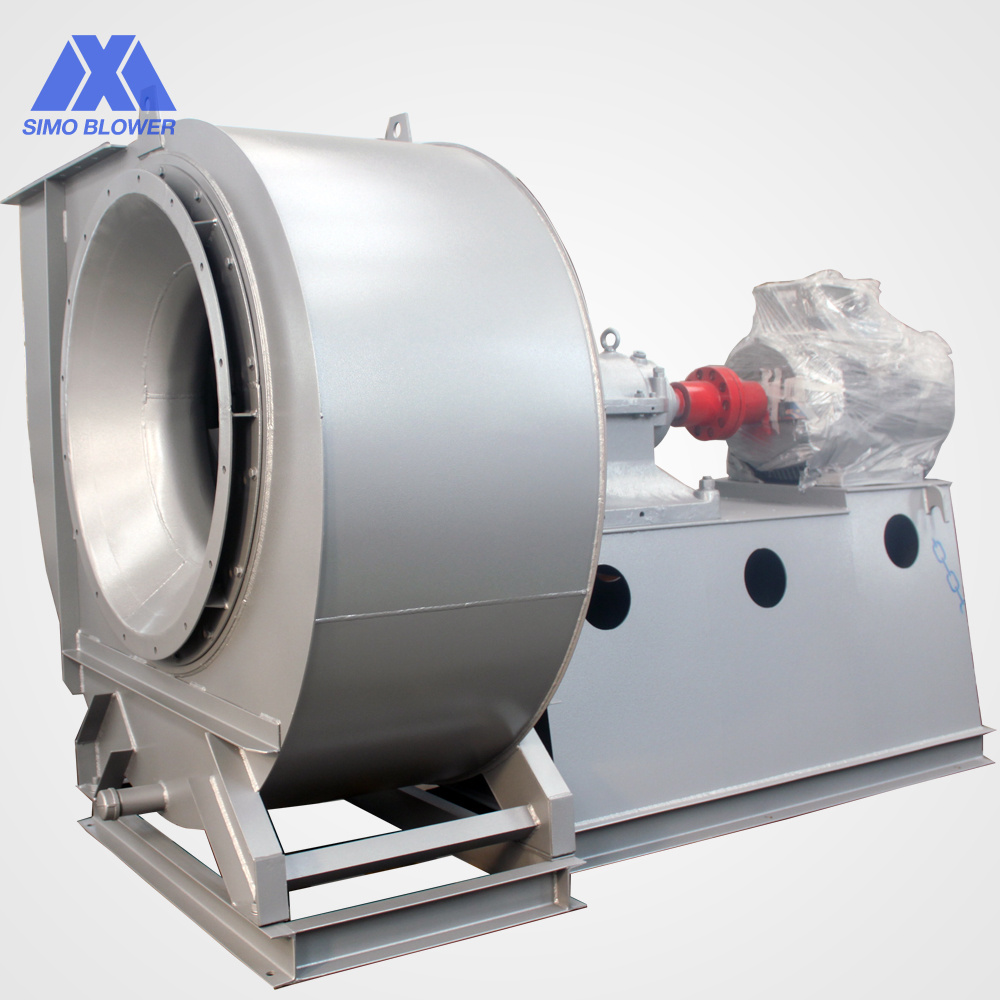

Carbon steel 4000 cfm Smoke exhaust blower fan
The Carbon steel 4000 cfm Smoke exhaust blower fan is made of carbon steel, whose capacity is adjusted, 4000 cfm is in the blower fan's capacity range. According your requirement, SIMO can design the blower fan for you.
| Carbon steel 4000 cfm Smoke exhaust blower fan | |||
| Performance | Pressure range | 553 ~ 6541 | Pa |
| Air flow range | 15886 ~166100 | m3/h | |
| Impeller diameter | 1000~1600 | mm | |
| Speed | 580~1450 | rpm | |
| Material | Blower fan case | Q235, Q345, stainless steel | Design as special |
| Blower fan shaft | 45# steel, Q304, SS304,SS316L | ||
| Blower fan impeller | Q304, 12Cr1Mov,15Crmov, 15MnV | ||
| Medium | 10---120℃ | Dustiness<110 g/m3 | incombustible |
| Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
|
Optional
components |
System base frame, Protective screening,
Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. |
||
Industrial centrifugal fan have widely used in industrial systems,such as
Building materials:Cement mill, Glass product,Brick klin,mineral waste esidue
Metallurgy: coke blast-furnace,steel-making,electrolytic aluminium,
Power Generation: biomass energy,coal furnace ,waste incineration
Packing detail : Carbon steel 4000 cfm Smoke exhaust blower fan is packed by wooden case and steel pallet
Delivery detail: 30 days after receive your payment
