Quick Details
-
Brand Name:
-
DA Gen 2+ / Euro Gen 3 NV Monocular
-
Model Number:
-
PVS14
-
Magnification:
-
1X
-
IIT:
-
Gen 2+ / Euro Gen 3
-
S/N:
-
18-25
-
Luminous sensitivity (uA/lm):
-
500-900/1600
-
FOV:
-
40 degree
-
MTTF(hrs):
-
10,000
-
Lens System:
-
F1.2, 25mm
-
Environment rating:
-
IP65 (IP67 optional)
-
Battey type:
-
CR123(A)x1
-
Coating:
-
Multilayer broadband coating
-
Material:
-
Aviation aluminum
-
Exit Pupil Diam:
-
14mm
Quick Details
-
Warranty:
-
1 Year
-
Certification:
-
pcoc, Reach, IECEE, scoc, EPA, GS
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
DA Gen 2+ / Euro Gen 3 NV Monocular
-
Model Number:
-
PVS14
-
Magnification:
-
1X
-
IIT:
-
Gen 2+ / Euro Gen 3
-
S/N:
-
18-25
-
Luminous sensitivity (uA/lm):
-
500-900/1600
-
FOV:
-
40 degree
-
MTTF(hrs):
-
10,000
-
Lens System:
-
F1.2, 25mm
-
Environment rating:
-
IP65 (IP67 optional)
-
Battey type:
-
CR123(A)x1
-
Coating:
-
Multilayer broadband coating
-
Material:
-
Aviation aluminum
-
Exit Pupil Diam:
-
14mm
Contact Engineer Manager
Products Description

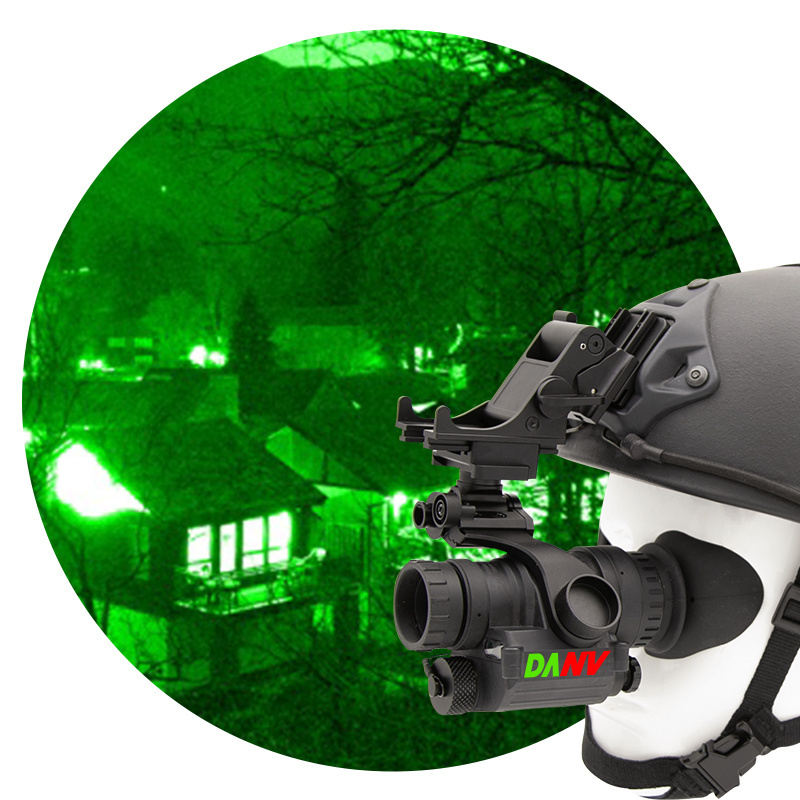

DA PVS14
Portable and Multi-functional Night Vision Monocular
MAIN FEATURES：
Small in size, compact rugged goggle system.
Waterproof and fog resistant. High resolution.
Two different color imaging effects of white and green.
Multipurpose: handheld, helmet support, head support.
PACKAGE INCLUDES：
* Objective Lens Cap / Daylight Filter
* Head Mount Adapter/Helmet bracket
* Eyecup/ Lens Tissue
* J-arm/ Shoulder Strap
* safety box
* Objective Lens Cap / Daylight Filter
* Head Mount Adapter/Helmet bracket
* Eyecup/ Lens Tissue
* J-arm/ Shoulder Strap
* safety box
Recommend Products
Specification
|
Model
|
DA-PVS14
|
|
Name
|
Night vision monocular
|
|
Magnification
|
1x
|
|
FOV
|
40°
|
|
Exit pupil distance
|
25mm
|
|
Exit pupil diameter
|
14mm
|
|
Range of visibility
|
-5~+5
|
|
F number
|
1.2
|
|
Lens system
|
25mm
|
|
Focus range
|
250mm to infinity
|
|
Size
|
114*70*60mm
|
|
Weight
|
310g(with battery)
|
|
Power supply
|
AA batery or CR123
|
|
Working time
|
30hours
|
|
IIT
|
Euro Gen3
|
|
Cathode type
|
18mm S-25
|
|
Resolution
|
More than 60 Lp/mm
|
|
FOM
|
＞1350
|
|
Operating temperature
|
-20℃〜50℃（Can customize -40℃〜55℃）
|
|
Storage temperature
|
-40℃〜60℃
|
|
Waterproof
|
IP65（IP67 Optional）
|
