Quick Details
-
Filling Accuracy:
-
±0.1%
-
Voltage:
-
Customizable
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Honor Machine
-
Dimension(L*W*H):
-
Customizable
-
Weight:
-
3500 KG
-
Product name:
-
Water bottling machine
-
Capacity:
-
500-18000BPH
-
Function:
-
Filling Labeling Packing
-
Suitable bottle:
-
PET/Glass bottle
-
Bottle size:
-
0.1-2L
-
Machine material:
-
SUS304/316
-
Filling Liquid:
-
Mineral / Pure Water
-
Filling system:
-
Graviity filling water valve
-
Control system:
-
PLC (SIEMENS)
-
After-sales Service Provided:
-
2 years
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
±0.1%
-
Voltage:
-
Customizable
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Honor Machine
-
Dimension(L*W*H):
-
Customizable
-
Weight:
-
3500 KG
-
Product name:
-
Water bottling machine
-
Capacity:
-
500-18000BPH
-
Function:
-
Filling Labeling Packing
-
Suitable bottle:
-
PET/Glass bottle
-
Bottle size:
-
0.1-2L
-
Machine material:
-
SUS304/316
-
Filling Liquid:
-
Mineral / Pure Water
-
Filling system:
-
Graviity filling water valve
-
Control system:
-
PLC (SIEMENS)
-
After-sales Service Provided:
-
2 years
Product Description
High Quality Pure Water Liquid Bottling Filling Installations
This machine is mainly used for the filling of pure water, mineral water and other non-gas and sugar-free beverages in plastic bottles. It is an integrated equipment for washing, filling and sealing.
Capability character:
It adopts hanging type air conveyor to make change bottle model more convenient, faster and cleaner. the main machine adopts advanced PLC control technology, the key electric elements adopt international famous products or according to customer's customized.
Different filling capacities
8-8-3 Bottle Water Filling Line Capacity:1000-2000 bottles per hour.
14-12-5 Bottle Water Filling Line Capacity:2000-4000 bottles per hour.
18-18-6 Bottle Water Filling Line Capacity:5000-8000 bottles per hour.
24-24-8 Bottle Water Filling Line Capacity:8000-12000 bottles per hour.
32-32-10 Bottle Water Filling Line Capacity:12000-15000 bottles per hour.
40-40-12 Bottle Water Filling Line Capacity:18000-20000 bottles per hour.
Specification
|
Model
|
CGF8-8-3
|
CGF14-12-5
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-10
|
CGF40-40-10
|
|||||
|
Capacity(500ml/bottle/h)
|
1000-2000
|
2000-4000
|
5000-8000
|
8000-12000
|
12000-15000
|
15000-20000
|
|||||
|
Suitable bottle shape
|
Round bottle or square bottle
|
|
|
|
|
|
|||||
|
Bottle diameter(mm)
|
￠49-￠116
|
|
|
|
|
|
|||||
|
Bottle height(mm)
|
160-320
|
|
|
|
|
|
|||||
|
Compressed air pressure(MPa)
|
0.2-0.8
|
|
|
|
|
|
|||||
|
Washing medium
|
Pure water
|
|
|
|
|
|
|||||
|
Washing water pressure(MPa)
|
>0.06MPa
≤0.2MPa |
|
|
|
|
|
|||||
|
Total power(kw)
|
3.8
|
4.5
|
4.8
|
5.5
|
7
|
8.2
|
|||||
|
Overall dimensions(mm)
|
2200*1600*1800
|
2400*1880*2000
|
2800*2200*2300
|
3050*2400*2300
|
3800*2600*2500
|
4000*3150*2500
|
|||||
|
Weight(kg)
|
2880
|
3050
|
4300
|
6400
|
7450
|
8550
|
|||||
Details Images
1, Water Treatment System
Simple operation / Less maintenance / Lower power co
sumption
Water treatment system refers to the measures taken to make the water quality meet certain use standards. The physical characteristics of water, such as temperature, color, transparency, odor and taste, are filtered or treated so that water can be used directly for drinking or other purposes.

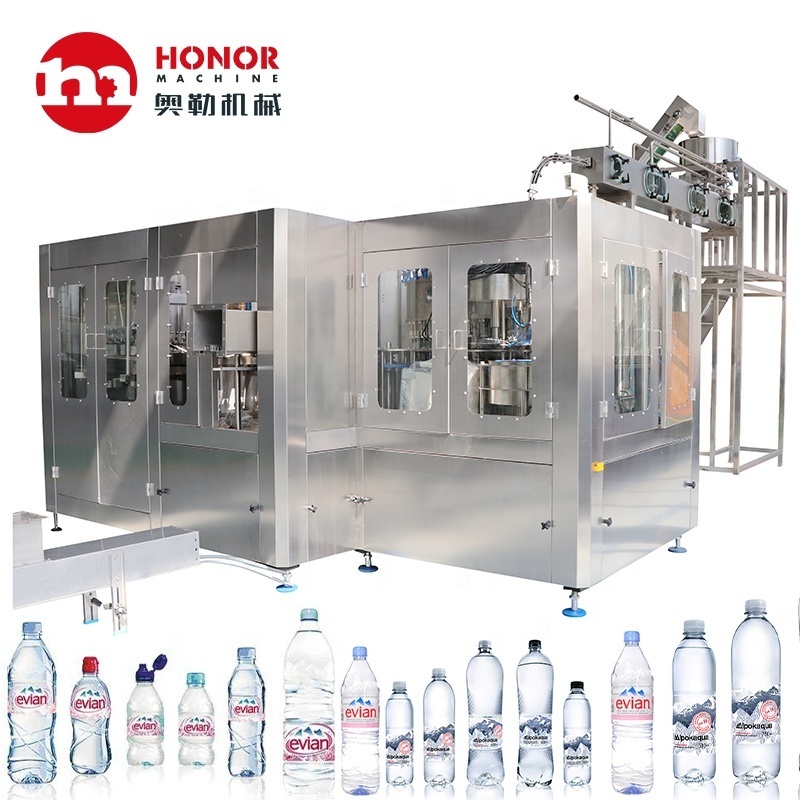

2,Washing Filling Capping 3-in-1 Machine
This machine is mainly used for the filling of pure water, mineral water and other non-gas and sugar-free beverages in plastic bottles. It is an integrated equipment for washing, filling and sealing.
3,Labeling & Packing Machine
As customer request and market demand ,we provide the suitable solution for the final product package ,
We have various kinds of options .Labeling machine have the PVC sleeve label ,BOPP hot glue label,Adhesive stick label ,Wet glue label ,and packing machine have the film shrink machine and carton box package.
4,Bottle Blowing Machine
1)Excellent Mechanical Strength, impact-resisting, and non-craking.
2)Bottle mouth and thread are of precise measurement.
3)Plastic Bottle's safe thread can be molding directly.
4)The size and weight of the product can calculate and design clearly and meet the requirement of the design without any deviation.
5)The surface of the bottle mouth, neck and the body is good luster and smoothness, the standard of bottle body is unity.
6)The joint seam on the bottle body is smooth, no scrap rubber.
Turnkey Solution
We are not only a filling equipment manufacturer, but also design and build factories, equipment layout, circuit layout and equipment operation schemes. Our equipment is designed carefully, easy to use and easy to manage. Whether you need a machine or a complete filling and packaging system, we have rich experience to ensure the successful completion of your project.
