Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
sanhe
-
Model Number:
-
LiY-Z
-
Rated voltage:
-
300/500v, 900v
-
Product name:
-
Stranded wire LiY-Z 2 x 1.50 mm
-
Color:
-
Red and white
-
Standard:
-
VDE
-
Certificate:
-
ISO9001
-
Conductor:
-
Copper Core
-
Insulation:
-
PVC
-
Package:
-
100m/roll
-
Durable years:
-
50 years
-
Sample:
-
free
Quick Details
-
Application:
-
indoor use
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
sanhe
-
Model Number:
-
LiY-Z
-
Rated voltage:
-
300/500v, 900v
-
Product name:
-
Stranded wire LiY-Z 2 x 1.50 mm
-
Color:
-
Red and white
-
Standard:
-
VDE
-
Certificate:
-
ISO9001
-
Conductor:
-
Copper Core
-
Insulation:
-
PVC
-
Package:
-
100m/roll
-
Durable years:
-
50 years
-
Sample:
-
free

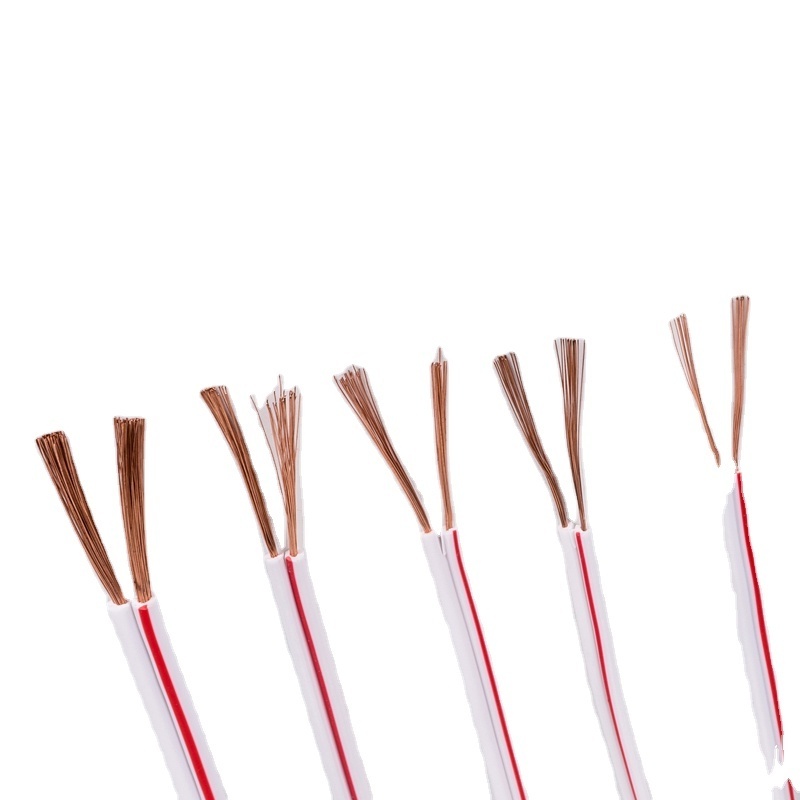

Stranded wire LiY-Z 2 x 1.50 mm LED Cable Twin Wire Black/Red 2-Core Speaker cable / twin strand transparent
PVC insulated twin wire, flexible, at a very low mechanical stress. Two wires flat next to each other and through the insulation covering connected to each other. Suitable for the internal wiring of electronic components
Technical data
| Cable type | LiY-Z | |
|---|---|---|
| No. of leads | 2 x | |
| Cross section (each core) | 1.50 mm² | |
| Cross section | 2 x 1.50 mm² | |
| Features | Flat , Flexible | |
| Width | 5.9 mm | |
| Height | 2.6 mm | |
| Colour | White | |
| Content | Sold per metre | |
| Nominal voltage | 900 V | |
| Test voltage | 2500 V | |
| Packaged | No | |
| Sold per metre | Yes | |
| Halogen-free | No | |
| Manufacturer part # | 49900185 | |
| Insulation material | PVC | |
| Insulation | PVC mixture | |
| Core layout | Copper wire, blank | |
| Core layout | 30 x 0.25 mm | |
| RoHS-compliant | Yes | |
| Min. temperature range (flexible installation) | -5 °C | |
| Max. temperature range (flexible installation) | +70 °C | |
| Min. temperature range (fixed installation) | -20 °C | |
| Max. temperature range (fixed installation) | +70 °C | |
| Type | LiY-Z | |
| Product type | Strand |
