Quick Details
-
Use:
-
welding
-
Transformer power:
-
75 kav
-
Primary voltage:
-
380 v 50 HZ
-
welding thickness:
-
0.5+0.5 mm
-
Max welding thickness:
-
4.0+4.0 mm
-
Secondary adjusted series:
-
CNC
-
Full welding speed:
-
120 times/s
-
Weight:
-
350 KG
-
Dimension:
-
1500mm x 570mm x 1900mm
-
material size:
-
1000mm x 1000mm x 3mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United States, France, Germany
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Meirun
-
Weight (KG):
-
500
-
Use:
-
welding
-
Transformer power:
-
75 kav
-
Primary voltage:
-
380 v 50 HZ
-
welding thickness:
-
0.5+0.5 mm
-
Max welding thickness:
-
4.0+4.0 mm
-
Secondary adjusted series:
-
CNC
-
Full welding speed:
-
120 times/s
-
Weight:
-
350 KG
-
Dimension:
-
1500mm x 570mm x 1900mm
-
material size:
-
1000mm x 1000mm x 3mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United States, France, Germany
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Product Description

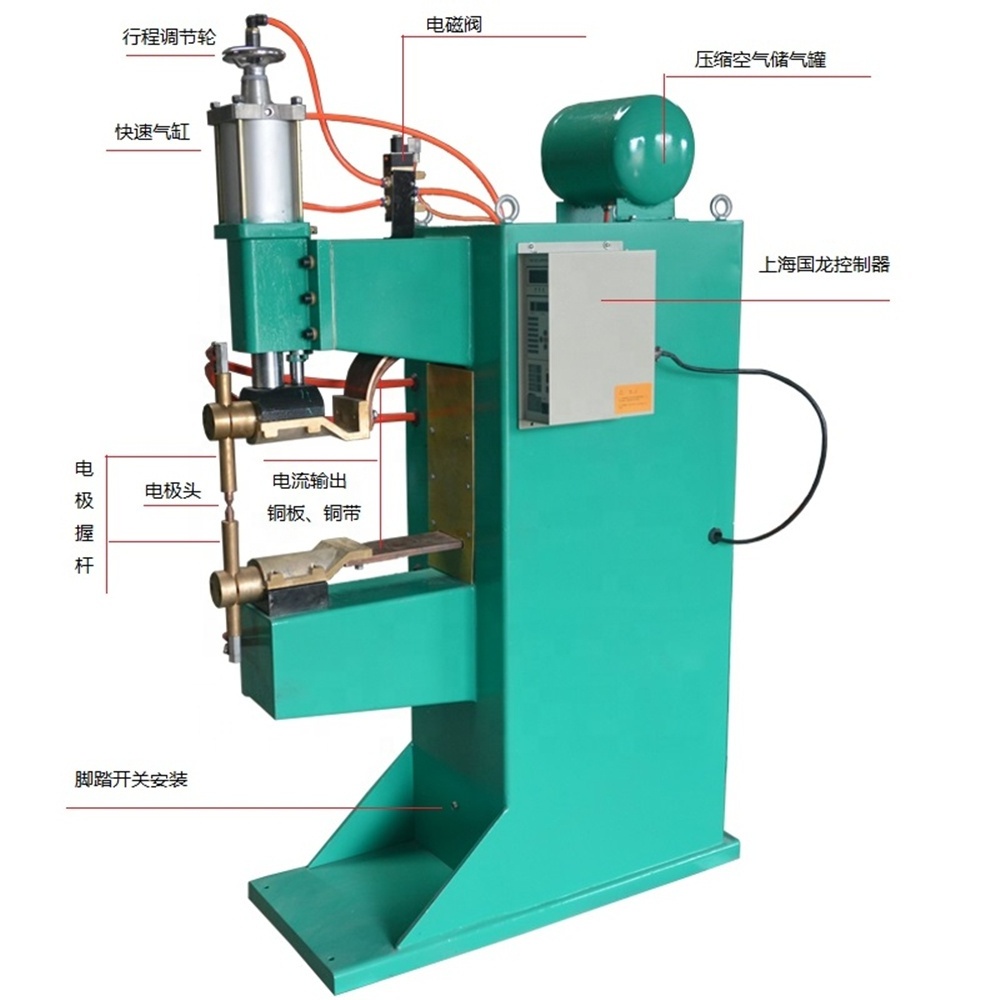

Spot welding machine/Portable spot welding machine
The gas pressure spot welding/projection welding machine is disigned and manufactured by our own factory,Hebei meirun, which is a
kind of pneumatic compression semi-automatic welding equipment with automatic control function.The electrode pressure and working
range can be adjusted arbitrarily in the range of setting.
kind of pneumatic compression semi-automatic welding equipment with automatic control function.The electrode pressure and working
range can be adjusted arbitrarily in the range of setting.
Specification
|
Item
|
DNQ25
|
DNQ40
|
DNQ63
|
DNQ75
|
DNQ100
|
|
Transformer power
|
25kav
|
40kav
|
60kav
|
75kav
|
100kav
|
|
Voltage
|
380V 50HZ
|
380V 50HZ
|
380V 50HZ
|
380V 50HZ
|
380V 50HZ
|
|
Welding thickness
|
2+2mm--4+4mm
|
2+2mm--5+5mm
|
2+2mm--6+6mm
|
3+3mm--8+8mm
|
4+4mm--10+10mm
|
|
Welding speed
|
120times/s
|
120times/s
|
120times/s
|
120times/s
|
120times/s
|
|
Weight
|
220KG
|
230KG
|
250KG
|
260KG
|
350KG
|
|
Dimension
|
0.98*0.36*1.65cm
|
0.98*0.36*1.65cm
|
0.98*0.36*1.65cm
|
0.98*0.36*1.65cm
|
1.1*0.41*1.8cm
|
|
Arm length
|
40cm
|
40cm
|
40cm
|
45cm
|
45cm
|
Spot welding machine Characteristics
The solder joints can be guaranteed to have enough welding strength. The machine is equipped with high performance, high reliability TCW-33EIII resistance welding controller, which can achieve the welding procedures of pre-pressing, pressing, pre-heating, welding, tempering, maintenance and stop. We can choose single point or continuous spot welding according to the work need. Compared with similar products, it has the advantages of simple operation, high output power, high welding speed and low equipment failure rate to meet the various needs of users.
The solder joints can be guaranteed to have enough welding strength. The machine is equipped with high performance, high reliability TCW-33EIII resistance welding controller, which can achieve the welding procedures of pre-pressing, pressing, pre-heating, welding, tempering, maintenance and stop. We can choose single point or continuous spot welding according to the work need. Compared with similar products, it has the advantages of simple operation, high output power, high welding speed and low equipment failure rate to meet the various needs of users.
Packing & Delivery
Packing:wooden pallet and plastic package in the container or pack per customer's request
Delivery: Delivery within 15 days after receiving 70% of balance payment.
Delivery: Delivery within 15 days after receiving 70% of balance payment.
