Quick Details
-
Brand Name:
-
XUNWEI
-
Model Number:
-
XW-IES8GP2GF-SFP
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
8 port 10/100/1000M +2 port SFP industrial POE Switch
-
PoE power:
-
each port 15W/25W/30W
-
Input Voltage:
-
DC 48-57V
-
Device Performance:
-
Surge 6KV, ESD 15KV
-
PoE Protocol:
-
IEEE802.3af/IEEE802.3at
-
Throughput:
-
14.88Mpps
-
Packet Buffer:
-
2M
-
MAC Address:
-
4K
-
Jumbo Frame:
-
4096bytes
-
Transfer Mode:
-
Store and forward
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
56Gbps
-
Brand Name:
-
XUNWEI
-
Model Number:
-
XW-IES8GP2GF-SFP
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
8 port 10/100/1000M +2 port SFP industrial POE Switch
-
PoE power:
-
each port 15W/25W/30W
-
Input Voltage:
-
DC 48-57V
-
Device Performance:
-
Surge 6KV, ESD 15KV
-
PoE Protocol:
-
IEEE802.3af/IEEE802.3at
-
Throughput:
-
14.88Mpps
-
Packet Buffer:
-
2M
-
MAC Address:
-
4K
-
Jumbo Frame:
-
4096bytes
-
Transfer Mode:
-
Store and forward

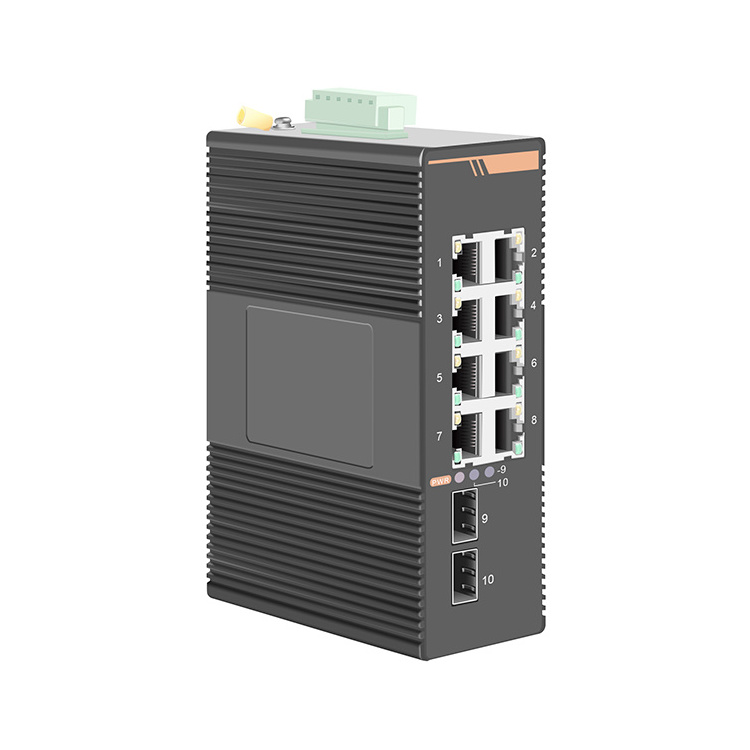

Unmanaged Industrial POE Switch 12vdc 24vdc 48vdc input
8 port 10/100/1000Mbps POE + 2 Port Fiber SFP.
support 12vdc , 24vdc, 48vdc input
Features
•Data control: support 802.3x full duplex flow control, support network storm suppression
•Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)
•Support IPv6, static routing
•Support DHCP Server, DHCP replay, Qos
•Multicast management: Support IGMP Snooping ，IGMP V1/V2/V3；Support GMRP , static multicast
•Support port-based VLAN Port, IEEE 802.1Q VLAN and GVRP protocol, simple network planning
•QoS: Support QoS (IEEE 802.1p/1Q) and TOS/ Diffserv to increase network stability
•Security management: support ACL access control list, support 802.1x, support user classification management
• Management function: support Web, SNMP management mode
•Monitoring maintenance: support port mirroring, interface status monitoring, log management
•Alarm function: support power supply, port, abnormal state relay output
•Support 1588 clock protocal
Jacky Zhang
Tel/ WhatsApp : +86 13530642251
Email/Skype : jacky110922@163.com
Specification
|
Model
|
XW-IES8GP2GF-SFP
|
|
Product Name
|
8 port 10/100/1000M +2 port SFP industrial POE Switch
|
|
PoE power
|
each port 15W/25W/30W
|
|
Uplink Ports
|
2 port SFP slot 1G
|
|
Input Voltage
|
DC 12~57V
|
|
Device Performance
|
Surge 6KV, ESD 15KV
|
|
PoE Protocol
|
IEEE802.3af/IEEE802.3at
|
|
Throughput
|
14.88Mpps
|
|
Packet Buffer
|
2M
|
|
MAC Address
|
4K
|
|
Jumbo Frame
|
4096bytes
|
|
Fiber Media
|
Multi-mode: 2km; Single-mode: 20/40/60/80KM
|
|
Switching Capacity
|
20Gbps
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100,000 hours
|
|
Protection
|
Lightening protection, IP40 protection
|
|
Power Supply
|
Input Voltage: DC12-57V /Terminal block
|
|
Shell
|
IP40 protect grade, metal shell
|
|
Installation
|
DIN-Rail or Wall mounts
|
|
Warranty
|
5 years
|
|
Network Protocols
|
IEEE802.3
IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3z |
|
PoE Specification
|
PoE ports: 1-8 ports support PoE
Each PoE Port: Max. 30 Watts Power Pin Assignment:1/2+;3/6- Output Voltage: DC48V |
|
Industry Standard
|
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
|
Working Environment
|
Working temperature: -40~75℃ ;
Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
|
Weight & Size
|
ProductDimension(L*W*H): 160*135*44mm
PackageDimension(L*W*H): 242* 207*86mm N.W: 0.73kg G.W: 0.90kg |
