Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Henan, China
-
Voltage:
-
1100w
-
Dimensions(L*W*H):
-
2100*1060*1160mm
-
Weight:
-
300 KG
-

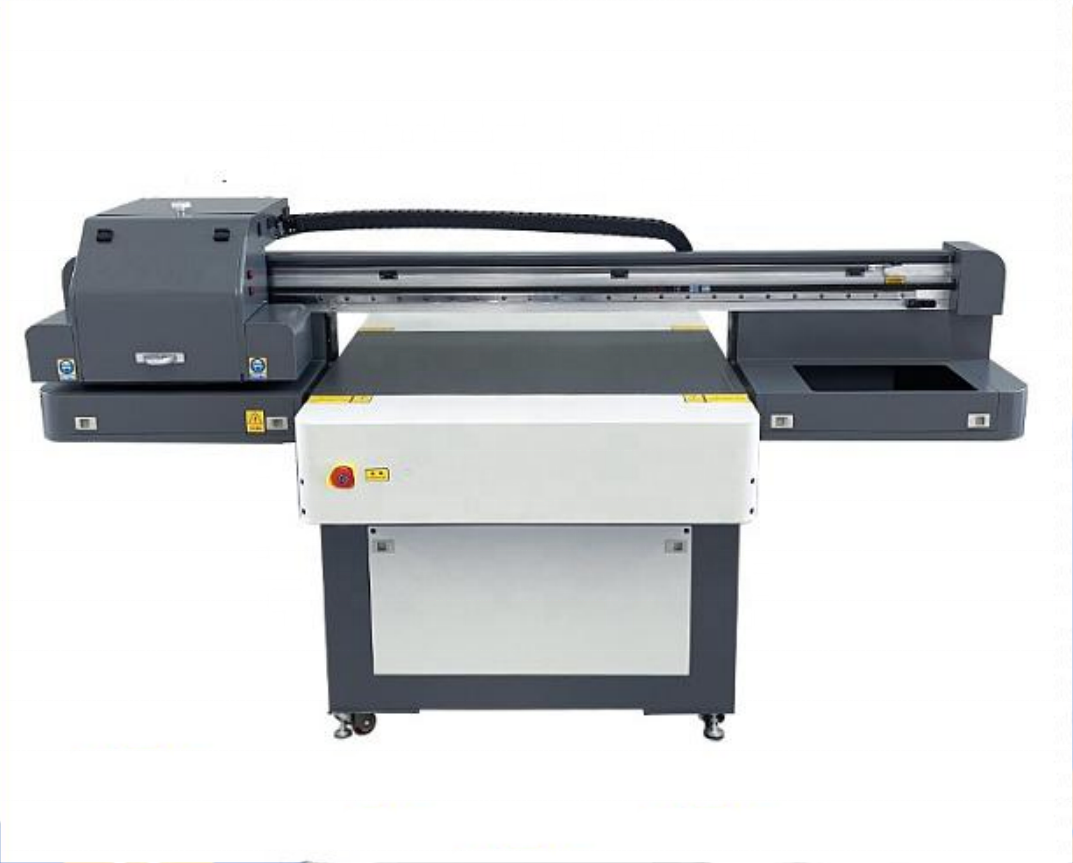

Product name:
-
UV Flatbed Printer
-
Printing material:
-
Plastic Product
-
Ink:
-
UV Curing Ink
-
Application:
-
Indoor Outdoor Advertisement
-
Printing Size:
-
60x90cm
-
Print speed:
-
3~12sqm/h
-
Print head:
-
DX5/DX7/XP600
-
media thickness:
-
0~100mm
-
power:
-
1100w
-
Print Interface:
-
USD2.0
Quick Details
-
Print Dimension:
-
900mm*600mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Henan, China
-
Voltage:
-
1100w
-
Dimensions(L*W*H):
-
2100*1060*1160mm
-
Weight:
-
300 KG
-
Product name:
-
UV Flatbed Printer
-
Printing material:
-
Plastic Product
-
Ink:
-
UV Curing Ink
-
Application:
-
Indoor Outdoor Advertisement
-
Printing Size:
-
60x90cm
-
Print speed:
-
3~12sqm/h
-
Print head:
-
DX5/DX7/XP600
-
media thickness:
-
0~100mm
-
power:
-
1100w
-
Print Interface:
-
USD2.0
Product Description
With white ink stir function and ink level alarm function
CMYK white and varnish optional for glossy surface and high quality printing
Taiwan HIWIN guide rail for stable working
900mm WIDTH is much faster than 600mm width printer
Can print flat materials or cylindrical objects, such as pen, bottle and cup, etc
Specification
|
Product Model
|
YC6090
|
|
Printhead Technology
|
Drop-on demand piezo electric
|
|
Printhead Control
|
Printhead voltage is software adjustable
|
|
Printhead Type
|
Epson DX5/DX7/XP600/TX800/i3200, Ricoh GH2220, Toshiba CE4
|
|
Printhead Number
|
2/3/4/6/8
|
|
Ink Characteristics
|
UV Curing Ink
|
|
Ink Reservoirs
|
Refillable on the fly while printing/1000ml per color
|
|
LED UV Lamp
|
More than 20000-hours life
|
|
Color Control
|
ICC based color, curves and density adjustment
|
|
Printhead Arrangement
|
CMYKW varnish optional 3- 12sqm/h
|
|
Cleaning System
|
Positive Pressure Cleaning
|
|
Guide Rail
|
Taiwan HIWIN
|
|
Working Table
|
Vacuum Sucking
|
|
Printing Size
|
900*600mm
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Widely use
Details Images
Epson Print Head (Rioch head or Toshiba head optional)
Equiped with Japanese Epson DX5/DX7/XP600/TX800/i3200, Ricoh GH2220 or Toshiba CE4 heads, which provides a high- precision
printing.
printing.
Ink Characteristics
Use non-VOC environmental UV curing ink, clear and perfect printing quality, no bias color, no mixing color, waterproof, wear-
resistant. Color with CMYK white and varnish optional for glossy surface printing.
resistant. Color with CMYK white and varnish optional for glossy surface printing.
High Precision Aluminum Beam
Equipped with self-researched cold drawn and high-strength aluminum beam, applied ultra strength aerial aluminum material, it
ensures printing precision and stability, guarantee the perfect output
ensures printing precision and stability, guarantee the perfect output
Product Parameter
|
Print Interface
|
USB2.0
|
|
Media Thickness
|
0- 100mm, higher can be customized
|
|
Print Resolution
|
360*1080dpi, 720*720dpi, 720*1080dpi,720*1440dpi
|
|
Life of Printed Image
|
3 years(outdoor), 10years(indoor)
|
|
File Format
|
TIFF,JPEG,Postscript3,EPS,PDF etc.
|
|
RIP Software
|
UltraPrint/ Photoprint optional
|
|
Power Supply
|
220V 50/60Hz(10%) > 15A
|
|
Power
|
1100W
|
|
Operation Environment
|
Temperature 20 to 28℃ , Humidity 40% to 60%
|
|
Machine Dimension
|
2100*1060*1160mm
|
|
Packing Dimension
|
2435*1220*1340mm
|
|
Weight
|
300kg
|
|
Warranty
|
12 Months exclude the consumables
|
Why Choose Us
Pre-sale service
We provide 7*12 hours online consultation
service, you just need to provide your requirements, we will give a solution service within 24 hours.
service, you just need to provide your requirements, we will give a solution service within 24 hours.
After-sale service
During the transaction, follow up your order in
time to ensure the safe arrival of the goods, and provide user manuals, video support, installation guides, and spare parts
replacement services, etc.
time to ensure the safe arrival of the goods, and provide user manuals, video support, installation guides, and spare parts
replacement services, etc.
FAQ
Q: Do you test all your goods before delivery?
A: Yes, we have 100% testing before delivery to ensure product integrity.
Q: What are your packaging conditions?
A: Usually, we pack the machine in a wooden case with aluminum foil bags inside to prevent moisture.
Q: What is your delivery time?
A: Our delivery time is 7-20 working days after receiving full payment or deposit. The specific delivery time depends on the
product and the order quantity.
Q: Will you supply OEM or ODM orders?
A: Yes, we are, if you have any advice please let us know that we could make a unique machine for you only, including but not
limited to machine color.
Q: How much tax should we pay?
A: For details, please consult your local customs or import agent, thank you.
A: Yes, we have 100% testing before delivery to ensure product integrity.
Q: What are your packaging conditions?
A: Usually, we pack the machine in a wooden case with aluminum foil bags inside to prevent moisture.
Q: What is your delivery time?
A: Our delivery time is 7-20 working days after receiving full payment or deposit. The specific delivery time depends on the
product and the order quantity.
Q: Will you supply OEM or ODM orders?
A: Yes, we are, if you have any advice please let us know that we could make a unique machine for you only, including but not
limited to machine color.
Q: How much tax should we pay?
A: For details, please consult your local customs or import agent, thank you.
