high speed PP PE single wall double wall corrugated pipe manufacture extruder making machine DWC corrugated pipe making machine

high speed PP PE single wall double wall corrugated pipe manufacture extruder making machine DWC corrugated pipe making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

≥5 Sets

US $18000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Screw Speed (rpm):: 1500 rpm

Place of Origin:: Shandong, China

Brand Name:: TS

Voltage:: customerized

Dimension(L*W*H):: 15X2.2X1.4m

Power (kW):: 30

Weight:: 3.5 ton

After-sales Service Provided:: Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

pipe diameter:: 5-110mm 75-250mm

cooling mode:: wind and water cooling

machine type:: single wall corrugated pipe machine

payment:: TT, LC

port:: Qingdao port

Motor brand:: SIENEMS

delivery time:: 60 days

quality:: test before delivery

whatsapp/wechat:: 0086-13969891023

Certification:: CE, ISO

Quick Details

Screw Design:: Single-screw

Screw L/D Ratio:: 30:1

Screw diameter (mm):: 65 mm

Screw Speed (rpm):: 1500 rpm

Place of Origin:: Shandong, China

Brand Name:: TS

Voltage:: customerized

Dimension(L*W*H):: 15X2.2X1.4m

Power (kW):: 30

Weight:: 3.5 ton

After-sales Service Provided:: Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

pipe diameter:: 5-110mm 75-250mm

cooling mode:: wind and water cooling

machine type:: single wall corrugated pipe machine

payment:: TT, LC

port:: Qingdao port

Motor brand:: SIENEMS

delivery time:: 60 days

quality:: test before delivery

whatsapp/wechat:: 0086-13969891023

Certification:: CE, ISO

Products Description

plastic single wall corrugated pipe machine

1. plastic single wall corrugated pipe machine can produce PP PE PA PVC EAV corrugated pipe which is widely used as wire harness protective pipe for car and machine tool

2. equip with vacuum pump, the machine can produce washing machine pipe, air conditioner pipe, hookah pipe, wash basin drain pipe,medical pipe

3.mold transmission by gear

4. water cooling, wind cooling

Contact information

WhatsApp 0086 13969891023

WeChat 0086 13969891023

Email: salerjessica@tongsanextruder.com

Product Paramenters

model	pipe diameter	extruder model	motor powder	production speed	mold pairs	optional vacumm pump
SJDBGZ-14	5-14mm	SJ-45	11kw	6-8m/min	42
SJDBGZ-32	10-32mm	SJ-50	15kw	5-12m/min	50	1.5kw
SJDBGZ-50	16-50mm	SJ-65	30kw	3-10m/min	50	2.2kw
SJDBGZ-63	16-63mm	SJ-65	30kw	3-10m/min	50	2.2kw
SJDBGZ-110	32-110mm	SJ-75	37kw	3-6m/min	72	5.5kw

Details Images

single screw extruder.

1. product material: PP PE PA EVA PVC garanule

2. extruder model: SJ45 SJ50 SJ65 SJ75

3. motor power: 11-37kw

4. motor brand: SIEMENS

5. inverter brand: ABB

6. temperature controller brand: OMRON

7. heater material: cast aluminum

8. vacuum loading device: included

9. hopper dryer: include

double screw extruder

1. product material: PVC powder
2. extruder model: SJSZ51/105 SJMS65/132

3. motor power: 22kw 37kw
4. motor brand: SIEMENS
5. inverter brand: ABB
6. temperature controller brand: OMRON
7. heater material: ceramic
8. material loading device: included

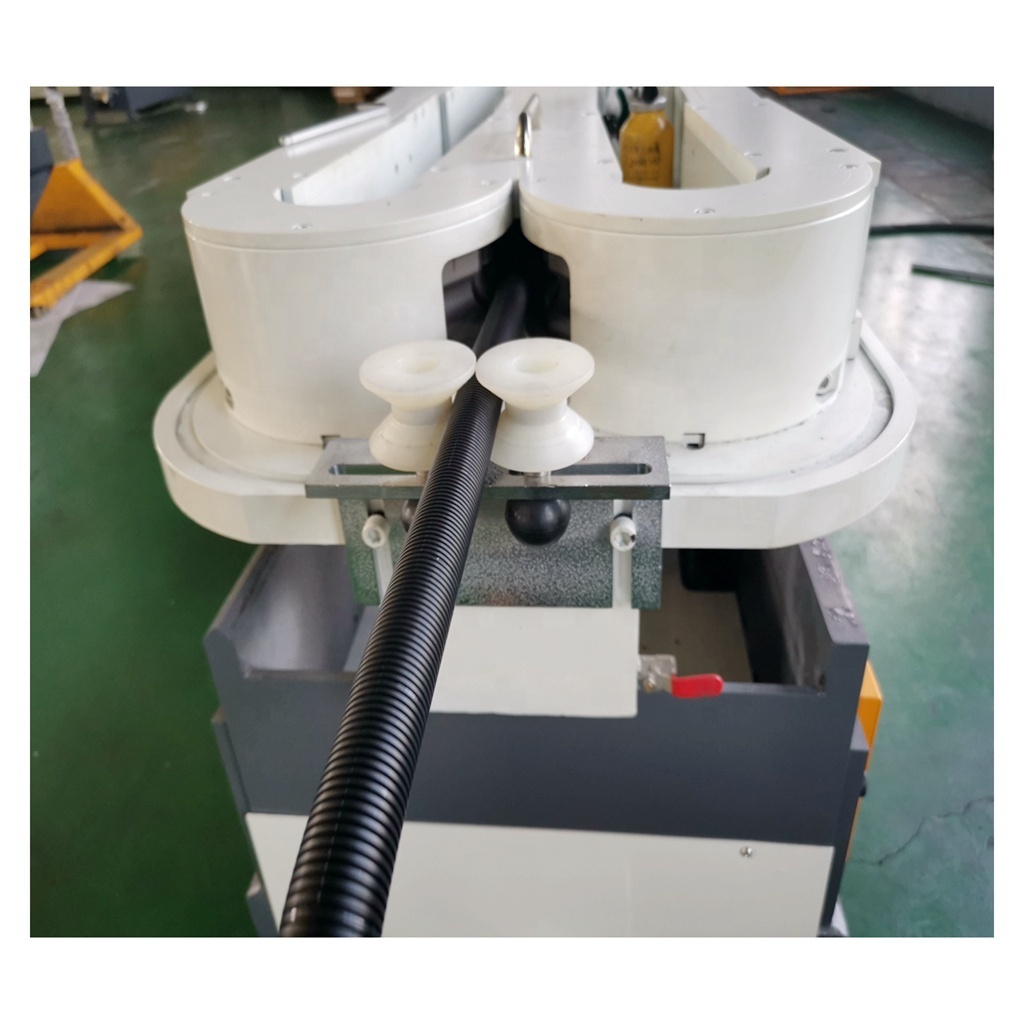

forming machine

1. forming type: blowing

2. cooling type: water and wind

3. fan quantity: 4 sets or 6 sets or 8 sets

4.lubricant: oil

5. transmission: gear

6. application: wire harness protective pipe for car or machine tool

vacuum forming machine

1. forming type: vacuum

2. cooling type: water and wind
3. fan quantity: 4 sets or 6 sets or 8 sets

4. lubricant: oil
5. transmission: gear
6. application: washing machine pipe, wash basin pipe, air conditioner pipe, hookah pipe, medical pipe

20-30m/min high speed forming machine

1. speed: 20-30m/min

2. forming type: blowing

3. vacuum optional

4. cooling type: water
5. lubricant: oil by automatally
6. transmission: gear

7. mold cavity: single or double

corrugated pipe mold

1. mould quantity: 52 or 72 pairs or customerized

2. cavity: single/double/three cacity or customerized
3. mould making: our own Germany CNC machine

4. mould material: 40Cr

vacuum corrugated pipe mould

there shall be have vacuum mold optional according to product shape such as shisha pipe, air conditioner pipe....

double working position winder

winding station: double station
winding method: automatic winding 50m/roll,100m/roll

double working position winding machine

meter counting: automatic counting
winding meters: customized

PLC system is optional

SIEMENS PLC system to control whole line

steel wire feeding device is optional

entrance steel wire to pipe inside

Product Discription

wire harness protective pipe

widely used as protective pipe for car, machine tool

washing basin drinage pipe

used in washing room under wash basin as drinage pipe

washing machine drainage pipe

used on washing machine as drinage pipe

shisha pipe

used as shisha pipe, water smoke pipe

wind pipe

used as plastic shrinkable wind pipe

spiral corrugated pipe/COD pipe

used as spiral corrugated pipe or COD pipe as communication

HDPE PVC double wall corrugated pipe machine

PVC PE double wall corrugated pipe machine/extrusion line adopts extruding and forming process, has the features of reliable quality and high efficiency.

Compared with other plastic pipe wall structure, double wall corrugated pipe has excellent wall
structure design, its low weight reach the lower production cost and improve the market competitiveness. It is widely used in various field instead of concrete pipe and iron pipes, because it has excellent features such as: easy connected and accessories installed, and quality reliable

machine model	SBG250	SBG110	SBG160	PVC-SBG250
pipe diameter mm	75-250	40-110	50-160	75-250
extruder screw	single	single	single	double
extruder model	SJ90/30+SJ75/30	SJ65/33+SJ65/30	SJ75/30+SJ65/30	SJ65/132
mould block pairs	48	72	72	48
mould block material	Aluminum	iron	iron	aluminum
