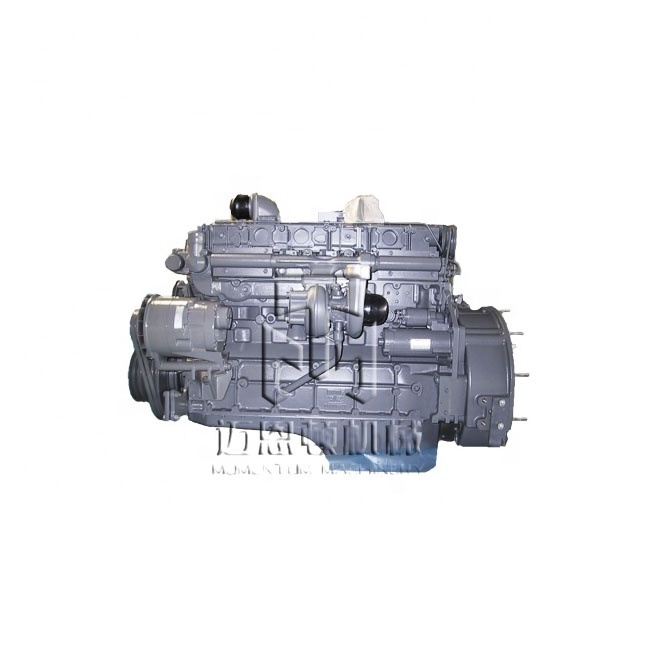

BF6M1013 engine
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Dimension(L*W*H):
-
1300*950*700mm
-
Weight:
-
600, 600kg
-
Rated power/speed:
-
220kw/2300rpm
-
Engine Model:
-
BF6M1013 ENGINE
-
Cooling System:
-
Water-coolled
-
Quality:
-
100% Tested and original
-
MOQ:
-
1 Piece
-
Packing:
-
Neutral Packing or Original Packing
-
Certification:
-
CE Certificate
-
Part name:
-
BF6M1013 engine
Quick Details
-
Displacement:
-
7.1L
-
Emission Standard:
-
Euro 2
-
Power:
-
118KW, 220kw, 220kw/2300rpm
-
Place of Origin:
-
Liaoning, China
-
Dimension(L*W*H):
-
1300*950*700mm
-
Weight:
-
600, 600kg
-
Rated power/speed:
-
220kw/2300rpm
-
Engine Model:
-
BF6M1013 ENGINE
-
Cooling System:
-
Water-coolled
-
Quality:
-
100% Tested and original
-
MOQ:
-
1 Piece
-
Packing:
-
Neutral Packing or Original Packing
-
Certification:
-
CE Certificate
-
Part name:
-
BF6M1013 engine
|
|
BF4M1013FC
|
BF6M1013EC
|
BF6M1013ECP
|
BF6M1013FC
|
|
Rated Power(kw)
|
129
|
174
|
195
|
206
|
|
Rated Speed(kw)
|
2300
|
2300
|
2300
|
2300
|
|
Max torque/speed(N.m/r/min)
|
577/1400
|
854/1400
|
954/1400
|
1050/1400
|
|
Aspiration
|
Turbocharged inter-cooled
|
Turbocharged inter-cooled
|
Turbocharged inter-cooled
|
Turbocharged inter-cooled
|
|
No. of cylinders
|
4
|
6
|
6
|
6
|
|
Configuration
|
In-line
|
In-line
|
In-line
|
In-line
|
|
Injection system
|
Mechanical unit pump
|
Mechanical unit pump
|
Mechanical unit pump
|
Mechanical unit pump
|
|
Displacement(L)
|
4.764
|
7.146
|
7.146
|
7.146
|
|
Bore(mm)
|
108
|
108
|
108
|
108
|
|
Stroke(mm)
|
130
|
130
|
130
|
130
|
|
Compression ratio
|
18
|
18
|
18
|
18
|
|
Rotation(looking at flywheel)
|
Counter clock wise
|
Counter clock wise
|
Counter clock wise
|
Counter clock wise
|
STANDARD CONFIGURATION
1. Oil filter 2. Diesel filter
3. 12V/24V starting motor
4. 24V/28V charged generator 5. Preheating Plug 12V/24V
6. Engine supports
7. SAE Flywheel and housing
8. Electronic/Mechanical Speed Governor
9. Measure tool &Sensors, electrical accessories
10. Diesel engine paint (gray)
OPTIONAL CONFIGURATION
1. Air cleaner 2. Exhaust muffler
3. Hydraulic oil radiator
4. Gear driven hydraulic pump 5. Belt driven air compressor
6. Cooling Fan
7. Water tank
8. All kinds of meter of diesel engine
1. Oil filter 2. Diesel filter
3. 12V/24V starting motor
4. 24V/28V charged generator 5. Preheating Plug 12V/24V
6. Engine supports
7. SAE Flywheel and housing
8. Electronic/Mechanical Speed Governor
9. Measure tool &Sensors, electrical accessories
10. Diesel engine paint (gray)
OPTIONAL CONFIGURATION
1. Air cleaner 2. Exhaust muffler
3. Hydraulic oil radiator
4. Gear driven hydraulic pump 5. Belt driven air compressor
6. Cooling Fan
7. Water tank
8. All kinds of meter of diesel engine
Q1: How can i be sure the parts will fit my machine?
A:Please provide correct part number , engine serial number or machine serial number or any number on parts' body. Or provide themeasure of products.
Q2: What is your payment Terms?
A: We accept T/T, Western Union, Alibaba Trade Assurance Payment Order, and Paypal.
Q2: What is your delivery time?
A: Some products instock.Delivery time 1-2 working days.Others products 4-7 working days roughly.
Q2: What is your delivery time?
A: Some products instock.Delivery time 1-2 working days.Others products 4-7 working days roughly.
Q4: What is the warranty of your products?
A: Usually, 3 months warranty for spare parts.
A: Usually, 3 months warranty for spare parts.
Electronic components without warranty.
Engine assy warranty 6 months .
Q5: If I am not satisfied with your products, can I return goods?
A: we will offer exchange or refund service for the defect of our products during the warranty time. Please contact us before you return the defective products.The buyers will pay for the cost of return shipments, and we will responsible for sending the replaced or repaired items back to buyers.
Q5: If I am not satisfied with your products, can I return goods?
A: we will offer exchange or refund service for the defect of our products during the warranty time. Please contact us before you return the defective products.The buyers will pay for the cost of return shipments, and we will responsible for sending the replaced or repaired items back to buyers.
