Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FYQD
-
Model Number:
-
micro pulling gas spring
-
product name:
-
small tension gas strut micro pulling gas spring
-
load type:
-
Gas/Compression
-
material:
-
45#steel
-
rod:
-
nitriding or chromate
-
tube:
-
painted
-
gas inside:
-
nitrogen
-
package:
-
1 pc/polybag,100-150pcs/carton
-
warranty:
-
2 years
-
manufacturing experience:
-
over 20 years since 2000
Quick Details
-
Style:
-
Cylinder
-
Material:
-
Steel
-
Usage:
-
Train seat tension gas strut
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FYQD
-
Model Number:
-
micro pulling gas spring
-
product name:
-
small tension gas strut micro pulling gas spring
-
load type:
-
Gas/Compression
-
material:
-
45#steel
-
rod:
-
nitriding or chromate
-
tube:
-
painted
-
gas inside:
-
nitrogen
-
package:
-
1 pc/polybag,100-150pcs/carton
-
warranty:
-
2 years
-
manufacturing experience:
-
over 20 years since 2000

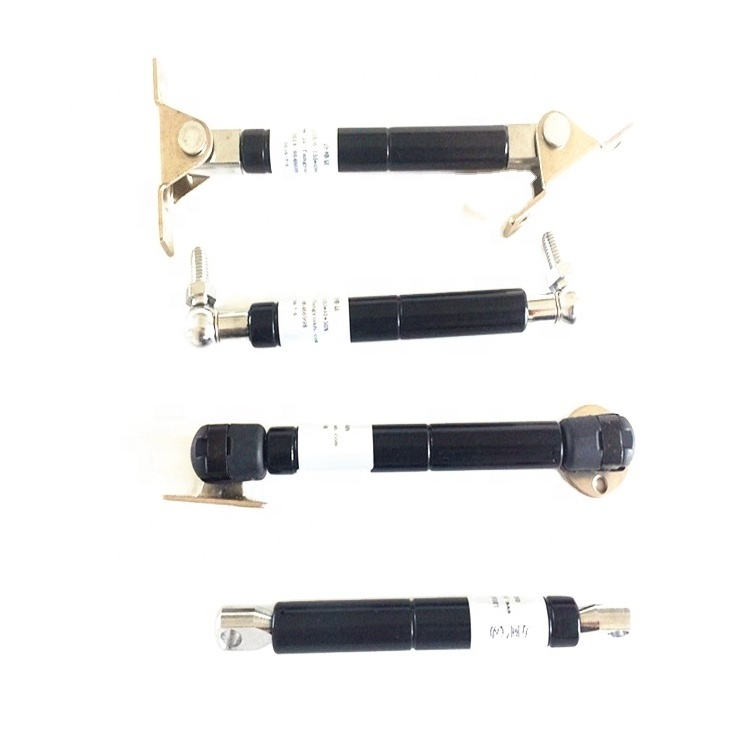

small tension gas strut micro pulling gas spring
1 Brief introduction of tension gas spring
A traction gas spring produces a controlled pulling force for use in a number of assemblies. A traction gas spring often provides help in raising something, where the item is helped back into place and kept in its end position.
What is the difference between a compression gas spring and a traction gas spring?
The start position of a traction gas spring's piston rod is unloaded in the cylinder. The speed of the piston rod for standard traction gas springs cannot be adjusted and is designated as fast. Traction gas springs from Sodemann are without damping, as the cylinder does not contain oil, but a special grease - for lubrication of the pressure seals.
2 detailed product information
|
Name |
small tension gas strut micro pulling gas spring |
|
Quality |
1.100,000 times -passed fatigue test |
|
2.materail test by UTS |
|
|
3.Passed ISO9001 International Quality System Certification |
|
|
Use |
Automobile;Auto,car;Furniture;Machines,mechanical equipment; Boat,container,etc. |
|
Material |
steel/45, Piston nitriding or chromate , tube painted |
|
Color |
black |
|
Connector |
ball connector/metal eye/clevis and so on |
|
Advantage |
1.pass 100,000 times fatigue times |
|
2.Temperature:-30 to 80 degree normal ,-55 to 200 degree as demand |
|
|
3.Competivite price |
|
|
4.Fast delivery time:3000 pcs 7 days |
|
|
The size can be made according the customer requirment. |
For The micro pulling gas spring ,length (extend ) can be at least 150mm,(Compressed can be 120mm, stroke 30mm) ,force min can be 50N any other size we can do as your demand.
Manufacturing specification for reference:
|
Type |
Tube diameter |
Piston rod diameter |
stroke |
Force(N) |
|
Tension gas spring |
12 |
4 |
20-50 |
40-200 |
|
15 |
6 |
50-150 |
40-300 |
|
|
18 |
6/8 |
50-250 |
100-600 |
|
|
19 |
6/8 |
50-250 |
100-600 |
|
|
22 |
8/10 |
50-350 |
100-800 |
|
|
25 |
10/12 |
50-450 |
100-1000 |
|
|
27 |
10/12 |
50-700 |
100-1200 |
|
|
28 |
12/14 |
50-700 |
100-1500 |
joint choose:
Gas spring applications
1), car trunk, bus luggage, automotive accessories yacht, Toyota parts
2), furniture, wall-bed, sofa, chair armrest, cabinet, fitness equipment
3), industrial equipment, heavy machinery, agriculture machinery, textile machinery and so on
OEM are welcome
we are glad to receive your design drawing or detailed size,then we will give you a full information.
