HR17-160/3P
-
Product name:
-

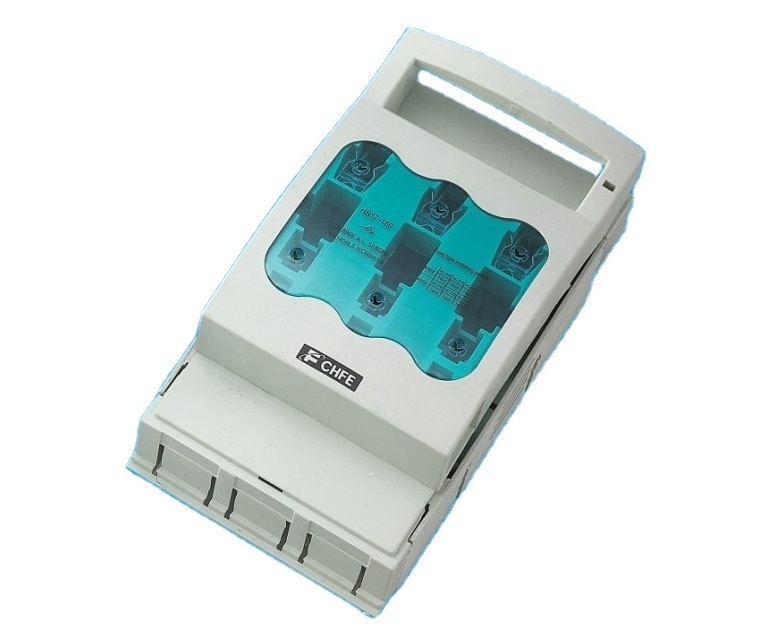

HR17-160 3P 690VAC 160A NH00 NT00 Fuse Switch Disconnector
-
Rated Current:
-
160A
-
Rated Voltage:
-
500/690V
-
Applicable fuse link size:
-
NH00 NT00
-
Standard:
-
IEC/EN60269 GB13539
-
Material:
-
PA66 case, Copper contacts
-
Color:
-
White and Green
Quick Details
-
Breaking Capacity:
-
High
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FCHFE
-
Model Number:
-
HR17-160/3P
-
Product name:
-
HR17-160 3P 690VAC 160A NH00 NT00 Fuse Switch Disconnector
-
Rated Current:
-
160A
-
Rated Voltage:
-
500/690V
-
Applicable fuse link size:
-
NH00 NT00
-
Standard:
-
IEC/EN60269 GB13539
-
Material:
-
PA66 case, Copper contacts
-
Color:
-
White and Green
HR17-160/3P NH00 NT00 Fuse Switch Disconnector
HR17-250/3P NH1 NT1 Fuse Switch Disconnector
HR17-400/3P NH2 NT2 Fuse Switch Disconnector
HR17-160/3P NH00 NT00 Fuse Switch Disconnector Description
This series isolating switch(hereafter refers to as switch) is suitable for the electric installation of AC 50Hz,rated working voltage to 690V,rated operating current to 630A.
It is mainly used in the electric circuit with high short-circuit current and the circuit of electric motor for the power switch,the isolator and the emergency switch. The rated short time with stand current(effective value) of this switch is 3.2kA-1S.
This switch conforms to national standard GB14048 and the international electrical committee IEC60947 standard.
|
Model |
Rated current (A) |
For fuse link |
Items Code |
|
HR17-160/3P |
4, 6, 10, 16, 20, 15, 32, 35, 40, 50, 63, 80, 100, 125, 160 |
NT00 |
197316 |
|
HR17-250/3P |
80, 100, 125, 160, 200, 224, 250 |
NT1 |
197325 |
|
HR17-400/3P |
80, 100, 125, 160, 200, 224, 250, 300, 315, 355, 400 |
NT2 |
197340 |
|
HR17-630/3P |
315, 355, 400, 425, 500, 630 |
NT3 |
197363 |
HR17-160/3P NH00 NT00 Fuse Switch Disconnector Dimension
| Model |
Rated voltage (V) |
Rated current (A) |
Dimension (mm) | |||||||
| A | B | C | D | E | a | b |
ø c |
|||
| HR17-160 |
AC400/690 |
160 |
106 | 200 | 83 | 205 | 33 | 66 | 25 | 7 |
| HR17-250 |
AC400/690 |
250 |
185 | 247 | 11 | 295 | 57 | 114 | 50 | 11 |
| HR17-400 |
AC400/690 |
400 | 210 | 290 | 125 | 340 | 65 | 130 | 50 | 11 |
| HR17-630 |
AC400/690 |
630 | 256 | 300 | 145 | 360 | 81 | 162 | 50 | 11 |
| HR17-800 |
AC400/690 |
800 | 256 | 300 | 145 | 360 | 81 | 162 | 50 | 11 |
Packing: We offer OEM Trade mark
a. Packing as your requirements;
b. CHFE Packing for export : Single piece of fuse links are packed in small inner boxes, then all the small inner boxes packed in one standard exported carton.
1. Free Samples are available;
2. ODM , OEM ;
3. Products fully inspected before shippment;
4 . We can do CO, Form F ect.
5 . Terms of trade: EXW, FOB, CIF, CFR ect.
6 . We Guarantee that
a. 45 days warranty from the date you receiving our fuse. Please contact us before returning defective ones.
b. We shall offer replacement, reshipment, or refunds to make sure you are 100% satisfied if:
1) You receive a defective or wrong item; 2) Item is not as described.
