1, Single,double or four compressors combination unit available,high efficiency.
2, Auto alarm for overload and accidental failure.
3, Using electrical control security design to ensure the safety of your personnels.
4, Microcomputer chip control panel with light-touch switch to start the machine with one press.Visual and easy to operate, easy
to maintain.
5, All kinds of models alternative.
6, Panasonic compressor.(Can be customized as customer requests)
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
3PH~220V/380/415V~50HZ/60HZ
-
Dimension(L*W*H):
-
2000*1780*1100mm
-
Weight:
-
830 KG
-
Power:
-
20HP
-
Working Temperature Range:
-
5-35℃
-
Pump Power:
-
5HP
-
Chilled Water Flow:
-
400L/min
-
Pipe In/Out Calibre:
-
1/2x4FT
-
Cooling Water Capacity:
-
55kw/43786Kcal/h
-
Compressor Type:
-
vortex
-
Refrigerant:
-
R22/R407/R403a
-
Comdenser Water Pipe Dia.:
-
1inch/1.5inch/2inch/2.5inch
-
Lifetime:
-
5 Years
-
Application:
-
Industrial Refrigeration/water cooling/milk juice cooling
Quick Details
-
Condition:
-
Brand New
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zillion
-
Voltage:
-
3PH~220V/380/415V~50HZ/60HZ
-
Dimension(L*W*H):
-
2000*1780*1100mm
-
Weight:
-
830 KG
-
Power:
-
20HP
-
Working Temperature Range:
-
5-35℃
-
Pump Power:
-
5HP
-
Chilled Water Flow:
-
400L/min
-
Pipe In/Out Calibre:
-
1/2x4FT
-
Cooling Water Capacity:
-
55kw/43786Kcal/h
-
Compressor Type:
-
vortex
-
Refrigerant:
-
R22/R407/R403a
-
Comdenser Water Pipe Dia.:
-
1inch/1.5inch/2inch/2.5inch
-
Lifetime:
-
5 Years
-
Application:
-
Industrial Refrigeration/water cooling/milk juice cooling
Product Paramenters
|

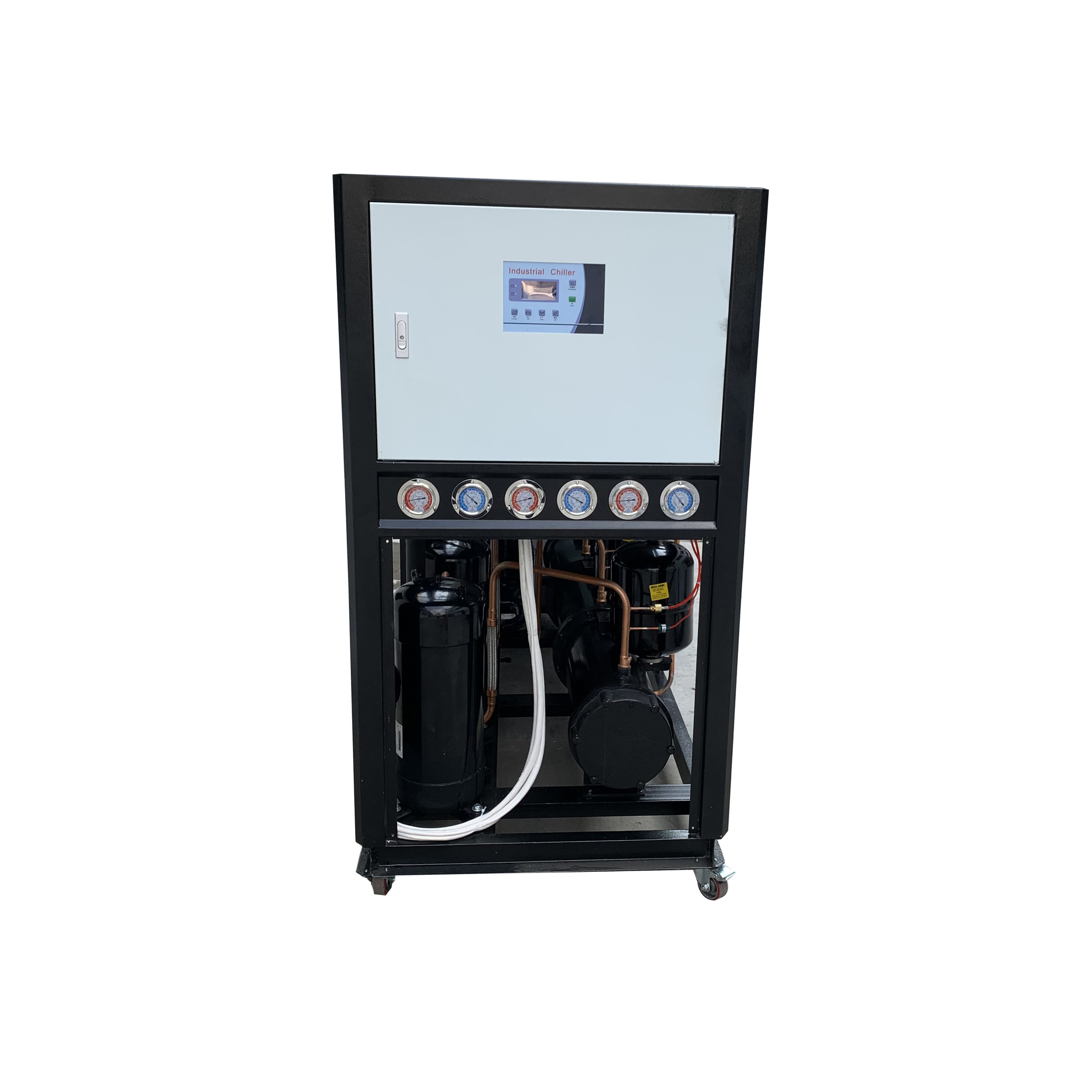

Zillion Industry Water-Cooled Chiller Specifiactions
|
|
|
|
|
||||
|
Model
|
Cooling capacity(KW)
|
Compressor Power（HP）
|
Cooling Water Flow(m³/h)
|
Tank Volume(L)
|
||||
|
ZL-SL05
|
16
|
5
|
2.5
|
65
|
||||
|
ZL-SL10
|
32
|
5*2
|
5.1
|
156
|
||||
|
ZL-SL15
|
48
|
5*3
|
7.7
|
234
|
||||
|
ZL-SL20
|
64
|
5*4
|
10
|
313
|
||||
|
ZL-SL30
|
96
|
10*3
|
15.4
|
365
|
||||
|
ZL-SL40
|
128
|
10*4
|
20.3
|
443
|
||||
|
ZL-SL50
|
160
|
12.5*5
|
25.5
|
443
|
||||
|
Notice：
（*Subject to change without notice*）
|
1. The cooling capacity is based on: chilled water inlet and outlet temperature 12°C/7°C, cooling inlet and outlet water
temperature 30°C/35°C |
|
|
|
||||
|
|
2. Working range: chilled water temperature range: 5°C to 35°C; chilled water inlet and outlet temperature difference: 3°C to 8°C.
Use in an environment where the condensing temperature is not higher than 35℃ |
|
|
|
||||
|
|
3. Unit conversion: 1kw cooling capacity=860kcal/hr 1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1 Metric horsepower (HP)=0.735KW
|
|
|
|
||||
Products Description
Zillion Water-Cooled Water Chiller Unique Feature
Details Images
Microcomputer LCD Controller
①Display the cold water outlet and set temperature;
②Easy to operate, water temperature can be precisely controlled
②Easy to operate, water temperature can be precisely controlled
Famous Band Compressors
Using famous brand DAIKIN / PANASONIC compressor
Lower noise
Less vibration,
High efficient and energy saving. .
Lower noise
Less vibration,
High efficient and energy saving. .
Chint Electric
①Selected German Bayer materials
②Reliable and durable quality of switch sockets
③Leading technology and high-end design effectively protect electrical appliances
②Reliable and durable quality of switch sockets
③Leading technology and high-end design effectively protect electrical appliances
Enlarge Water Tank
Pressure Gauge
Pure Copper Tube
