Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
VANTEK
-
Model Number:
-
TPD325C5
-
Speed:
-
1500RPM
-
Weight:
-
2500 Kg
-
Product Name:
-

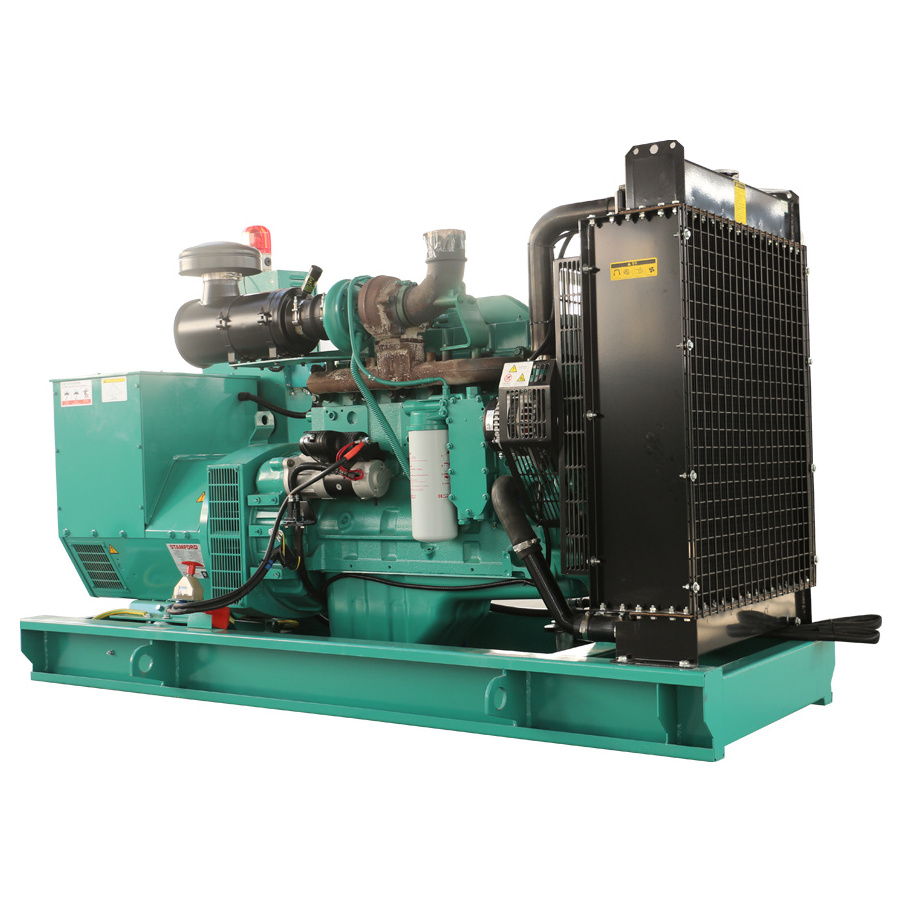

Electronic 68L/h Fuel consumption QSM11-G2 engine diesel generator
-
Open type size:
-
2085x785x1550 MM
-
Engine model:
-
QSM11-G2
-
engine brand:
-
with cummins engine
-
Fuel consumption:
-
68L/h
-
Governor:
-
Electronic
-
Cooling method:
-
Water cooled by radiator
-
Alternator brand:
-
Stamford Marathon
-
Power factor:
-
0.8 (lagging)
-
Phase and wire:
-
3 phase 4 wires
-
Certification:
-
ce
Quick Details
-
Rated Voltage:
-
400/230V (Can be adjusted)
-
Frequency:
-
50HZ
-
Warranty:
-
13 months
-
Place of Origin:
-
China
-
Brand Name:
-
VANTEK
-
Model Number:
-
TPD325C5
-
Speed:
-
1500RPM
-
Weight:
-
2500 Kg
-
Product Name:
-
Electronic 68L/h Fuel consumption QSM11-G2 engine diesel generator
-
Open type size:
-
2085x785x1550 MM
-
Engine model:
-
QSM11-G2
-
engine brand:
-
with cummins engine
-
Fuel consumption:
-
68L/h
-
Governor:
-
Electronic
-
Cooling method:
-
Water cooled by radiator
-
Alternator brand:
-
Stamford Marathon
-
Power factor:
-
0.8 (lagging)
-
Phase and wire:
-
3 phase 4 wires
-
Certification:
-
ce
|
DIESEL GENERATOR DATA:
|
|
|
|
|||
|
Generator set model
|
: TPD325C5
|
|
|
|||
|
Generator rated power
|
: 260KW/325KVA
|
|
|
|||
|
Generator standby power
|
: 286KW/358KVA
|
|
|
|||
|
Rated frequency
|
: 50HZ
|
|
|
|||
|
Rated voltage
|
: 400/230V (Can be adjusted)
|
|
|
|||
|
Rated speed
|
: 1500RPM
|
|
|
|||
|
Fuel consumption
|
: 68L/h
|
|
|
|||
|
Open type size
|
: 2915x1000x1700 MM
|
|
|
|||
|
Silent type size
|
: 4400x1350x2300 MM
|
|
|
|||
|
Open type weight
|
: 2500 Kg
|
|
|
|||
|
ENGINE DATA:
|
|
|
|
|||
|
Engine model:
|
: QSM11-G2
|
|
|
|||
|
Engine brand
|
: CUMMINS
|
|
|
|||
|
Engine rated power
|
: 292KW
|
|
|
|||
|
Engine standby power
|
: 321KW
|
|
|
|||
|
Engine speed
|
: 1500RPM
|
|
|
|||
|
Bore & Stroke
|
: 125 × 147 mm
|
|
|
|||
|
Displacement
|
: 10.8 L
|
|
|
|||
|
Compression ratio
|
: 17:1
|
|
|
|||
|
Type
|
: In line,6 cylinders,4 stroke
|
|
|
|||
|
Aspiration
|
: Turbocharged, Air-Air Intercooled
|
|
|
|||
|
Governor
|
: Electronic
|
|
|
|||
|
ALTERNATOR DATA:
|
|
|
|
|||
|
Alternator model
|
: HCI 444ES
|
MP-260-4
|
TP-280-4
|
|||
|
Alternator brand
|
: STAMFORD
|
MARATHON
|
TONTEK
|
|||
|
Rated power
|
: 260KW
|
260KW
|
280KW
|
|||
|
Frequency
|
: 50HZ
|
|
|
|||
|
Speed
|
: 1500RPM
|
|
|
|||
|
Voltage
|
: 400/230V (Can be adjusted)
|
|
|
|||
|
Power factor
|
: 0.8 (lagging)
|
|
|
|||
|
Phase and wire
|
: 3 phase 4 wires
|
|
|
|||
|
Excite type
|
: Single Bearing, Close coupled. Brushless, self-exciting,AVR
|
|
|
|||
|
Protection class
|
: IP23
|
|
|
|||
|
Insulation class
|
: H
|
|
|
|||
Q: What is the power range of your generator sets?
A: We can provide 10 KVA to 4000KVA, with a voltage range of 110V~15000V and frequencies of 50Hz and 60Hz.
Q: What is the lead time?
A: 7 working days against the 30%T/T deposit
Q:What is your MOQ?
A: Our MOQ is 1 unit
Q:What about your warranty?
A:13 months or 1000 working hours,whichever comes first.
Q: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment or Irrevocable LC at sight.
Q: What is your company's production capacity?
A:150 Sets per month
Q: Can you supply OEM service
A: YES
