Quick Details
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Dimension(L*W*H):
-
1130*600*1130mm
-
Year:
-
2021
-
Weight (KG):
-
280 KG
-
After-sales Service Provided:
-
long life technocial support
-
Laser generator brand:
-
Reci/JPT/Raycus optional
-
Laser Power:
-
100w/200w/1000w/1500w/2000w optional
-
Cleaning gun:
-
HANWEI laser cleaning head
-
Water chiller:
-
HANLI water chiller
-
Control system:
-
HANWEI controller
-
Certification:
-
ce
Quick Details
-
Power:
-
200W, 100W, 500W, 1500W, 1000W, 2000W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
RECI
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Dimension(L*W*H):
-
1130*600*1130mm
-
Year:
-
2021
-
Weight (KG):
-
280 KG
-
After-sales Service Provided:
-
long life technocial support
-
Laser generator brand:
-
Reci/JPT/Raycus optional
-
Laser Power:
-
100w/200w/1000w/1500w/2000w optional
-
Cleaning gun:
-
HANWEI laser cleaning head
-
Water chiller:
-
HANLI water chiller
-
Control system:
-
HANWEI controller
-
Certification:
-
ce
Product Description
Advantage:
1) No consumables, no chemical pollution, no noise, energy-saving power
2) It can clear the pollution particles below the nanometer level and have high cleanliness
3) Fiber optic transmission can move operation, can clean the area which is not easy to reach
4) Laser cleaning can solve the problems that traditional cleaning methods can not solve
8) Wide application materials scope
2) It can clear the pollution particles below the nanometer level and have high cleanliness
3) Fiber optic transmission can move operation, can clean the area which is not easy to reach
4) Laser cleaning can solve the problems that traditional cleaning methods can not solve
8) Wide application materials scope
Specification
|
NO
|
Description
|
Parameter
|
|
1
|
Model
|
AKQ-1000 / AKQ-1500 / AKQ-2000
|
|
2
|
Laser Power
|
1000W / 1500W / 2000W
|
|
3
|
Laser Type
|
JPT / Raycus / Reci
|
|
4
|
Central wavelength
|
1064nm
|
|
5
|
Line length
|
10M
|
|
6
|
Cleaning efficiency
|
12 ㎡/h
|
|
7
|
Support language
|
English, Chinese, Japanese, Korean, Russian, Spanish
|
|
8
|
Cooling Type
|
Water cooling
|
|
9
|
Average Power (W), Max
|
1000W
|
|
10
|
Average Power (W), Output Range(If adjustable)
|
0-1000
|
|
11
|
Pulse-Frequency (KHz),Range
|
20-200
|
|
12
|
Scanning Width (mm)
|
10-80
|
|
13
|
Expected Focal Distance(mm)
|
160mm
|
|
14
|
Input Power
|
380V/220V, 50/60H
|
|
15
|
Dimensions
|
1240mm×620mm×1060mm
|
|
16
|
Weight
|
240KG
|

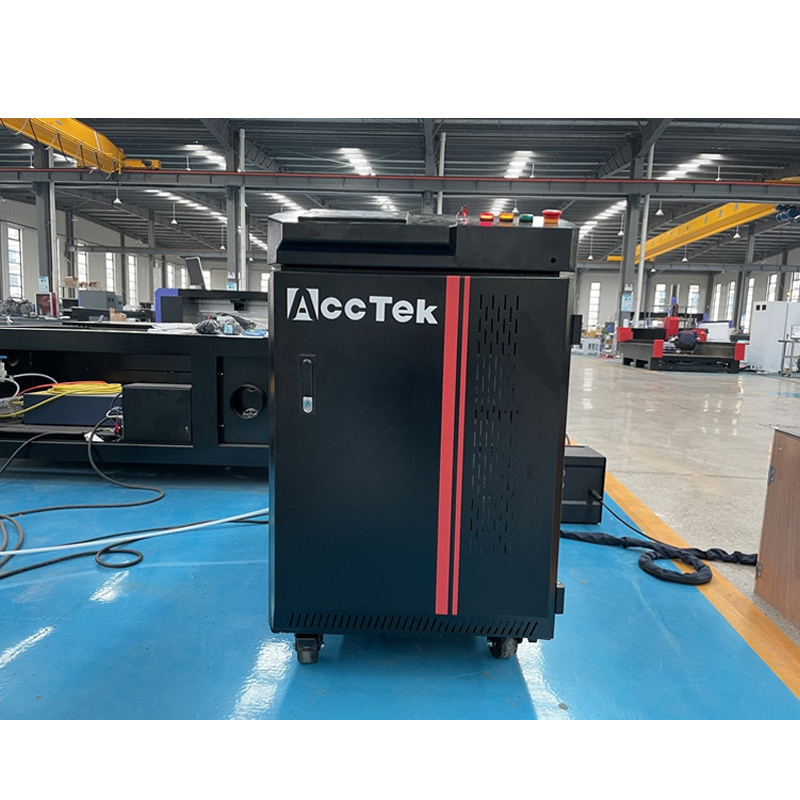

Machine Details
Samples
Application:
* Surface oil, stains, dirt cleaning
* Metal surface rust removal
* Rubber mold residue cleaning
* Welding surface / spray surface pretreatment
* Surface coating, coating removal
* Surface paint removal, paint stripping treatment
* Stone surface dust and attachment removal
* Metal surface rust removal
* Rubber mold residue cleaning
* Welding surface / spray surface pretreatment
* Surface coating, coating removal
* Surface paint removal, paint stripping treatment
* Stone surface dust and attachment removal
Warranty&Service
Warranty
1)
3 years quality guaranty of whole machine
, Life long free technical support and engineers visit, 1.5 Year for Core Components
2)Free training course at our plant.
3)We will provide the consumable parts at an agency price when you need replacement.
4)24 hours on line service each day, free technical support.
5)Machine has been adjusted before delivery.
2)Free training course at our plant.
3)We will provide the consumable parts at an agency price when you need replacement.
4)24 hours on line service each day, free technical support.
5)Machine has been adjusted before delivery.
