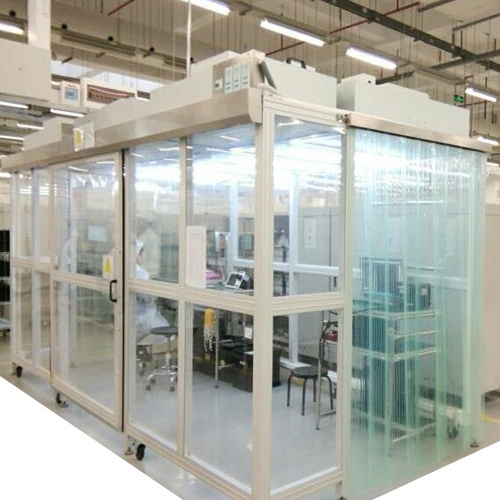

3000*3000m Class 1000 Sot wall Portable cleanroom with anti-static air curtain

Clean Room Modular is a kind of clean room, it can quickly improve the cleanliness of the equipment. Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.

Configuration:

Parameter		Softwall Clean Booth	Hardwall Clean Booth
Cleanliness		From Class 100 to Class 1000,000
External Dimension		As per requirement
FFU	Dimension	2'X4'
	Cabinet Material	Stainless Steel
	Power source	110V/60hz/av/dc, 220V/60HZ/AV/DC
HEPA Filter		H14 Hepa filter
Frame Material		Stainless Steel
Wall Material		Anti-static soft PVC wall 106~109Ω	Anti-static acrylic 106~109Ω
Lighting	Lamps	Available in LED and T5
Air condition	As per requirement	Available in constant temperature air conditioner/constant temperature and humidity conditioner

Besides above configuration, we can customized as required.

Technical Paremeters:

Model	Inner dimension	Number of	Air volume(m3/h)
	W * D * H (mm)	FFU
ALCS6 * 8	2000 * 3000 * 2400	6	6600
ALCS 8 * 12	2440 * 3660 * 2400	12	13200
ALCS 8 * 16	2450 * 4880 * 2400	16	17600
ALCS 8 * 20	2440 * 6100 * 2400	20	22000
ALCS6 * 8	2000 * 3000 * 2400	2	2200
ALCS 8 * 16	2440 * 4880 * 2400	4	4400
ALCS 12 * 16	3660 * 4880 * 2400	6	6600
ALCS 20 * 24	6100 * 7300 * 2400	12	13200
ALCS6 * 8	2000 * 3000 * 2400	1	1100
ALCS 8 * 16	2440 * 4880 * 2400	2	2200
ALCS 12 * 16	3660 * 4880 * 2400	4	4400
ALCS 20 * 24	6100 * 7300 * 2400	8	8800
ALCS16 * 24	4880 * 7300 * 2400	2	2200
ALCS18 * 30	5480 * 9150 * 2400	4	4400
ALCS20 * 42	6100 * 12800 * 2400	6	6600

Please contact with us for your best clean room solutions.

PRODUCT FEATURES:
Flexible assembly: Compared to the tradtitional clean booth it is easy to installation, cost effective with less investment and quick return, as it cost shorter construction period in the assembling frame by manufacturer.

Selected high quality material: import for the grind curtain and adjustable plastiv cup and universal wheel, convenience for installation and maintance.

Humanized structure: Compared to the clean bench it has the multi-function, which can be used as a unit or combined with another clean equipment together. Even you can assemble it on the production line to change dust-free production.

Flexibility: Less limitation or low requirements for the floor and spot situation, the iner space is enough to use and the frame canbe recycled

DESIGN INTO PRODUCTIO N :

DESIGN INTO PRODUCTIO N :

Following options are available

1. Pass box

2. Air shower

3. ULPA filter

4. Sticky mats

5. Barometer

6. Gowning area

7. Pressure different control device

8. Transparent/grid PVC curtain

9. Thermo-static and humid-static air conditioning system.

PROJECT REFERENCE1:

FACTORY PREINSTALLED, TESTED

SAFETY EXPORTED, EASYINSTALLATION

EQUIPPED WITH AIR CONDITIONING SYSTEM, LOW RUNNING COST

PROJECT REFERENCE2:

PROJECT REFERENCE3:

Factory testing (all the sets you ordered):

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.

Factory test include:

--appearance testing

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--noise testing

Advantages:

Own factory with competitive price

Automatic production line.

Nearly 20 years experience in cleanroom industry.

We are an expert in providing customized solutions.

Timely delivery with perfect quality.

Fortune 500 companies’ choice.

Have passed ISO9001.2008 certification.

WELOME TO CONTACT WITH US:)
