Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2021*695*1220MM
-
Machine Weight:
-
800 kg
-
Bucket capacity:
-
0.2CBM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Products Name:
-
Hysoon HD05 tracked mini dump truck
-
Engine:
-
Briggs&Stratton
-
Engien Power:
-
13HP
-
Fuel:
-
gasoline
-
Optional:
-
high-lifting device
-
operating method:
-
Joystick operation
-
Load capacity:
-
500kg
-
Hopper capacity:
-
0.2-0.31cbm
-
Usage:
-
home,garden,golf course,waste treatment plant
Quick Details
-
Engine Brand:
-
Briggs&Stratton
-
Power:
-
15.7 kw, 17.2 kw
-
Brand Name:
-
Hysoon
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2021*695*1220MM
-
Machine Weight:
-
800 kg
-
Bucket capacity:
-
0.2CBM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Products Name:
-
Hysoon HD05 tracked mini dump truck
-
Engine:
-
Briggs&Stratton
-
Engien Power:
-
13HP
-
Fuel:
-
gasoline
-
Optional:
-
high-lifting device
-
operating method:
-
Joystick operation
-
Load capacity:
-
500kg
-
Hopper capacity:
-
0.2-0.31cbm
-
Usage:
-
home,garden,golf course,waste treatment plant

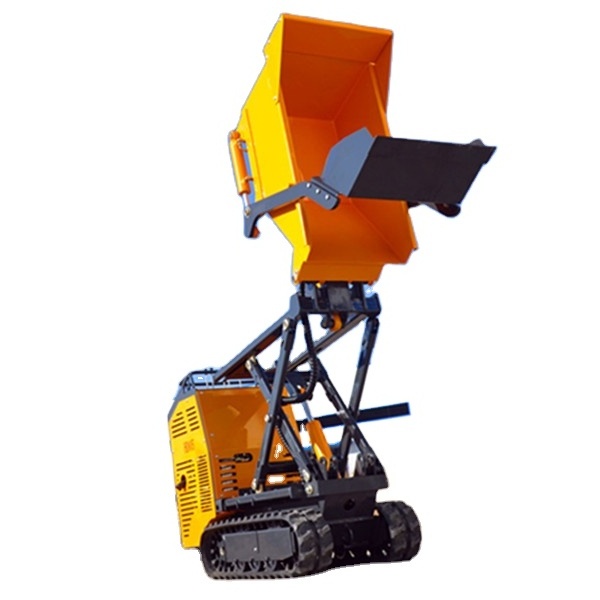

Hysoon HD05 tracked mini dump truck ,
small machine with strong power,
suitable for different working condition,such as home,garden,golf course,
waste treatment plant,small construction,road maintenance,mining.
Parameter for Hysoon HD05 tracked mini dump truck
| Engine (Briggs&Stratton) | Rated Power | 9.6Kw (13HP) |
| Rated Speed | 3000 rpm | |
| Fuel | gasoline | |
| Noise | <=80 | |
| Hydraulic Pressure | 16Mpa | |
| Flow Rate | 20L/min | |
| Hydraulic oil tank volume | 19.4L | |
| Load capacity | 500kg | |
| Hopper capacity | 0.31cbm | |
| Self-loading bucket capacity | 0.04cbm | |
| Speed | 0-3.5km/h | |
| Operating weight | 600kg or 800kg | |
| Total Height (H) | 1220mm |
| Max Lifting Height | 1719mm |
| Max Dump Height | 1447mm |
| Dump Angle | 57degree |
| Wheelbase | 515mm |
| Total Length without self-loading bucket | 2021mm |
| Total Length with self-loading bucket | 2421mm |
| Departure Angle | 10degree |
| Axles base | 862mm |
| Total Width | 695mm |
| Min Turning Radius R | 820mm |
Please check more detail pictures for the Hysoon HD05 tracked mini dump truck as below
The sample order for hd05 mini dumper will be packed by steel pallet,and delivery by LCL container;
For quantity order will be loaded into the container directly,and fasten well.
It can load 10sets Hysoon compact dumper per 20'container.
Taian Hysoon Machinery Co.,Ltd.
is the manufacture of the construction machinery.
We always focus on mini construction equipment,now have a series products.
And in the year 2015,Hysoon company will focus on to realize remote control on our proudcts
Wish there is chance to cooperate with you,for win-win.
Taian Hysoon Machinery Co.,Ltd. workshop overview
Taian Hysoon Machinery Co.,Ltd. Products Range
Tai'an Hysoon Machinery Co.Ltd have get through the ISO 9001 Certification
Hysoon loaders have get the CE Certificateion and GOST Certification,
for the mini skid steer loader HY380 and HY280,
skid steer loader HY700 and HY850,
mini loader HY200,
mini dumper FD350 and HD05 and HD10.
For further info about any Hysoon products,please do kindly contact
