Quick Details
-
Brand Name:
-
TAIWEI
-
Product Name:
-

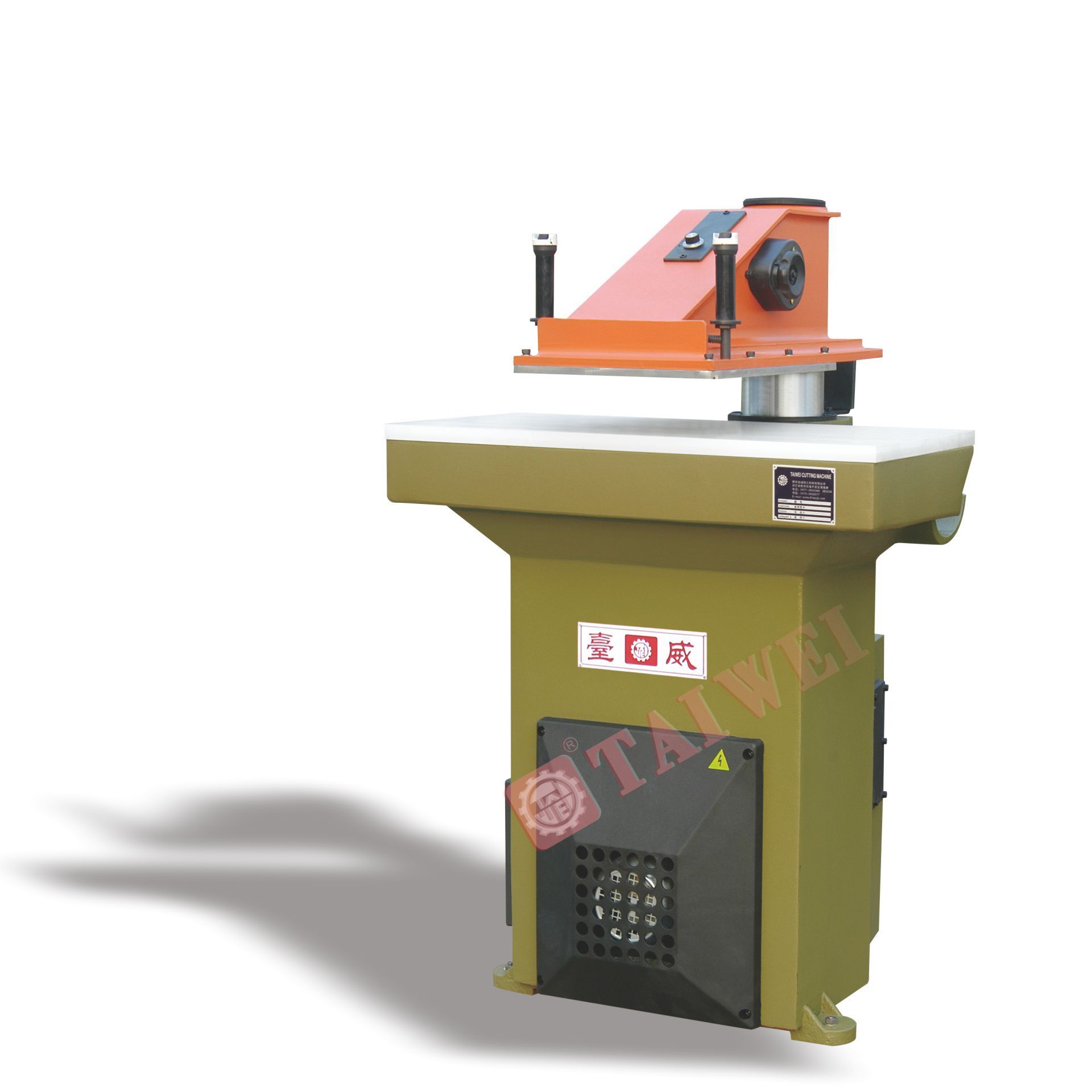

Clicker Press
-
Working Table:
-
900*430mm
-
Arm Width Size:
-
370mm
-
Maximum Cutting Force:
-
20Ton
-
Stroke Size:
-
90mm
-
Motor Power:
-
1Hp/0.75Kw
-
Motor:
-
220V/380V/50HZ/3Phases
-
Application:
-
Shoes ,Bags,Leather Goods,Gaskets,Bra Sponge,Pulled Flowers
-
After sales Service Provided:
-
Online service
-
Delivery time:
-
7-15 days
Quick Details
-
Weight (KG):
-
630
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TAIWEI
-
Product Name:
-
Clicker Press
-
Working Table:
-
900*430mm
-
Arm Width Size:
-
370mm
-
Maximum Cutting Force:
-
20Ton
-
Stroke Size:
-
90mm
-
Motor Power:
-
1Hp/0.75Kw
-
Motor:
-
220V/380V/50HZ/3Phases
-
Application:
-
Shoes ,Bags,Leather Goods,Gaskets,Bra Sponge,Pulled Flowers
-
After sales Service Provided:
-
Online service
-
Delivery time:
-
7-15 days
Products Description
Product use and characteristics
With a lower power consumption,providing a higher cuting speed
(0.75kw pump motor provides 22ton to 28ton cutting power)
* Automatic stroke end adjustment:no need to adjust cut power after changing die-cut height
Faster setting of height
Higher saving of leather,cutting time,boards
Firm machine body construction,easy operation
* Full safety for operators,higher reliability
(0.75kw pump motor provides 22ton to 28ton cutting power)
* Automatic stroke end adjustment:no need to adjust cut power after changing die-cut height
Faster setting of height
Higher saving of leather,cutting time,boards
Firm machine body construction,easy operation
* Full safety for operators,higher reliability
Main technical specifications
|
Model
|
TW-922(1+1)
|
TW-925(1+1)
|
TW-925L(1+1)
|
|
|
TW-922(3+1)
|
TW-925(3+1)
|
TW-925L(3+1)
|
|
Working Table Size（mm)
|
900 x 430
|
900 x 450
|
900 x 450
|
|
Swing Arm Width（mm)
|
370
|
370
|
500
|
|
Cutting Force（t）
|
22
|
25
|
25
|
|
Cutting Stroke（mm)
|
90
|
90
|
90
|
|
Motor Power（kW）
|
0.75（1HP）
|
0.75（1HP）
|
0.75（1HP）
|
|
Net Weight（with oil）(kg)
|
630
|
880
|
900
|
|
Gross Weight（kg）
|
745
|
1000
|
1020
|
|
Model
|
TW-925S(1+1)
|
TW-928(1+1)
|
TW-928L(1+1)
|
TW-928M(1+1)
|
|
|
TW-925S(3+1)
|
TW-928(3+1)
|
TW-928L(3+1)
|
TW-928M(3+1)
|
|
Working Table Size（mm)
|
1000 x 500
|
1000 x 500
|
1000 x 500
|
1200 x 500
|
|
Swing Arm Width（mm)
|
370
|
500
|
610
|
500
|
|
Cutting Force（t）
|
25(28)
|
25(28)
|
25(28)
|
22(28）
|
|
Cutting Stroke（mm)
|
90
|
90
|
90
|
90
|
|
Motor Power（kW）
|
0.75（1HP）
|
0.75（1HP）
|
0.75（1HP）
|
0.75（1HP）
|
|
Net Weight（with oil）(kg)
|
990
|
1030
|
1050
|
1060
|
|
Gross Weight（kg）
|
1120
|
1160
|
1180
|
1200
|
Product Application
It is widely used in all nonmetal products industries, such as shoes,bags&cases,leather products,gloves,hats,pulled
flowers,arts&crafts, plastic package,garment accessorries and auto supplies.
flowers,arts&crafts, plastic package,garment accessorries and auto supplies.
