Quick Details
-
Torque Capacity:
-
35
-
Model Number:
-
5-18mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YANGFINE/OEM
-
Product name:
-
Flexible Drive Shaft
-
Diameter:
-
2-18mm
-
Package:
-
Customer Requriement
-
Length:
-
1-100M
-
MOQ:
-
10pcs
-
Direction Of Twist:
-
Levorotation and Dextrorotation
-
Performance:
-
Smooth,flexible,High elasticity,Wear resisting
Quick Details
-
Weight (KG):
-
0.17
-
Core Components:
-
carbon steel wire
-
Material:
-
carbon steel wire
-
Torque Capacity:
-
35
-
Model Number:
-
5-18mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YANGFINE/OEM
-
Product name:
-
Flexible Drive Shaft
-
Diameter:
-
2-18mm
-
Package:
-
Customer Requriement
-
Length:
-
1-100M
-
MOQ:
-
10pcs
-
Direction Of Twist:
-
Levorotation and Dextrorotation
-
Performance:
-
Smooth,flexible,High elasticity,Wear resisting

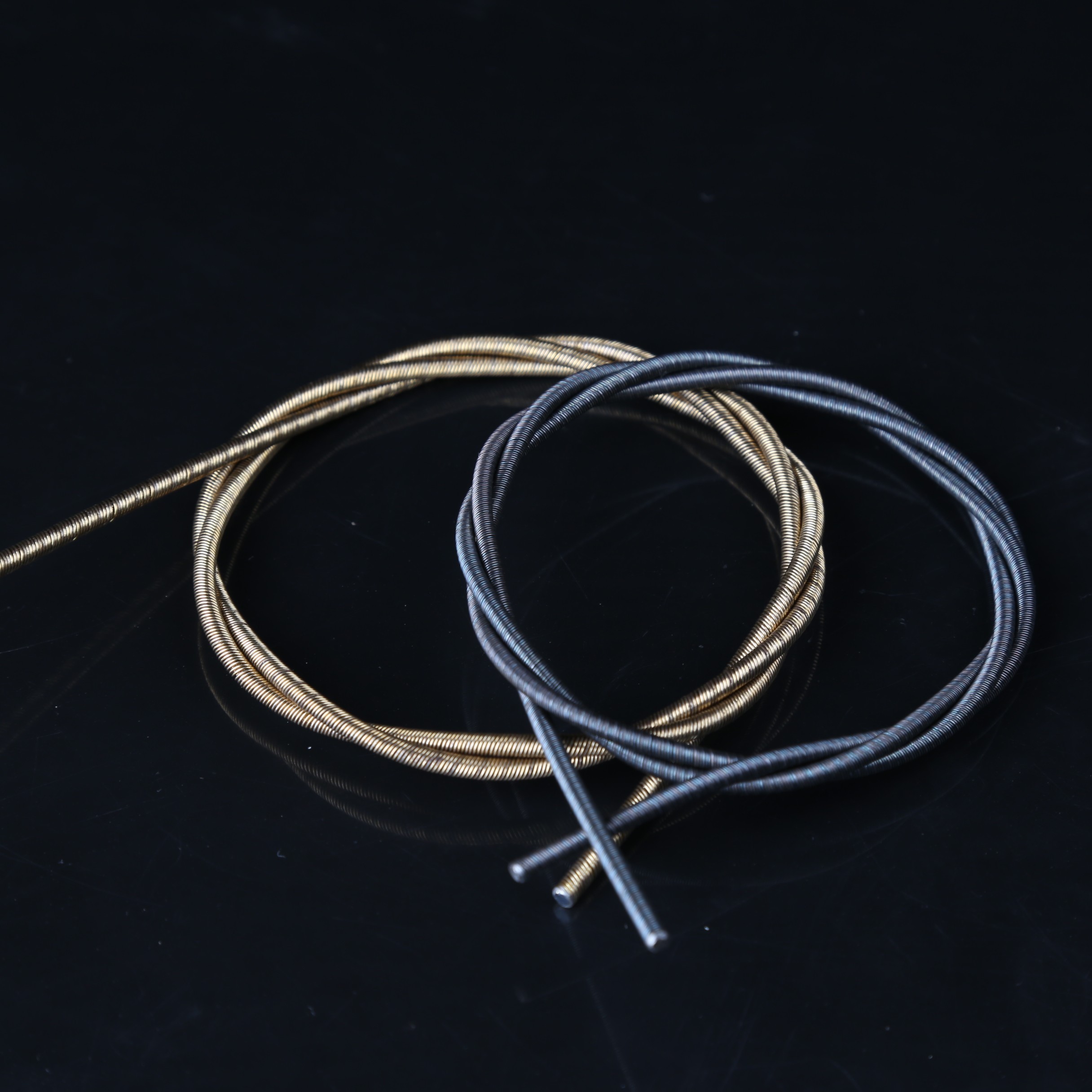

Flexible shaft is composed of multilayer long spring, interlayer close by, and that by two layers of coil in the opposite direction. The center for steel wire core.
Diameter 2-18 mm
Wire 70 high spring steel wire
Five layer structure
Material: 70#-75 # high carbon spring steel wire;
Application Scope:
Vibrating machine,automobile,motorbike,counter,revolution counter,eletrice tools,gardening machinery mower,and various mechanical flexible rotation.
Performance:
Smooth, Flexible,High elasticity,wear-resisting.
Technical Specification&Parameter
| Diameter | Tolerance | Layer | Min.burst.torsion(N.m) | Weight(Kg/m) |
|
2 |
+0.00-0.15 | 3/53/53/5 | 0.8 | 0.018 |
| 2.5 | 1.0 | 0.028 | ||
| 3.2 | 1.3 | 0.046 | ||
| 3.8 | 1.5 | 0.065 |
| 5 | +000-0.15 | 3/4/5 | 1.8 | 0.113 |
| 6 | 2.4 | 0.17 | ||
| 6.5 | 2.9 | 0.187 | ||
| 8 | +0.00-0.18 | 4/5/6/7 | 7.5 | 0.288 |
| 10 | 22.5 | 0.455 | ||
| 12 | 39 | 0.665 | ||
| 13 | 50.5 | 0.775 | ||
| 16 | 115 | 1.17 | ||
| 18 | 160 | 1.49 | ||
| We accept all the special customized products | ||||
