Quick Details
-
Voltage:
-
Power supply 1X220V, 3X380V, 50HZ
-
Place of Origin:
-
CHN
-
Brand Name:
-
VICO
-
Model Number:
-
VPS-10
-
Warranty:
-
24months
-
Inside dimension:
-
6300X3450X2650 mm (LXWXH)
-
Outside dimension:
-
7550X3550X3100mm (LXWXH)
-
Plenum dimension:
-
6300X3450X450 mm (LXWXH)
-
Room body:
-
Back side EPS wall panel, the other sides PVC curtain
-
Intake and Exhaust system:
-
1X5.5KW centrifugal motor,
-
air capacity:
-
18000m3/h
-
Purification system:
-
Pre-filter, ceiling filter, fiberglass filter
-
Roof:
-
Galvanized steel
-
Control system:
-
Fan switch, lighting switch, emergency stop.
-
Total power:
-
6.7KW (Power supply 1X220V, 3X380V, 50HZ)
Quick Details
-
Power:
-
6.7KW (Power supply 1X220V, 3X380V, 50HZ)
-
External Size:
-
7550X3550X3100mm (LXWXH)
-
Internal Size:
-
6300X3450X2650 mm (LXWXH)
-
Voltage:
-
Power supply 1X220V, 3X380V, 50HZ
-
Place of Origin:
-
CHN
-
Brand Name:
-
VICO
-
Model Number:
-
VPS-10
-
Warranty:
-
24months
-
Inside dimension:
-
6300X3450X2650 mm (LXWXH)
-
Outside dimension:
-
7550X3550X3100mm (LXWXH)
-
Plenum dimension:
-
6300X3450X450 mm (LXWXH)
-
Room body:
-
Back side EPS wall panel, the other sides PVC curtain
-
Intake and Exhaust system:
-
1X5.5KW centrifugal motor,
-
air capacity:
-
18000m3/h
-
Purification system:
-
Pre-filter, ceiling filter, fiberglass filter
-
Roof:
-
Galvanized steel
-
Control system:
-
Fan switch, lighting switch, emergency stop.
-
Total power:
-
6.7KW (Power supply 1X220V, 3X380V, 50HZ)

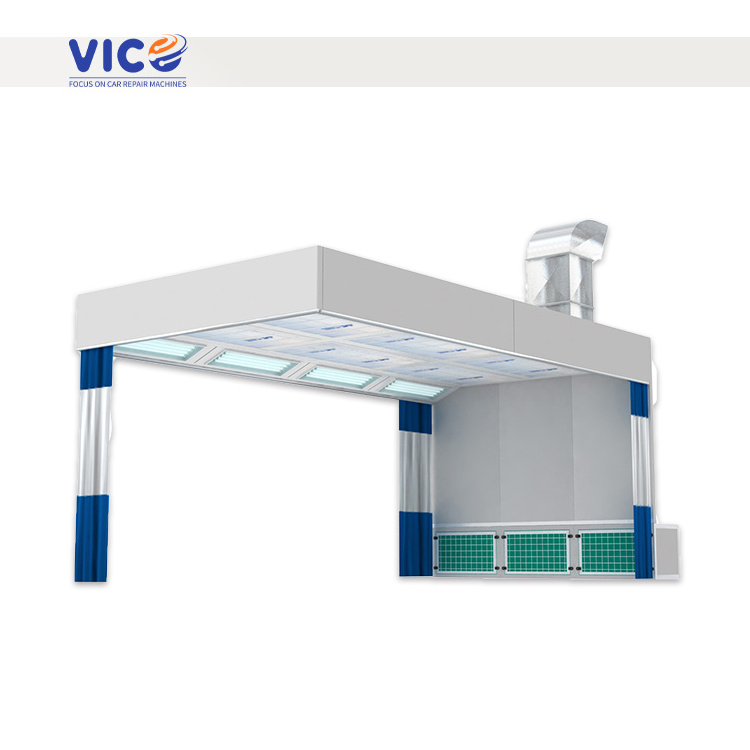

Vico Hot selling customized car polish preparation room/ paint prep room station for cars VPS-10
|
Item
|
Detailed Specification
|
|
Inside dimension
|
6300×3450×2650 mm (L×W×H)
|
|
Outside dimension
|
7550×3550×3100mm (L×W×H)
|
|
Plenum dimension
|
6300×3450×450 mm (L×W×H)
|
|
Room body
|
Back side EPS wall panel, the other sides PVC curtain.
|
|
Light
|
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, lighting boxes are powered coated.
|
|
Generator cabinet
|
Exhaust from back side, galvanized steel frame; white machine-made panel covered, filled with heat preservation material inside.
|
|
Intake and Exhaust system
|
1×5.5KW centrifugal motor, air capacity: 18000m3/h, with electric damper.
|
|
Purification system
|
Pre-filter, ceiling filter, fiberglass filter.
|
|
Roof
|
Galvanized steel
|
|
Control system
|
Fan switch, lighting switch, emergency stop.
|
|
Installs way
|
Hooked from roof by steel cable or supported by steel column.
|
|
Total power
|
6.7KW (Power supply 1×220V, 3×380V, 50HZ)
|
|
Unit price
|
|
Vico CE Approved car polish preparation room/ paint prep room station for cars VPS-10
20'GP container can load 1 set
40'HC container can load 3~4 sets
We mainly focus on offering auto body collision repair equipment and tools : Painting booths, auto body frame machines, car lifts , prep station, tire changer, tire balancer , wheel alignment machine, scissor lifts, measuring machine.
