Quick Details
-
L.O Frequency::
-
9.75/10/.6ghz
-
Key words:
-
MONOBLOCK LNB
-
Color:
-
Grey (Can be customise)
-
material:
-
AL
-
Connector type:
-
75 Female Connector
-
polarity:
-
dual
-
waterproof ability:
-
good
-
packing:
-
standard export carton for PLL C Band LNB
Quick Details
-
Place of Origin:
-
Anhui, China
-
Input frequency::
-
10.7-11.7GHZ/11.7-12.75GZH
-
Output frequency::
-
950-2150mhz
-
L.O Frequency::
-
9.75/10/.6ghz
-
Key words:
-
MONOBLOCK LNB
-
Color:
-
Grey (Can be customise)
-
material:
-
AL
-
Connector type:
-
75 Female Connector
-
polarity:
-
dual
-
waterproof ability:
-
good
-
packing:
-
standard export carton for PLL C Band LNB

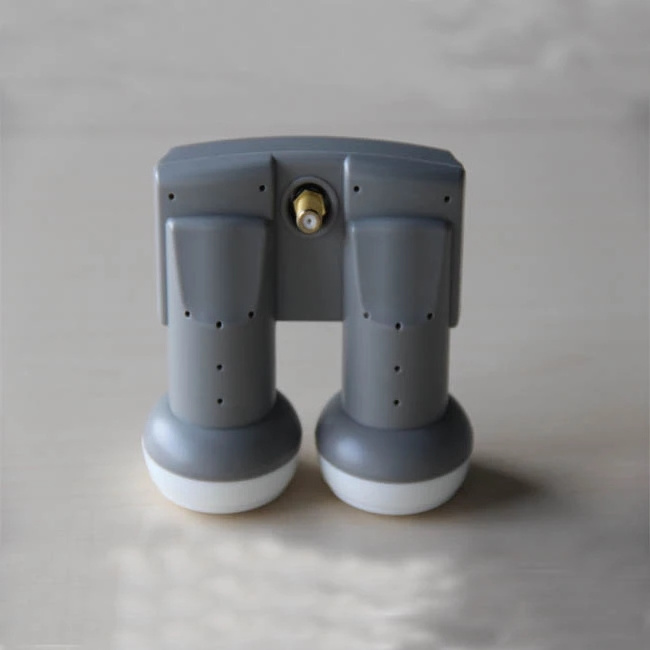

UNIVERSAL Wholesale Mono Single MONOBLOCK Ku Band LNB / LNBF Mono Block
Key Features
1. The spacing between the two integrated LNBs is 6 degrees
2. 2x 1 DiSEqC switch 2.0 inside
3. Designed for reception of hotbird 13°E and Astra 19.2 ° E
4. 1 participant; 1 output:V + H + Low + High; For 1 receiver; 2 feeds; 2 satellite positions
16°East + 10°East
13°East + 7°East
5°East + 1°West
6. Higher conversion gain
7. Ultimate reliability
8. Superior noise figure
9. F port Weather cap,Waterproof, weather protection, high performance
10. Easy installation
11. OEM&ODM supported
12. Low power consumption
Monoblock LNBF Specifications:
|
Input Frequency |
11.7-12.75GHZ |
|
Output Frequency |
950-2000MHZ |
|
L.O. Frequency |
10.75GHZ |
|
L.O. Stability |
Low Band:±1MHz(-40centigrade to +70centigrade) High Band:±1MHz(-40centigrade to +70centigrade)
|
|
Noise Figure |
0. 1 dB |
|
Conversion Gain |
65db |
|
Gain Flatness |
≤+/- 1.5 dB |
|
Intput VSWR |
2.5:1(max) |
|
Output VSWR |
2.0:1(max) |
|
Output Connector |
F-female Connector |
|
Output Impedance |
75Ω |
|
Cross Polar Isolation |
20dB(min) |
|
Supply Voltage |
1)Ca:11.5-14.0v(Vertical Polarization) 13VDCType
|
|
Direct Current |
150mA |
|
Control Signals |
1).Low Band:Ca or Cb(see below) 2).High Band:Cc or Cb(see below) 3)Cc:continues 22KHz |
|
Operating Temperature |
-40centigrade to +70centigrade |
|
Storage Temperature |
-40centigrade to +80centigrade |
|
Relative Humidity |
0%-95% |
|
Phase Noise |
1)-50dBc/Hz@1kHz(max)
|
|
Image Rejection |
45 dB (min) |
Factory show:
We also manufacture Other models of C band LNBF:
C Band single PLL LNB we usually packing as 30pcs/ carton. 7000pcs/20GP
Shipment: For Samples order and small order we usually ship out the goods with 7 working days.
For specifical c band lnb, we need customized for you.
We can send the goods to you as your requirement.
small goods suggest HK post,EMS,DHL,FedEx,TNT and UPS.
Large quantity suggest shipment by sea.
