Quick Details
-
the body:
-
malleable iron,hot-dip galvanized
-
security clip:
-
bronze or stainless steel
-
surface:
-
smooth
-
rated failure:
-
70-120kns
-
weight:
-
0.8-1.2kgs
-
Socket IEC Code:
-
16mmA.B
-
package:
-
Standard International export package
Quick Details
-
Place of Origin:
-
Zhejiang, China, Zhe jiang China(Mainland)
-
Brand Name:
-
YOJIU, Yongjiu or Customized
-
Model Number:
-
W
-
the body:
-
malleable iron,hot-dip galvanized
-
security clip:
-
bronze or stainless steel
-
surface:
-
smooth
-
rated failure:
-
70-120kns
-
weight:
-
0.8-1.2kgs
-
Socket IEC Code:
-
16mmA.B
-
package:
-
Standard International export package
Product introduction

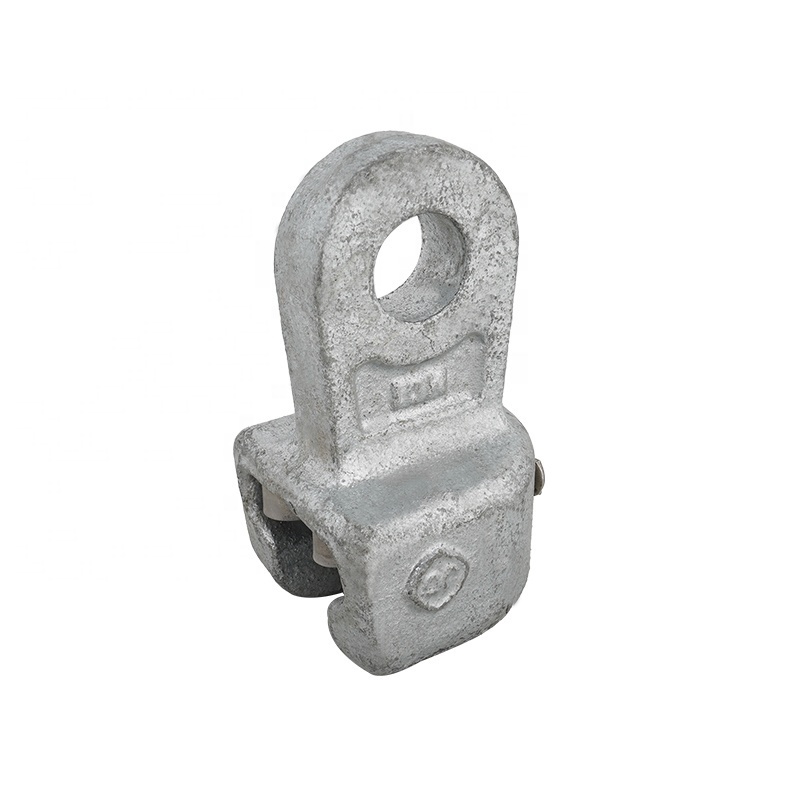

W type socket eyes are used to attach ball and socket insulators to other associated hardware.
It is made of malleable iron or casting steel and hot-dip galvanized.
Security clip is bronze or stainless steel.
Descriptions.
The socket eye is malleable iron,hot-dip galvanized. Security clip is stainless steel.
Application
.
As the important connecting fitting in the power grid construction,the Socket Eye for power line is mainly used to connect the suspension clamp and the insulator string,and cooperate with other accessories to connect the wire.
It links suspension clamps and suspension insulator to bear more working stress in power transmission line,of which the safe performance is of great importance.Therefore,in-depth study for the reason-ability of parts in socket clamp should be conducted.
It links suspension clamps and suspension insulator to bear more working stress in power transmission line,of which the safe performance is of great importance.Therefore,in-depth study for the reason-ability of parts in socket clamp should be conducted.
|
Item No.
|
Suitable Insulator
|
Dimensions(mm)
|
|
|
|
|
Rated Failure load(KN)
|
Weight(kg)
|
||||
|
|
|
C1
|
C2
|
h
|
d
|
b
|
|
|
||||
|
W-7A
|
XP-7 XP-4.5
|
19.2
|
34.5
|
70
|
20
|
16
|
70
|
0.8
|
||||
|
W-7B
|
XP-7 X-4.5
|
19.2
|
34.5
|
115
|
20
|
16
|
70
|
0.9
|
||||
|
W1-10
|
XP-10
|
19.2
|
34.5
|
85
|
20
|
18
|
100
|
1
|
||||
|
W1-12
|
XP-12
|
19.2
|
34.5
|
85
|
22
|
20
|
120
|
1.2
|
||||
