Quick Details
-
Voltage:
-
220v/380v, 220/380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YINGSHENG
-
Dimension(L*W*H):
-
1600x1100x1350mm
-
Weight:
-
300 KG, 300kgs
-
Product name:
-
Hydraulic Film Laminator
-
Model:
-
YYFM-520
-
Max.laminating width:
-
480mm
-
Laminating speed:
-
0-15m/min
-
Laminating temperature:
-
60-130°C
-
Power ofelectric heater:
-
0.4kw
-
Dimensions(L*W*H):
-
1600*1100*1350mm
-
Pressure:
-
0-10Mpa
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220v/380v, 220/380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YINGSHENG
-
Dimension(L*W*H):
-
1600x1100x1350mm
-
Weight:
-
300 KG, 300kgs
-
Product name:
-
Hydraulic Film Laminator
-
Model:
-
YYFM-520
-
Max.laminating width:
-
480mm
-
Laminating speed:
-
0-15m/min
-
Laminating temperature:
-
60-130°C
-
Power ofelectric heater:
-
0.4kw
-
Dimensions(L*W*H):
-
1600*1100*1350mm
-
Pressure:
-
0-10Mpa
Product Description

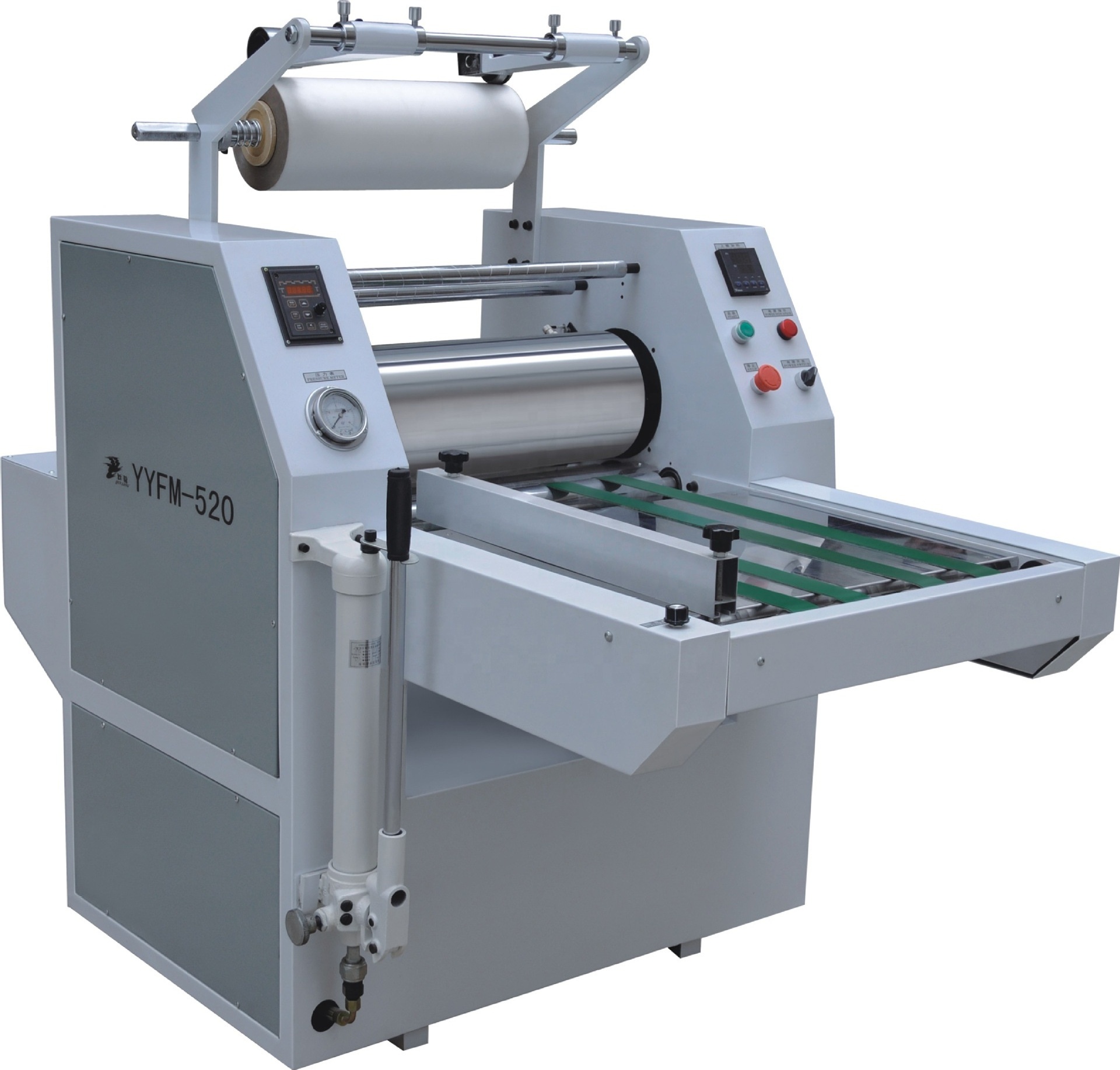

This machine covers a small area, is operated conveniently, runsfast. It is equipped with automatic temperature-control and speed-regulation, automatic feeding. Several rolls or redundant rolls can beslit at one timeso this machine is regarded as a slitter.
The machine adopts pre-coated film as the material. It is widelyused for lamination on the surface of window packing paper boxes.various books, maps, pictures, certificates, holographic cellophane etc.After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three-dimensional sense.
Specification
|
item
|
value
|
|
Type
|
Laminating Machine
|
|
Applicable Industries
|
Advertising Company, Packaging Industry
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Engine, Motor
|
|
Condition
|
New
|
|
Application
|
Food, Commodity
|
|
Packaging Type
|
Film
|
|
Packaging Material
|
Plastic
|
|
Automatic Grade
|
Semi-automatic
|
|
Driven Type
|
Electric
|
|
Voltage
|
220v/380v
|
|
Place of Origin
|
China
|
|
|
Henan
|
|
Brand Name
|
YINGSHENG
|
|
Dimension(L*W*H)
|
1600x1100x1350mm
|
|
Weight
|
300KG
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Easy to Operate
|
|
Product name
|
Hydraulic Film Laminator
|
|
Model
|
YYFM-520
|
|
Max.laminating width
|
480mm
|
|
Laminating speed
|
0-15m/min
|
|
Laminating temperature
|
60-130°C
|
|
Power ofelectric heater
|
0.4kw
|
|
Voltage
|
220/380V
|
|
Dimensions(L*W*H)
|
1600*1100*1350mm
|
|
Weight
|
300kgs
|
|
Pressure
|
0-10Mpa
|
