Quick Details
-
Fork Length:
-
1220mm
-
Overall Dimensions:
-
3900*1800*2450mm
-
Weight (KG):
-
4410 kg
-
Product Name:
-
Rough Terrain Forklift
-
Brand:
-
Infinity
-
Model:
-
CPY35(Front Steering)
-
Color:
-
Customized Color
-
Rated power:
-
78.8hp
-
Mast width:
-
160mm
-
Driving method:
-
4WD
-
Frame hitch:
-
Front 300mm rear 250mm
-
Climbing angle:
-
<35°
-
Mast static height:
-
2200mm
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Infinity
-
Fork Length:
-
1220mm
-
Overall Dimensions:
-
3900*1800*2450mm
-
Weight (KG):
-
4410 kg
-
Product Name:
-
Rough Terrain Forklift
-
Brand:
-
Infinity
-
Model:
-
CPY35(Front Steering)
-
Color:
-
Customized Color
-
Rated power:
-
78.8hp
-
Mast width:
-
160mm
-
Driving method:
-
4WD
-
Frame hitch:
-
Front 300mm rear 250mm
-
Climbing angle:
-
<35°
-
Mast static height:
-
2200mm
Products Description

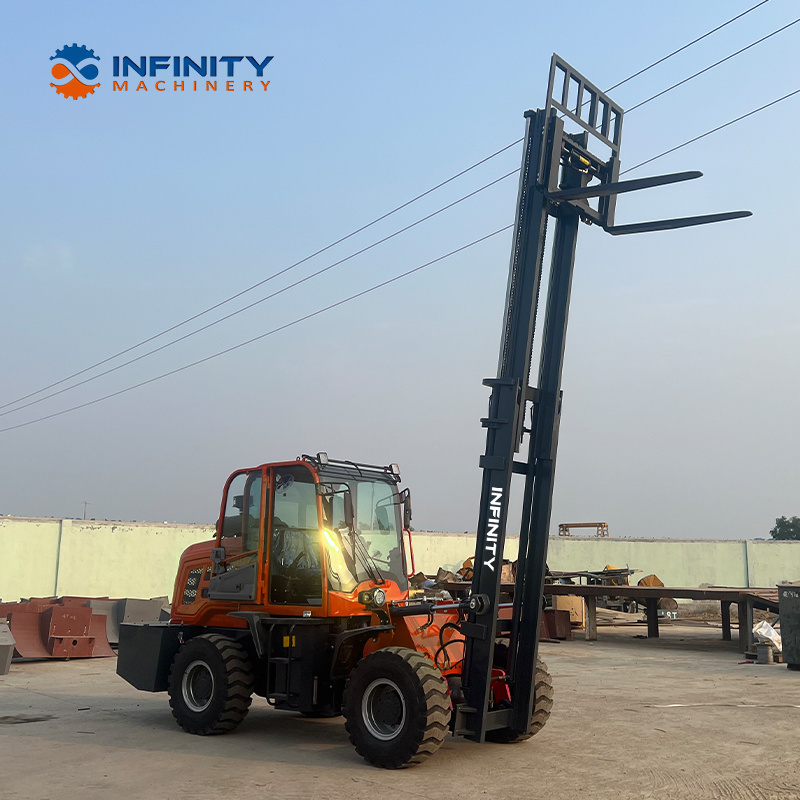

Rough terrain forklift is a powerful industrial tool designed to handle difficult terrain and harsh environments. It has excellent performance, rugged construction and excellent suspension to ensure efficient operation in all conditions. Safety is fully considered, while an advanced climate control system ensures operator comfort. This is a reliable work partner suitable for a variety of fields, increasing work efficiency and reducing risks.
Product Display
|
CPY35
|
|
|
|
|||
|
Engine
|
Yunnei 490turbo
|
Rated power
|
78.8hp
|
|||
|
Tyre
|
20.5/70-16
|
Max. load capacity
|
3500kg
|
|||
|
Lean forward angle
|
12°
|
Axle
|
Weighted cast steel small chassis
|
|||
|
Gearbox
|
JLT265 double dual-speed
|
Turning radius（Outer tyres）
|
3600mm
|
|||
|
Mast width
|
160mm
|
Lifting height (Standard)
|
3000mm
|
|||
|
Climbing angle
|
<35°
|
Fork length (Standard)
|
1220mm
|
|||
|
Frame hitch
|
Front 200mm rear 250mm
|
Driving method
|
4WD
|
|||
|
Weight
|
4400kg
|
Min. Ground Clearance
|
240mm
|
|||
|
Overall dimensions
|
3700/1800/2450mm
|
Mast static height
|
2240mm
|
|||
|
|
|
Indoor model：height 2.2m
|
|
|||
|
CPY50
|
|
|
|
|||
|
Engine
|
Yunnei 4102turbo
|
Rated power
|
106hp
|
|||
|
Tyre
|
16/70-24 semi-solid
|
Max. load capacity
|
5000kg
|
|||
|
Lean forward angle
|
12°
|
Axle
|
Weighted cast steel big chassis
|
|||
|
Gearbox
|
JLT280 double dual-speed
|
Turning radius（Outer tyres）
|
4800mm
|
|||
|
Mast width
|
180mm
|
Lifting height (Standard)
|
3000mm
|
|||
|
Climbing angle
|
<35°
|
Fork length (Standard)
|
1220mm
|
|||
|
Frame hitch
|
Front 500mm rear300mm
|
Driving method
|
4WD
|
|||
|
Weight
|
5700kg
|
Min. Ground Clearance
|
330mm
|
|||
|
Overall dimensions
|
4400*2085*2650mm
|
Mast static height
|
2400mm
|
|||
|
CPY35
|
|
|
|
|||
|
Engine
|
Yunnei 490turbo
|
Rated power
|
78.8hp
|
|||
|
Tyre
|
20.5/70-16
|
Max. load capacity
|
3500kg
|
|||
|
Lean forward angle
|
12°
|
Axle
|
Weighted cast steel small chassis
|
|||
|
Gearbox
|
JLT265 double dual-speed
|
Turning radius（Outer tyres）
|
3600mm
|
|||
|
Mast width
|
160mm
|
Lifting height (Standard)
|
3000mm
|
|||
|
Climbing angle
|
<35°
|
Fork length (Standard)
|
1220mm
|
|||
|
Frame hitch
|
Front 200mm rear 250mm
|
Driving method
|
4WD
|
|||
|
Weight
|
4400kg
|
Min. Ground Clearance
|
240mm
|
|||
|
Overall dimensions
|
3700/1800/2450mm
|
Mast static height
|
2240mm
|
|||
|
|
|
Indoor model：height 2.2m
|
|
|||
|
CPY50
|
|
|
|
|||
|
Engine
|
Yunnei 4102turbo
|
Rated power
|
106hp
|
|||
|
Tyre
|
16/70-24 semi-solid
|
Max. load capacity
|
5000kg
|
|||
|
Lean forward angle
|
12°
|
Axle
|
Weighted cast steel big chassis
|
|||
|
Gearbox
|
JLT280 double dual-speed
|
Turning radius（Outer tyres）
|
3900mm
|
|||
|
Mast width
|
180mm
|
Lifting height (Standard)
|
3000mm
|
|||
|
Climbing angle
|
<35°
|
Fork length (Standard)
|
1220mm
|
|||
|
Frame hitch
|
Front 250mm rear 300mm
|
Driving method
|
4WD
|
|||
|
Weight
|
5700kg
|
Min. Ground Clearance
|
330mm
|
|||
|
Overall dimensions
|
3900*2080*2650mm
|
Mast static height
|
2330mm
|
|||
