Quick Details
-
Weight (KG):
-
300
-
Name:
-
Automatic Pipe Cutting Machine
-
Cutting material:
-
Stainless Steel Carbon Steel Alloy
-
Cutting mode:
-
Automatic Cutting
-
Model:
-
MC325-CNC
-
Function:
-
Pipe Tube Cutting
-
Keyword:
-
China Pipe Cutting Machine
-
Cutting Speed:
-
60/120rpm
-
Color:
-
Support Customized
-
Saw blade:
-
HSS Blade
-
Power:
-
3kw
Quick Details
-
Cutting Thickness (mm):
-
4
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
740*600*1400mm
-
Weight (KG):
-
300
-
Name:
-
Automatic Pipe Cutting Machine
-
Cutting material:
-
Stainless Steel Carbon Steel Alloy
-
Cutting mode:
-
Automatic Cutting
-
Model:
-
MC325-CNC
-
Function:
-
Pipe Tube Cutting
-
Keyword:
-
China Pipe Cutting Machine
-
Cutting Speed:
-
60/120rpm
-
Color:
-
Support Customized
-
Saw blade:
-
HSS Blade
-
Power:
-
3kw
Product Overview

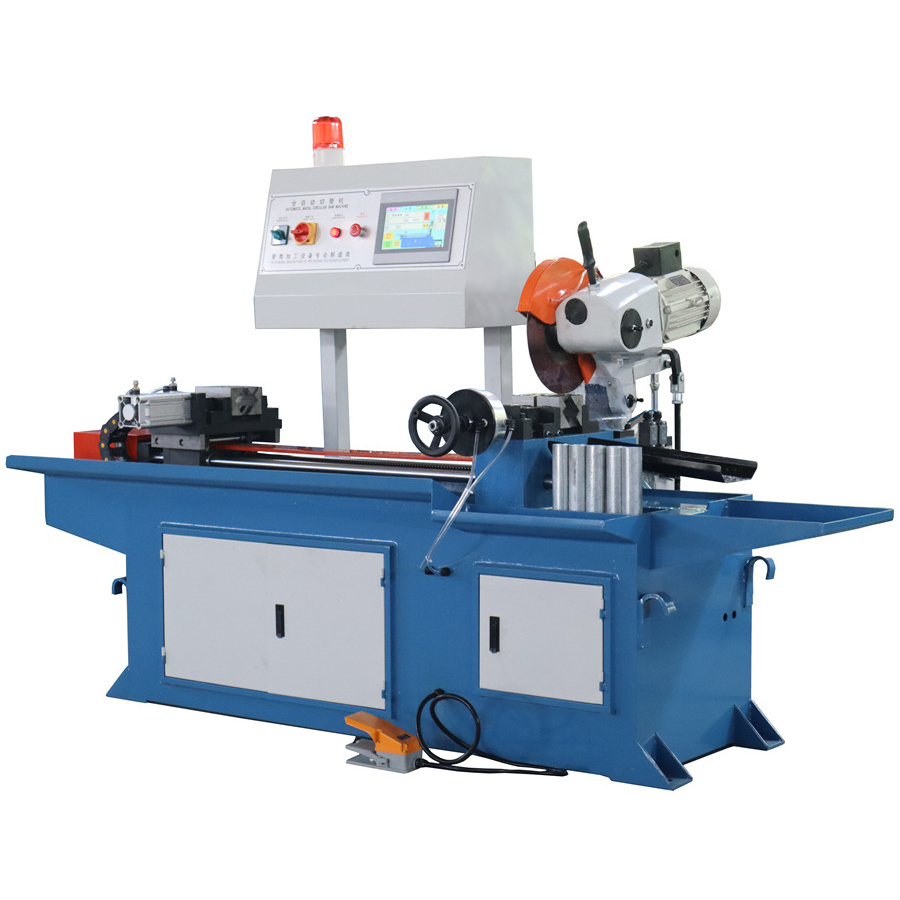

MC325-CNC Metal Steel Automatic CNC Pipe Cutting Machine for Circular Cold Saw Machine
MC-325 CNC automatic pipe cutting machine
is a fully automatic feed type metal cutting machine, which can saw various cross-sectional shapes Ordinary steel, stainless steel, carbon steel and other metal materials, aluminum.
Main features:
The machine has low noise and good sawing quality, In addition, there is no burr on the cut surface of the saw, which saves two processing steps and greatly improves the productivity.
Servo motor drives the feeding, with high reciprocating precision, and the required length can be obtained by inputting Arabic numerals.
The system has its own fault alarm, fault prompt, and fault point self-check function, which effectively saves time for inspection, inspection, repair and maintenance.
The system has its own automatic calculation function of length and dimension, which makes the input value more intuitive.
The jaws are designed with dovetail grooves, precision machining, milling keyway, and more stable wear resistance.
The equipment has three sets of adjustable clamping pressure, which can effectively solve the problem of clamping force.
PRODUCT SPECIFICATIONS
|
Main technical parameters:
① Main motor power: 3HP 3.3/4.0kw
② Voltage: 380V, 50HZ
③ Cooling pump motor power: 90W 380V
④Maximum opening of the clamp: 120mm
⑤ Use saw blade: outer diameter φ275 ~ φ350 mm, inner hole φ32 mm
⑥ All the required parameters of the equipment can be changed in the system operation panel to meet the production requirements
|
MC325-CNC Metal Steel Automatic CNC Pipe Cutting Machine for Circular Cold Saw Machine
Clamping device
MC325-CNC Metal Steel Automatic CNC Pipe Cutting Machine for Circular Cold Saw Machine
