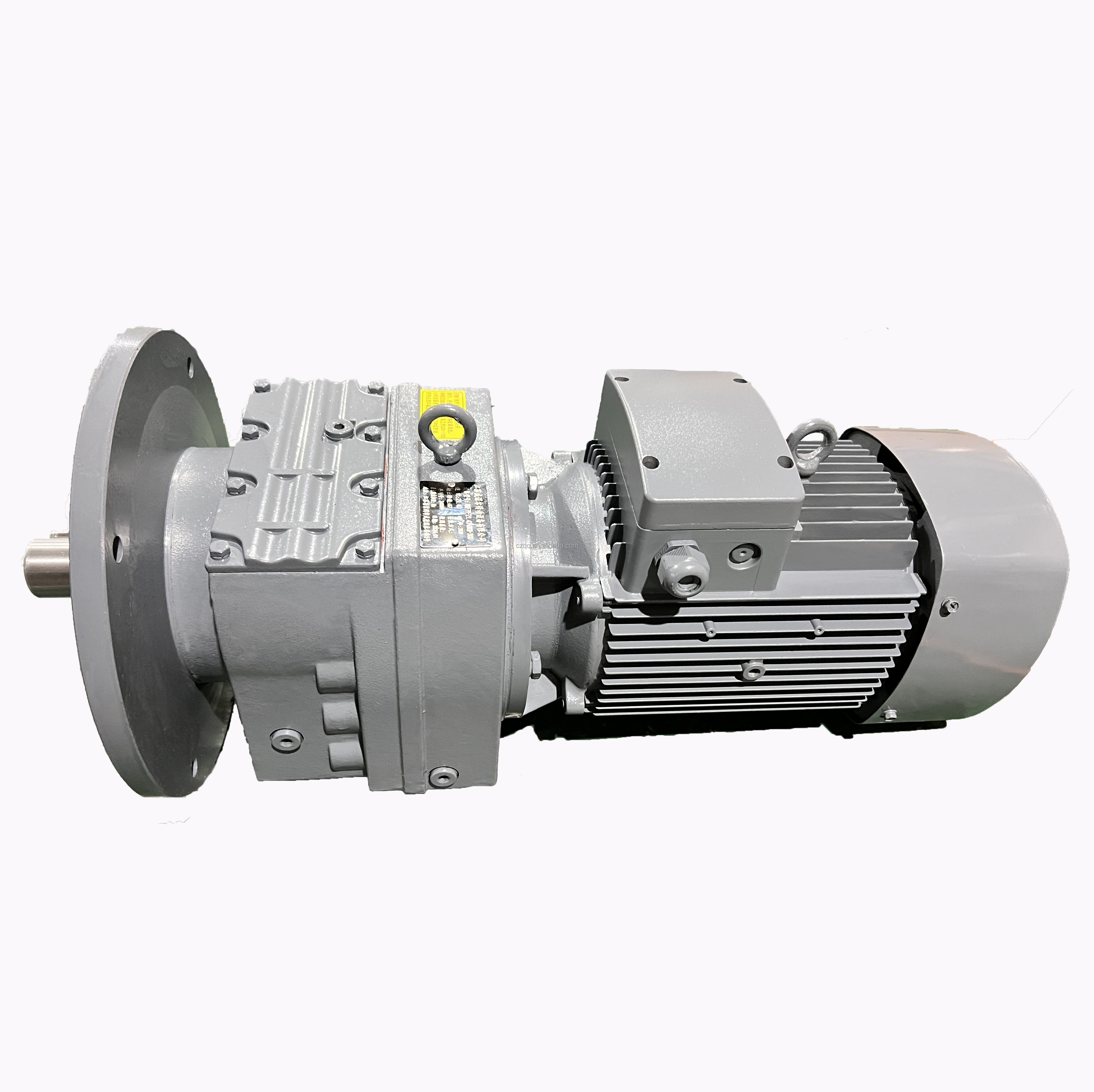

Helical Inline Gearbox R Series R97 RF77 Gear Motor Rotary Tillers Gearbox

Helical Inline Gearbox R Series R97 RF77 Gear Motor Rotary Tillers Gearbox

FOB Reference Price: Get Latest Price

≥2 Pieces

US $110

≥39 Pieces

US $100

≥50 Pieces

US $95

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output Speed:: 14-280rpm

Warranty:: 1 year

Weight (KG):: 50 KG

Place of Origin:: Jiangsu, China

Brand Name:: QIan qian

Output torque:: 3.5-23200N.m

Assemble Type:: R, RF, RX ,RXF,RM

Mounting position:: M1-M6

Material of housing:: Iron

colour:: blue green gray or customized

Quick Details

Gearing Arrangement:: Worm

Output Torque:: 1.8-2430N.M

Input Speed:: 750-1500rpm

Output Speed:: 14-280rpm

Warranty:: 1 year

Weight (KG):: 50 KG

Place of Origin:: Jiangsu, China

Brand Name:: QIan qian

Output torque:: 3.5-23200N.m

Assemble Type:: R, RF, RX ,RXF,RM

Mounting position:: M1-M6

Material of housing:: Iron

colour:: blue green gray or customized

R Series Explosion Diagram

1、Motor	2、Bolt	3、Washer	4、Lifting ring	5、Cap Screw
6、Vent Cap	7、Cover	8、Skeleton oil seal	9、Parallel Key	10、Output shaft
11、Parallel Key	12、Circlip for hole	13、Skeleton oil seal	14、Gear	15、Bearing sleeve
16、Bear	17、Parallel Key	18、Gear	19、Plane Oil Seal	20、Circlip for hole
21、Gear	22、Skeleton oil seal Gear Shaft	23、Plane Oil Sea	24、Circlip for hole	25、Bearing
26、Gear Shaft	27、Parallel Key	28、Bearing	29、Gear	30、Bearing
31、Circlip for hole	32、Bearing sleeve	33、Bearing	34、Bearing	35、Circlip for shaft
36、Plug cock	37、Oil mirror	38、Case	39、Circlip for shaft	40、Gear

Note:

1、Please make a note, if it needs connecting flange. 2、Contents of motors for input shaft types are not listed 3、Degree-0° if terminal box position is not mentioned. lt is x, if cable entry position is not mentioned 3、If specific rotation directions of outout shaft or/and input shaft are specially recuested, please contact our technology department, and make detailed description while placing order.

Different kinds of mounting arrangements are defined as fallowing:

M1-horizontally mounted motor, unit foot (for R，RX)or unit base (for RF， RXF) is at bottom. M2-motor is vertically mounted downwards. M3-horizontally mounted motor, unit foot (for R，RX)or unit base (for RF， RXF) is top. M4-motor is vertically mounted upwards. M5-horizontally mounted motor, if placed on M1 position,left side of unit turns to bottom(view point: towards from motor side) M6-horizontally mounted motor, if placed on M1 position,left side of unit turns to top (view point: towards from mo-tor side).

Changzhou Qianqian Gearbox Co., Ltd. is a company specializing in the development of gearboxes and related supporting equipment. A professional company engaged in development, manufacturing, and sales. Main products: X and B series cycloidal pinwheel reducers, worm gears, and worm gears R. Sales of S.K.F. series gear reducers, shut-off fans, and spare parts. The product covers the whole country and Corresponding sales and service networks have been established in various regions. Changzhou Qianqian Reducer Co., Ltd. has been continuously growing through the unremitting efforts of all employees. Since its establishment, we have continuously introduced new equipment and processes, gradually improving production, after-sales service, and quality assurance Model, applying scientific management methods and modern testing methods to ensure the production of high-quality and high specification products. With technology and professionalism, we are committed to providing you with sincere service and innovation A reasonable and comprehensive solution,Multi user recognition. The company adheres to the principle of "quality first, customer first" and provides you with first-class service.

^{Strictly Quality Control bring Outstand Gearbox products}

1: 100% testing for all the gears and Gear shaft and cast Iron Housing
2: 100% Running Test before delivery (Include Oil leak,Noise and Vibration test
3: 100% Appearance checking before packing

Strong Production Capability & Advanced equipment & Faster delivery
1: More than 80 professional workers 2000 Squre meter factory base

2: Imported Grinding machines(REISHAUER) ensure all gears we make are DIN 6
3: Fast delivery (Spare part stock for all series gearboxes)
4: experience since 2018
5: Customized gearbox according to client's requrement

Wooden box packaging

Delivered to the logistics area on time every afternoon, and delivered to customers on time

Q1:How should we choose the model?A1:Tell me the key parameters，such as ratio,input power and output torque. Show the label andpictures. Help me to fill the table of working conditions?

Q2: Are you a manufacturer or trading company?
A2: A company integrated with industry and trade.

Q3: What about the shipping methods?
A3: For urgent order and light weight, you can choose the following express: UPS, FedEx, TNT,DHL, EMS. For heavy weight, you canchoose to deliver the goods by air or by sea to save cost.

Q4: What about the payment methods?
A4: We accept T/T, L/C for big amount, and for small amount, you can pay us by PayPal, Western Union, and etc.

Q5: How much does it cost to ship to my country?
A5: It depends on seasons. Fee is different in different seasons. You can consult us at all times.

Q6: What’s your delivery time?
A6: Usually we produce within 5-10days after the payment confirmed. If you are urgent, we will urge the production department for you.
