Quick Details
-
Brand Name:
-
DYS/OEM
-
Use:
-
FTTH
-
Warranty Time:
-
2
-
Product name:
-
FC Variable Fiber Optic Attenuator
-
Connector Gender:
-
FC Male to Female
-
Attenuation level range:
-
0~30dB
-
Return Loss(dB)::
-
PC:≥50 UPC: ≥55 APC: ≥60
-
Connector Type:
-
LC SC FC ST
-
Application:
-
(Data Center)
-
Material:
-
Metal , Plastic
-
Operating Wavelength:
-
1260nm~1620nm
-
Operating temperature:
-
-40~80
Quick Details
-
Type:
-
Fiber Optic Attenuator, Male to Female
-
Model Number:
-
FC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DYS/OEM
-
Use:
-
FTTH
-
Warranty Time:
-
2
-
Product name:
-
FC Variable Fiber Optic Attenuator
-
Connector Gender:
-
FC Male to Female
-
Attenuation level range:
-
0~30dB
-
Return Loss(dB)::
-
PC:≥50 UPC: ≥55 APC: ≥60
-
Connector Type:
-
LC SC FC ST
-
Application:
-
(Data Center)
-
Material:
-
Metal , Plastic
-
Operating Wavelength:
-
1260nm~1620nm
-
Operating temperature:
-
-40~80
Product Description

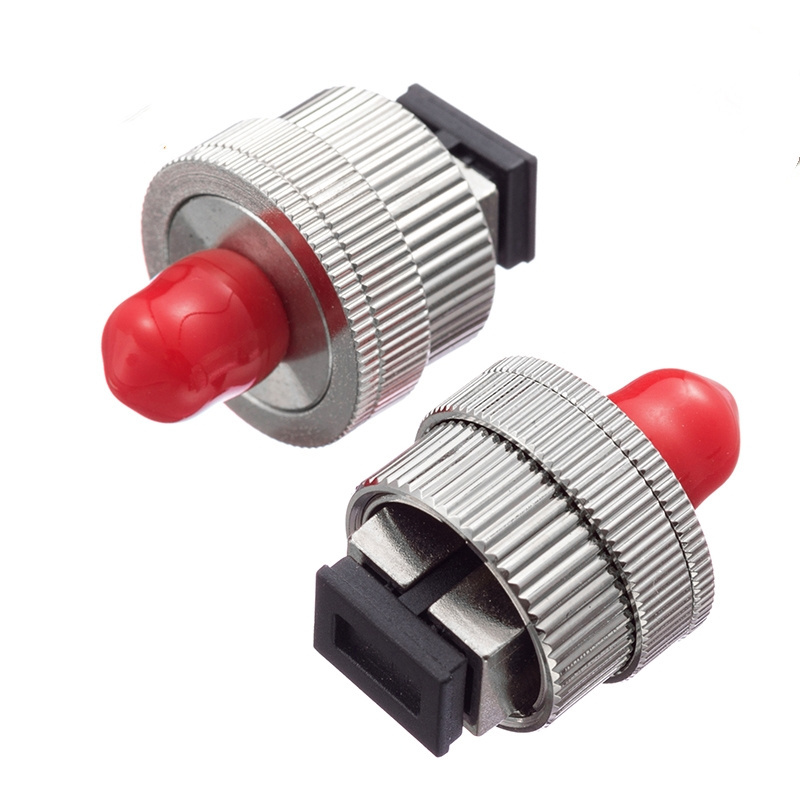

Wholesale FC Variable Fiber Optic Attenuator to Attenuate FTTH /CATV
Fiber optic attenuators are used in the fiber optic links to reduce the optical power at a certain level.Commonly used fiber optic attenuators are the female to male type, which is also called a plug fiber attenuator. They are with ceramic ferrules and there are various types to fit different kinds of fiber optic connectors. Fixed value fiber optic attenuators can reduce the optical light power at a fixed level,Variable fiber optic attenuators are with adjustable attenuation range. There are also attenuation fiber optic patch cables available, their function is same as attenuators and are used inline.
|
Product type
|
Coupler Attenuator Male to Female
|
|
Operation wavelength
|
SM: 1200 to 1600nm or 1310/1550nm
|
|
|
MM: 850nm, 1300nm
|
|
Return Loss
|
≥ 50 db (PC)
|
|
|
≥ 55 db (UPC)
|
|
|
≥ 65 db (APC)
|
|
Attenuation Accuracy
|
+/-0.5 db for 1 to 5db attenuation
|
|
|
+/-10% for 6 to 30db attenuation
|
|
Polarization Dependent loss
|
≤ 0.2db
|
|
Mechanical endurance
|
>1000
|
|
Maximum optical Input power
|
200MW
|
|
Operating Temp Range
|
-40 to + 80degree
|
