- Product Details
- {{item.text}}
Quick Details
-
Screen Type:
-
TFT LCD Monitor(IPS)
-
Function:
-
3 channel monitor to display AHD/CVBS camera
-
Connection:
-
4 pin aviation(RCA optional)
-
Warranty:
-
18 Months
-
Place of Origin:
-
Guangdong,China
-
Brand Name:
-
PJ-AUTO
-
Model Number:
-
PJ-712HD
-
Size:
-
7''
-
Video Input:
-
2 way/3 way
-
Color:
-
Black
-
TV system:
-
PAL/NTSC Auto Switch
-
Power Supply:
-
DC 12-36V
-
Back Light Luminance:
-
500cd/m2(high brightness customized)
Quick Details
-
Car Fitment:
-
Universal
-
Resolution:
-
1024*600
-
Type:
-
2/3 Channel AHD Standalone Monitor
-
Screen Type:
-
TFT LCD Monitor(IPS)
-
Function:
-
3 channel monitor to display AHD/CVBS camera
-
Connection:
-
4 pin aviation(RCA optional)
-
Warranty:
-
18 Months
-
Place of Origin:
-
Guangdong,China
-
Brand Name:
-
PJ-AUTO
-
Model Number:
-
PJ-712HD
-
Size:
-
7''
-
Video Input:
-
2 way/3 way
-
Color:
-
Black
-
TV system:
-
PAL/NTSC Auto Switch
-
Power Supply:
-
DC 12-36V
-
Back Light Luminance:
-
500cd/m2(high brightness customized)

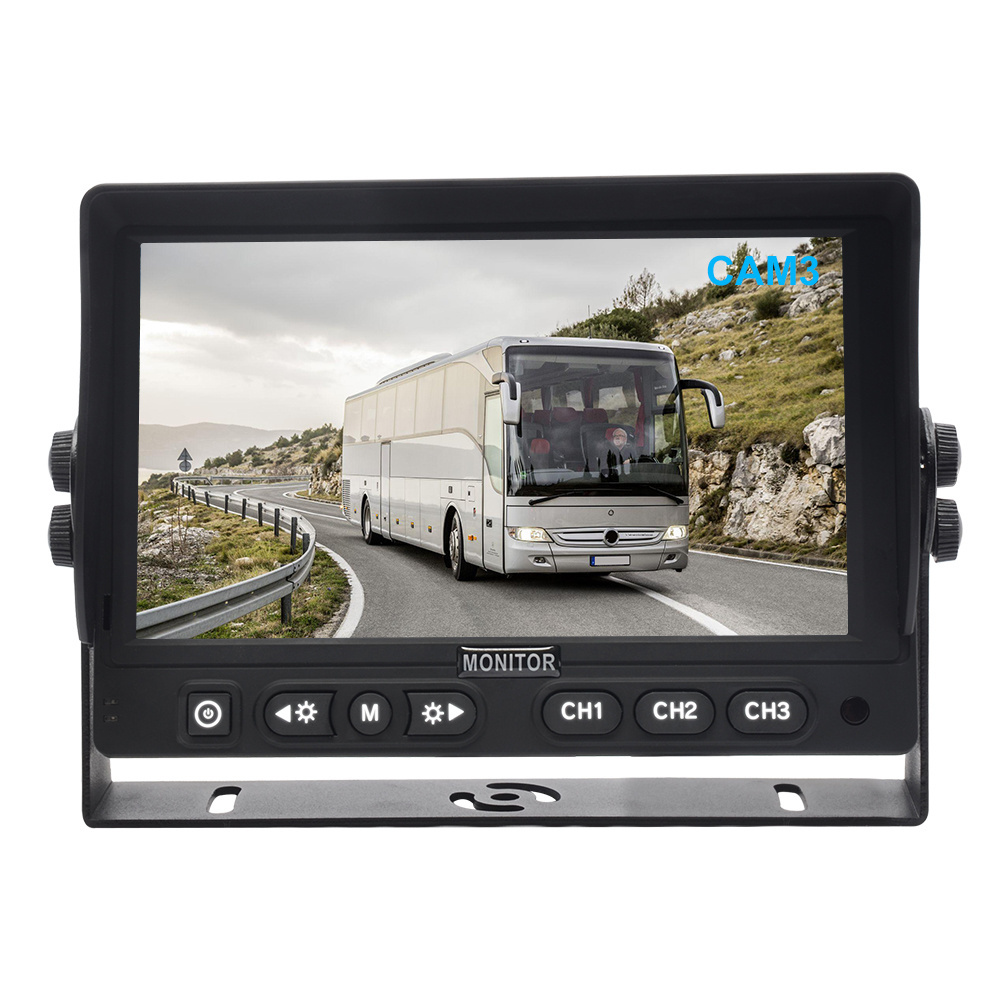

Product Description
Technology Features:
* Full compatibility with AHD 720P/1080P & CVBS(NTSC/PAL)
* Support mixing connection of cameras of different formats
* High brightness and high resolution display
* Fast boot up and fast switching by button or trigger(<2 seconds)
* DC 12-36V wide voltage range,industrial level PCB design with protection against over-voltage,under-voltage,reverse polarity,static and surge,etc.
* 4-pin aviation connector with waterproof cover
* Various bracket optional
* Up to 3 x video/audio/trigger inputs customizable
Product Features:
* IPS panel for wide & bright screen view
* Rubber finish,detachable sunshade
* Auto dim for night mode
* OSD menu for setting of languages,mirror image,parking grid on/off,etc.
* Embedded mounting frame optional
Specification:
|
Panel
|
7’’ IPS
|
Aspect Ratio
|
16:9
|
|
Resolution
|
1024x3(RGB)x600
|
Operating Temperature
|
-20~+70℃
|
|
Brightness
|
500 cd/m²
|
Storage Temperature
|
-30~+80℃
|
|
Contrast
|
700:1
|
Power Consumption
|
Max.25W
|
|
Viewing Angle
|
85 /85 /85 /85 (L/R/U/D)
|
Power for Cameras
|
Max. 4×600mA, 12V
|
|
Voltage Range
|
DC 12V-36V
|
Operating Pressure
|
10~110g
|
|
Standard Inputs
|
2 x video,1 x audio
|
Initializing Time
|
<2 seconds
|
|
TV System
|
PAL / NTSC
|
Switching Time
|
<2 seconds
|
