Quick Details
-
Model Number:
-
G15-10SM-150-22
-
Max. Current:
-
10A
-
Operating Temperature:
-
-25℃~+125℃
-
Protection Level:
-
High Level
-
Product Name:
-
Micro switch
-
Operating force:
-
150±50gf
-
Life Time:
-
10000 Cycles
-
Operating Relative Humidity:
-
≤85%
-
Ratings:
-
10A 125/250VAC
-
Contact Resistance:
-
≤100mΩ
-
Insulation Resistance:
-
≥100MΩ
-
Dielectric Withstand:
-
1000V AC 1Min
-
Soldering Temperature:
-
260±5℃ 5s
-
Return Force:
-
30gf Min
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GANGYUAN
-
Model Number:
-
G15-10SM-150-22
-
Max. Current:
-
10A
-
Operating Temperature:
-
-25℃~+125℃
-
Protection Level:
-
High Level
-
Product Name:
-
Micro switch
-
Operating force:
-
150±50gf
-
Life Time:
-
10000 Cycles
-
Operating Relative Humidity:
-
≤85%
-
Ratings:
-
10A 125/250VAC
-
Contact Resistance:
-
≤100mΩ
-
Insulation Resistance:
-
≥100MΩ
-
Dielectric Withstand:
-
1000V AC 1Min
-
Soldering Temperature:
-
260±5℃ 5s
-
Return Force:
-
30gf Min
3 pin SPDT Mini push button micro switch 10A 125/250VAC T125 5E4
Product Description :
| Number | G15-10SM-150-22 |
| Voltage Rating | 125/250V AC |
| Current Rating | 10A |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥100MΩ |
| Operating Force | 1.5±0.5N |
| Operating Temperature Range | ~25℃~+125℃ |
| Operating Relative Humidity | ≤85% |
| Operation life | 10000 cycles |
| Feature | SPDT |
Dimension:

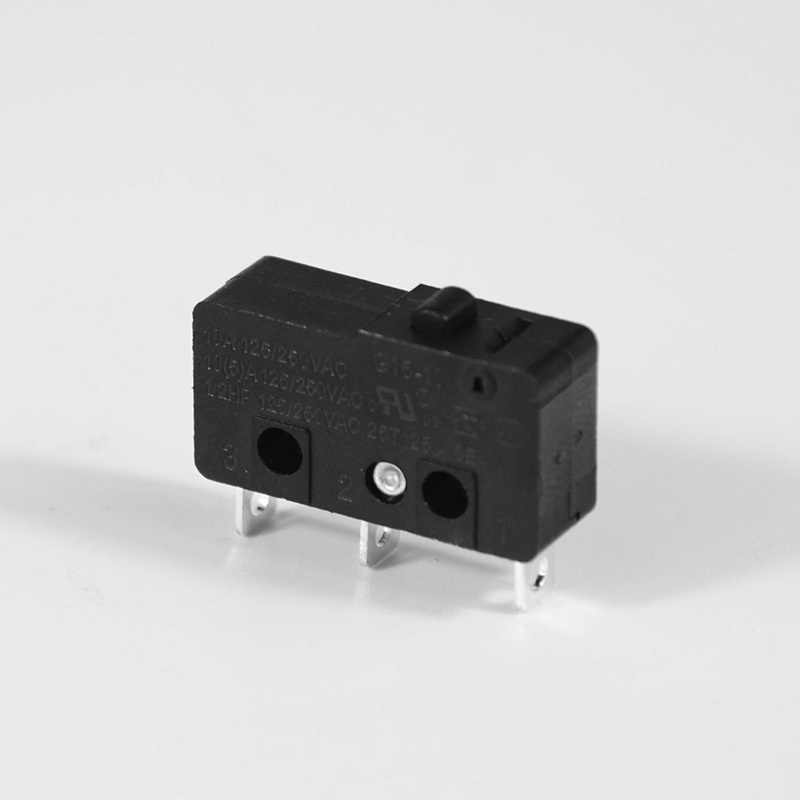

Products photos:
