Quick Details
-
Brand Name:
-
bitvisus
-
Model Number:
-
BIT-VWC-4K60-104
-
Dimension (L x W x H):
-
25*10.5*2.5cm
-
Product Name:
-
Video Wall Controller
-
Material:
-
Steel
-
Input:
-
HDMI
-
Output:
-
4 HDMI
-
Power Supply:
-
AC-DC12V/2A
-
Frequency response:
-
30-60Hz
-
Feature:
-
Easy Operate
-
Output Interface Maximum Pixel Frequency:
-
165MHz
-
Weight:
-
2kg
-
Warranty:
-
12 Months/ 1 Year
Quick Details
-
Power:
-
24W
-
Frequency Range (Hz):
-
15-30HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
bitvisus
-
Model Number:
-
BIT-VWC-4K60-104
-
Dimension (L x W x H):
-
25*10.5*2.5cm
-
Product Name:
-
Video Wall Controller
-
Material:
-
Steel
-
Input:
-
HDMI
-
Output:
-
4 HDMI
-
Power Supply:
-
AC-DC12V/2A
-
Frequency response:
-
30-60Hz
-
Feature:
-
Easy Operate
-
Output Interface Maximum Pixel Frequency:
-
165MHz
-
Weight:
-
2kg
-
Warranty:
-
12 Months/ 1 Year
Product Description
Features

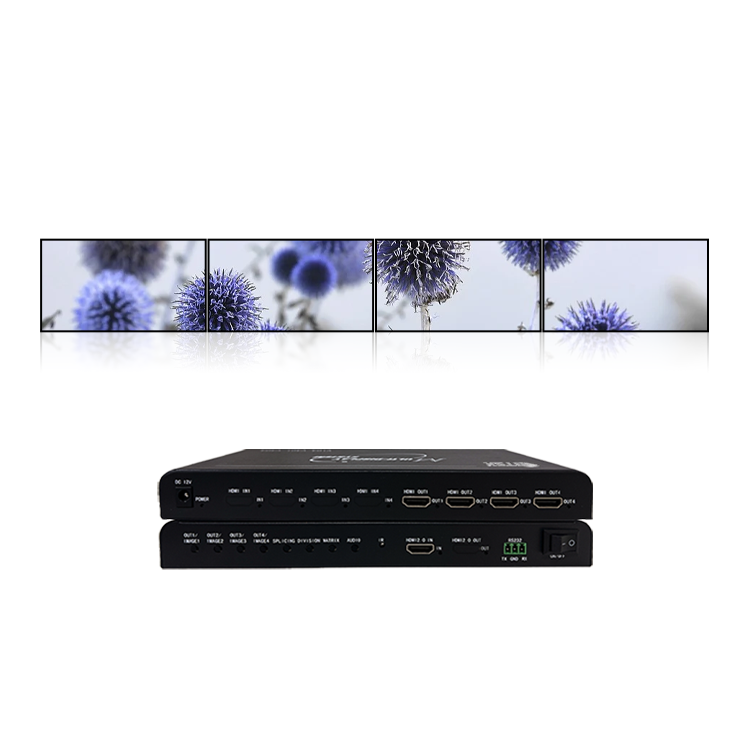

VWC-104 Video Wall Controller Features
BIT-VWC-4K60-104 is a high-performance image splicer. The product has a high-definition processing chip, supports 4K60 signal input and 1080P signal output, and adopts HDMI input interface and HDMI output interface. It is suitable for high-resolution desktop applications, large screen walls, engineering display applications, large advertising walls, LCD multi-screens, etc.
●Input supports HDMI 2.0, HDCP 1.4.
●Support any splicing mode below four screens.
●Supports arbitrary output 180-degree rotation and overall brightness adjustment.
●Pure hardware design, plug and play, no software required.
●Seamless switch splicing mode, button control, remote control.
●Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation is adopted, no external heat dissipation measures are required, and the reliability is extremely high.
Specification
|
Input Resolution
|
1920x1080@30/60Hz/3840x2160@30/60Hz
|
|
Factory Default Resolution
|
3840x2160@60Hz
|
|
Input Interface Maximum Video Pixel Frequency
|
600MHz
|
|
Output Resolution
|
1920x1080@60Hz
|
|
Output Interface Maximum Video Pixel Frequency
|
165MHz
|
|
Output Distance
|
15 Meters
|
|
IMAGE1 Button
|
1x1 Stitching Mode
|
|
IMAGE2 Button
|
1x2/2x1 Stitching Mode
|
|
IMAGE3 Button
|
1x3/3x1 Stitching Mode
|
|
IMAGE4 Button
|
1x4/4x1/2x2 Stitching Mode
|
|
SPLICING Button
|
Mode switching, looping through all modes
|
