Quick Details
-
Voltage:
-
AC380V
-
Power:
-
50Hz/60Hz(single phase)
-
Dimension(L*W*H):
-
1000*850*1420
-
Weight (KG):
-
600
-
Product name:
-
Pilot Freeze Dryer
-
Freeze Drying Area:
-
0.7m²
-
Shelf Temperature:
-
-50℃~+70℃(no-loading)
-
Cold Trap Temperature:
-
<-75℃(no-loading)
-
Vacuum Degree:
-
≤5Pa(no-loading)
-
Water Capture Capacity:
-
≥10kg
-
Cold Trap Volume:
-
14L
-
Cold Trap Size (Diameter*H):
-
200*460mm
-
Drying Chamber Size (W*D*H):
-
410*510*590mm
-
Qty. Of Shelf & Tray:
-
Shelf: 4+1; Tray: 4
Quick Details
-
Type:
-
Pilot Freeze Dryer
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Biobase
-
Voltage:
-
AC380V
-
Power:
-
50Hz/60Hz(single phase)
-
Dimension(L*W*H):
-
1000*850*1420
-
Weight (KG):
-
600
-
Product name:
-
Pilot Freeze Dryer
-
Freeze Drying Area:
-
0.7m²
-
Shelf Temperature:
-
-50℃~+70℃(no-loading)
-
Cold Trap Temperature:
-
<-75℃(no-loading)
-
Vacuum Degree:
-
≤5Pa(no-loading)
-
Water Capture Capacity:
-
≥10kg
-
Cold Trap Volume:
-
14L
-
Cold Trap Size (Diameter*H):
-
200*460mm
-
Drying Chamber Size (W*D*H):
-
410*510*590mm
-
Qty. Of Shelf & Tray:
-
Shelf: 4+1; Tray: 4
Product Overview

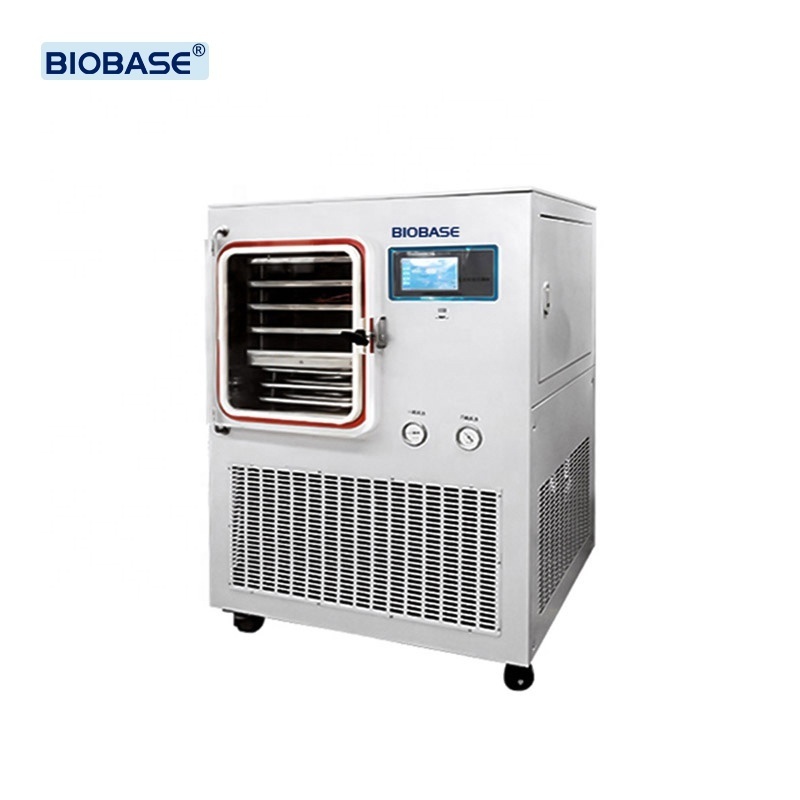

Pilot Freeze Dryer BK-FD50S BK-FD50T BK-FD100S BK-FD100T
Biobase vacuum freeze dryer (square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Model
|
|
|
BK-FD50S
(Standard) |
BK-FD50T
(Stoppering) |
BK-FD100S
(Standard) |
BK-FD100T
(Stoppering) |
|||||
|
Freeze Drying Area
|
|
|
0.7m²
|
0.5m²
|
1.04 m²
|
1.15m²
|
|||||
|
Shelf Temperature
|
|
|
-50℃~+70℃(no-loading)
|
|
|
|
|||||
|
Cold Trap Temperature
|
|
|
<-75℃(no-loading)
|
|
|
|
|||||
|
Vacuum Degree
|
|
|
≤5Pa(no-loading)
|
|
|
|
|||||
|
Water Capture Capacity
|
|
|
≥10kg
|
|
≥15kg
|
|
|||||
|
Cold Trap Volume
|
|
|
/
|
70L
|
|
|
|||||
|
Cold Trap Size (Diameter*H)
|
|
|
/
|
Φ400*560mm
|
|
|
|||||
|
Drying Chamber Size (W*D*H)
|
|
|
410*510*590mm
|
620*510*580mm
|
410*580*520mm
|
700*590*760mm
|
|||||
|
Shelf & Tray Size
(W*D*H) |
|
|
Shelf: 480*360*18mm
Tray: 475*355*25mm |
Shelf: 410*410*18mm
Tray: 405*405*25mm |
Shelf: 480*360*18mm
Tray: 475*355*25mm |
Shelf: 480*600*18mm
Tray: 475*595*25mm |
|||||
|
Qty. Of Shelf & Tray
|
|
|
Shelf: 4+1; Tray: 4
|
Shelf: 3+1; Tray: 3
|
Shelf: 6+1; Tray: 6
|
Shelf: 4+1; Tray: 4
|
|||||
|
Sample Loading Capacity (Liquid)
|
|
|
7L
|
5L
|
10L
|
11L
|
|||||
|
Height Between Trays
|
|
|
70mm
|
|
|
100mm
|
|||||
|
Tray Temperature Difference
|
|
|
±1℃
|
|
|
|
|||||
|
Refrigerant
|
|
|
R404A + R23
|
|
|
|
|||||
|
Condenser Cooling Mode
|
|
|
Air cooling
|
|
|
|
|||||
|
Defrost Mode
|
|
|
Natural defrosting(optional electric defrosting)
|
Electric defrosting
|
Electric defrosting
|
Electric defrosting
|
|||||
|
Stoppering Mode
|
|
|
/
|
Automatic
|
/
|
Automatic
|
|||||
|
Can Load Vials Qty
|
Φ20mm
|
|
/
|
1050
|
/
|
2460
|
|||||
|
|
Φ18mm
|
|
/
|
2058
|
/
|
4788
|
|||||
|
|
Φ12mm
|
|
/
|
3075
|
/
|
8624
|
|||||
|
Vacuum Pump
|
|
|
8L/S(29m³/h)
|
|
15L/S(54m³/h)
|
|
|||||
|
Electric Defrosting Consumption
|
|
|
/
|
1000W
|
1500W
|
|
|||||
|
Silicone Oil Heating Rods Consumption
|
|
|
1000W
|
|
1600W
|
|
|||||
|
Hydraulic Pressure Station Consumption
|
|
|
/
|
1000W
|
/
|
1500W
|
|||||
|
Total Consumption
|
|
|
5.5KW
|
6.5KW
|
6.5KW
|
7.5KW
|
|||||
|
Power Supply
|
|
|
AC380V, 50Hz/60Hz(three phase); BK-FD50S: AC220V, 50Hz/60Hz(single phase)
|
|
|
|
|||||
|
Main Body Weight
|
|
|
600kg
|
800kg
|
700kg
|
1000kg
|
|||||
|
External Size
(W*D*H)mm |
|
|
1000*850*1420
|
1490*850*1620
|
1170*830*1665
|
1640*1100*1630
|
|||||
|
Packing Size (W*D*H)mm
|
|
Main Body
|
1130*980*1620/565kg
|
1600*1040*2040/800kg
|
1320*990*1855/900kg
|
1800*1250*2100/1200kg
|
|||||
|
Gross Weight
|
|
Vacuum Pump
|
790*330*445(73kg)
|
830*370*600(88kg)
|
785*455*300(95kg)
|
800*500*500(70kg)
|
|||||
