Quick Details
-
Place of Origin:
-
Guangdong, China
-
Color:
-
black wireless ip phone
-
line:
-
2 line wireless ip phone
-
protocal:
-
SIP Protocal wireless ip phone
-
support:
-
POE and VPN wireless ip phone
-
Screen:
-
LCD 2.4 inch (320x240) Color Screen
-
Industrial Standard Certifications:
-
CE/FCC wireless ip phone
-
Voice Codec:
-
G.711a/u, G.723.1, G.726-32K, G.729AB, G.722
-
Ethernet Interface:
-
10/100Mbps(S4P), 10/100/1000Mbps(S4G) Ethernet
-
Interface:
-
2 RJ9, 1 Handset, 1 Headphone, 1 RJ11 EXT port, 2 RJ45, 1 PC
-
warranty:
-
12 monthes
-
Certification:
-
None
Quick Details
-
Type:
-
VoIP Phone
-
Brand Name:
-
TYH
-
Model Number:
-
X3
-
Place of Origin:
-
Guangdong, China
-
Color:
-
black wireless ip phone
-
line:
-
2 line wireless ip phone
-
protocal:
-
SIP Protocal wireless ip phone
-
support:
-
POE and VPN wireless ip phone
-
Screen:
-
LCD 2.4 inch (320x240) Color Screen
-
Industrial Standard Certifications:
-
CE/FCC wireless ip phone
-
Voice Codec:
-
G.711a/u, G.723.1, G.726-32K, G.729AB, G.722
-
Ethernet Interface:
-
10/100Mbps(S4P), 10/100/1000Mbps(S4G) Ethernet
-
Interface:
-
2 RJ9, 1 Handset, 1 Headphone, 1 RJ11 EXT port, 2 RJ45, 1 PC
-
warranty:
-
12 monthes
-
Certification:
-
None

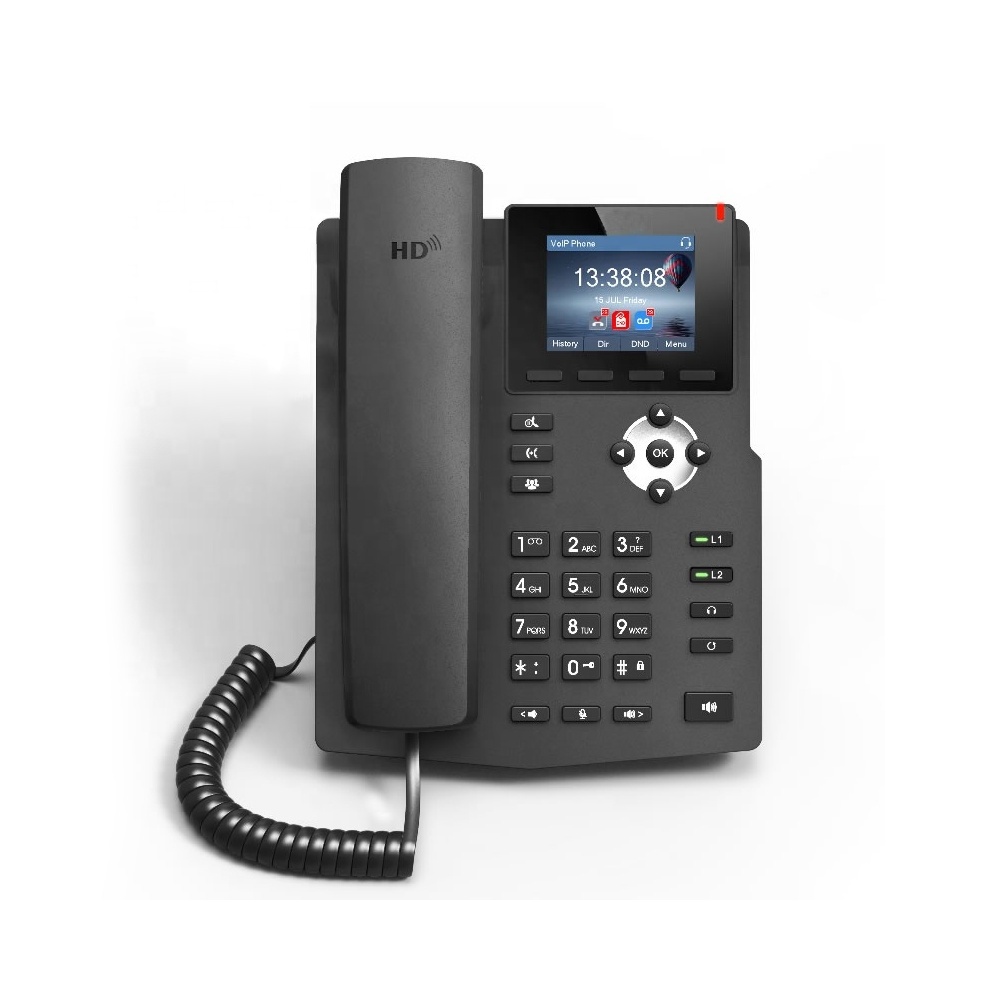

Voip phone 2 Sip Line POE Supports Voip Phone Desk Business IP Phone
Series Specifications ComparisonVoip phone 2 Sip Line POE Supports Voip Phone Desk Business IP Phone
|
Model |
Screen |
Handset |
Ethernet |
PoE |
Power Adapter |
|
X3S |
2.4” |
HD |
10/100Mbps |
× |
√ |
|
X3SP |
2.4” |
HD |
10/100Mbps |
√ |
√ |
|
X3G |
2.8” |
HD |
10/100/1000Mbps |
√ |
√ |
Picture details:
Series OEM Option
Log o( Cover plate Logo, LCD logo dis played )
On Animation
Web UI
Packaging Design
Generic
l 2 SIP Line
l HD Voice
l POE Enabled
l 2.4” color screen
l Handset(HS) / Hands-free(HF) / Headphone(HP) mode (EHS support for Plantronics headsets)
l Intelligent DSS Keys
l Desktop / Wall-mount installation
l Optional External Power Supply
l Economical and Environmental friendly package
l Industrial Standard Certifications: CE/FCC
Call Features
l Call out / answer / reject
l Mute / Unmute (microphone)
l Call Hold / Resume
l Call Waiting
l Intercom
l Caller ID Display
l Speed Dial
l Anonymous Call (Hide Caller ID)
l Call Forwarding (Always/Busy/No Answer)
l Call Transfer(Attended/Unattended)
l Call Parking / Pick-up (depending on server)
l Redial/Auto-Redial
l Do-Not-Disturb (per line / per phone)
l Auto-Answering (per line)
l Voice Message (on server)
l Local 3-way Conference
l Hot Line
l Hot-Desking
Phone Features
l Phonebook (500 entries)
l Remote Phonebook (XML/LDAP)
l Call log (100 entries, in/out/missed)
l Black/White List Call Filtering
l Voice Message Waiting Indication (VMWI)
l Programmable DSS/Soft keys
l Network Time Synchronization
l Action URL / Active URI
Audio
l HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
l Wideband ADC/DAC 16KHz Sampling
l Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
l Wideband CODEC: G.722
l Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
l Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /
Background Noise Estimation (BNE) / Noise Reduction (NR)
l Packet Loss Concealment (PLC)
l Dynamic Adaptive Jitter Buffer up to 300ms
l DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Networking
l 10/100Mbps(S4P), 10/100/1000Mbps(S4G) Ethernet, dual bridged port for PC bypass
l IP Configuration: Static / DHCP / PPPoE
l Network Access Control: 802.1x
l VPN: L2TP (Basic Unencrypted) / OpenVPN
l VLAN
l QoS
Protocols
l SIP2.0 over UDP/TCP/TLS
l RTP/RTCP/SRTP
l STUN
l DHCP
l PPPoE
l 802.1x
l L2TP (Basic Unencrypted)
l OpenVPN
l SNTP
l FTP/TFTP
l HTTP/HTTPS
l TR069
RFCs:
354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976
/3261/3262/3263/3264/3265/3268/3311/ 3489/3711/4346/4566/5630/5865
Deployment & Maintenance
l Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
l Web Management Portal
l Web-based Packet-dump
l Configuration Export / Import
l Phonebook Import/Export
l Firmware Upgrade
l syslog
Physical Specifications
l LCD: 2.4 inch (320x240) color-screen
l Keypad: 39 keys, including 8 DSS key with tri-color LED 4 Soft-keys
7 Function keys
4 Navigation keys + 1 OK key 12 Standard Phone Digits keys
2 Volume Control keys, Up/Down 1 Hands-free key
l HD Hands-free Speaker (0 ~ 7KHz) x1
l HD Hands-free Microphone (0 ~ 7KHz) x1
l HD Handset (RJ9) x1
l Standard RJ9 Handset Wire x1
l 1.5M CAT5 Ethernet Cable x1
l RJ9 Phone port x2: Handset x1, Headphone x1
l RJ11 EXT port x1: Extension Module x1
l RJ45 Ethernet Port x2: Network x1 (S4P-802.3AF POE Class 1),
(S4G-802.3AF POE Class 2),
l PC x1 (Bridged to Network)
l Main Chipset: Broadcom
l DC Power Input: (S4 and S4P) 5V / 0.6A
(S4G) 5V / 1A
l Power Consumption: (S4P) Idle –~1.3W, Peak – ~4.3W
(S4G) Idle – ~1.7W, Peak – ~5.7W
l Working Temperature: 0~40 ℃
l Working Humidity: 10~65%
l Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
l Color: Black
l Gift Box Dimensions: 260x255x62mm (L x W x H)
l Outer CTN Dimensions: 530x330x280mm (10 PCS)
