Quick Details
-
Product Weight（kg）:
-
0.1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Deplux or customer design
-
Fluorescent lamp:
-
T8 26mm tube
-
Watts:
-
10W 15W 18W 25W 30W 36W 58W
-
Voltage:
-
110V / 220V
-
Frequency:
-
50/60Hz
-
Color temperature:
-
2700K-12000K or other
-
Lifetime:
-
15000hrs
-
base:
-
G13
-
Tube dia.:
-
26mm
-
Leadtime:
-
within 15 to 25 working days
-
Quality:
-
IEC standards
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
60
-
Warranty(Year):
-
1-Year
-
Shape:
-
Straight
-
Product Weight（kg）:
-
0.1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Deplux or customer design
-
Fluorescent lamp:
-
T8 26mm tube
-
Watts:
-
10W 15W 18W 25W 30W 36W 58W
-
Voltage:
-
110V / 220V
-
Frequency:
-
50/60Hz
-
Color temperature:
-
2700K-12000K or other
-
Lifetime:
-
15000hrs
-
base:
-
G13
-
Tube dia.:
-
26mm
-
Leadtime:
-
within 15 to 25 working days
-
Quality:
-
IEC standards

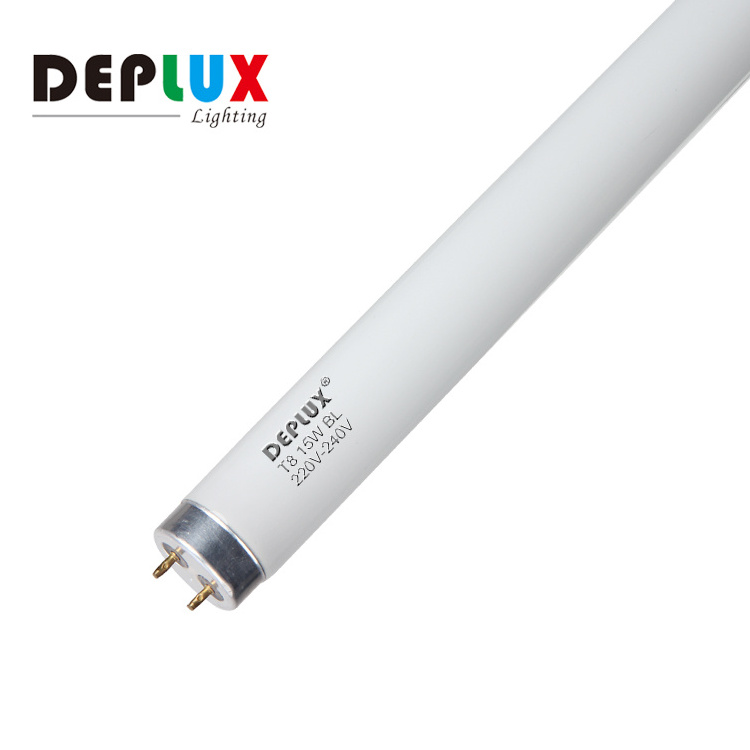

F10T8 F15T8 F17T8 F18T8 F25T8 F30T8 F36T8 F58T8 BL blacklight Fluorescent tube lamp
T8 halogen lamp T8 triphosphor fluorescent lamp T8 Standard halophosphate fluorescent lamp
Available lists:( OEM/ODM acceptable)
- Rapid start fluorescent tube
- Instand start fluorescent tube
- Full spectrum fluorescent tube
- Photocatalyst fluorescent tube
- High CRI fluorescent tube
- Advertisement fluorescent tube (7500K)
- Butcher fluorescent tube
- Blacklight blue fluorescent tube
- Germicial tube
- Solarium fluorescent tube
- Blacklight fluorescent tube
- Mosquito fluorescent tube
- Natural light growth fluorescent tube
- Plant growth fluorescent tube
- Coral blue fluorescent tube
- Reptile growth fluorescent tube
- Linear tube
- Circular fluorescent tube
Features:
1-use triphosphor fluorescent powder, good lighting effect, small color difference.CRI up to above 82, the illuminated object looks more true and eye will feel more comfortable.
2-Daylight, Coolwhite and warmwhite are optional for different requirements on color temperature.
3-Advanced water-powder coating technique, which increases efficiency of light and reduces light attenuation
4-Additional cathode protection ring at two ends of the tube prevents the tube end from black.
5-use triplewire filament to ensure sufficient electron powder and prolong service life.
6-special tube dia. of 25.5mm can be quickly start under low temperature
7-High lumen retaining rate and small light attenuation
|
Watts(W) |
A(mm) |
B(mm)max |
B(mm)min |
C(mm) |
Dia.(mm) |
Pct/Ctn |
Meas.(cm) |
G.W.(kgs) |
N.W.(kgs) |
|
10W |
331.3 |
338.4 |
335.8 |
345.5 |
26 |
200 |
57.5X36.5X30 |
14 |
12 |
|
15W |
437.4 |
444.5 |
442.1 |
451.6 |
26 |
100 |
47X30.5X31 |
8.5 |
7.3 |
|
18W |
589.8 |
596.9 |
594.5 |
604.0 |
26 |
100 |
62.5X30.5X31 |
12.5 |
10 |
|
30W |
894.6 |
901.7 |
899.3 |
908.8 |
26 |
25 |
92.5X16X16.5 |
4.5 |
3.7 |
|
36W |
1199.4 |
1206.5 |
1204.1 |
1213.6 |
26 |
25 |
123X16X16.5 |
5.6 |
4.6 |
|
58W |
1500.0 |
1507.1 |
1504.7 |
1514.2 |
26 |
25 |
153X16X16.5 |
7 |
5.5 |
|
Type |
Watts(W) |
Current(A) |
Min(V) |
Voltage rating(V) |
Max(V) |
Luminous(Lm) |
Lifespan(hrs) |
Socket |
|
10W/DL/CW/WW |
10W |
0.220 |
44 |
52 |
60 |
350/380/380 |
8000 |
G13 |
|
15W/DL/CW/WW |
15W |
0.310 |
46 |
55 |
64 |
900/970/970 |
8000 |
G13 |
|
18W/DL/CW/WW |
18W |
0.370 |
50 |
57 |
64 |
1450/1480/1560 |
8000 |
G13 |
|
30W/DL/CW/WW |
30W |
0.365 |
86 |
96 |
106 |
2300/2400/2540 |
8000 |
G13 |
|
36W/DL/CW/WW |
36W |
0.430 |
93 |
103 |
113 |
3200/3350/3450 |
8000 |
G13 |
|
58W/DL/CW/WW |
58W |
0.670 |
100 |
110 |
120 |
5000/5300/5400 |
8000 |
G13 |
