Quick Details
-
Model Number:
-
FLQ911F-16P
-
Brand Name:
-
Fols
-
Product name:
-

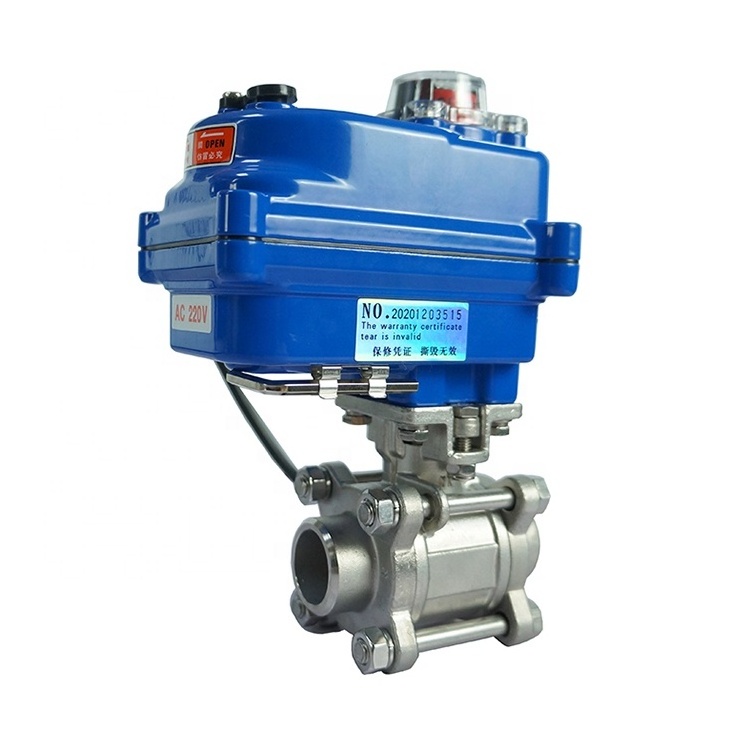

Electric 3 piece ball valve
-
Size Range:
-
1/2"~100", DN15~DN80
-
Structure type:
-
Floating ball core Valve components
-
Connection type:
-
Thread
-
Threaded Connection:
-
Thread, Clamp, Butt welding
-
Pressure class:
-
PN16-PN4.0MPa
-
Body material:
-
WCB, 304, 316, 316L
-
Stem material:
-
304
-
Core material:
-
304, 316, 316L
-
Medium:
-
Water, Air, Gas, Oil, Liquid, Steam
Quick Details
-
Port Size:
-
Standard
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FLQ911F-16P
-
Brand Name:
-
Fols
-
Product name:
-
Electric 3 piece ball valve
-
Size Range:
-
1/2"~100", DN15~DN80
-
Structure type:
-
Floating ball core Valve components
-
Connection type:
-
Thread
-
Threaded Connection:
-
Thread, Clamp, Butt welding
-
Pressure class:
-
PN16-PN4.0MPa
-
Body material:
-
WCB, 304, 316, 316L
-
Stem material:
-
304
-
Core material:
-
304, 316, 316L
-
Medium:
-
Water, Air, Gas, Oil, Liquid, Steam
Product Description
|
Size Range
|
1/2"~100", DN15~DN80
|
|
|
||
|
Operating Pressure
|
1.6MPa
|
|
|
||
|
Control Mode
|
On Off Type / Modulating Type
|
|
|
||
|
Optional Voltage
|
DC12~24V (±10%), AC110-220V, 50/60Hz
|
|
|
||
|
Body Material
|
WCB, 304, 316, 316L
|
|
|
||
|
Bal Material
|
WCB, 304, 316, 316L
|
|
|
||
|
Sealing Material
|
EPDM, PTFE, PPL
|
|
|
||
|
Threaded Connection
|
Thread, Clamp, Butt welding
|
|
|
||
|
Applicable Media
|
Control of Water, Air, Gas, Oil, Liquid, Steam
|
|
|
||
|
Optional Accessories
|
Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
|
|
|
||
|
Application
|
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination,Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
|
|
|
||
Specification
Electric 3 piece ball valve is equipped with FOLS series electric actuator, it needn’t extra servo amplifier, accept 4-20mA or 1-5V DC input signal to regulating the medium. The 3 piece design ball valve is characterized by strong function, small volume, light weight, reliable performance, simple equipment, strong flow capacity, especially suitable for the medium that contain slurry, fiber, widely used in paper making, sugar industry, petroleum, chemistry, metallurgy, air-condition, fire protection, water supply and industrial automation and so on. Integrated structure electric three-piece ball valve match with FOLS Electric actuator, and can be run with input(4-20mA DC, 0-10VDC or 1-5V) signals or single-phase power. With the function of small volume, flow capacity, high regulation precision, good sealing, and light weight,ect. The valve is widely used in food, environmental protection, light industry, petroleum, paper, chemicals, teaching and research equiment, and electric power industrial automation control systems.
Features
Thread and bult welded connection ball valve can be divided into 1-piece, 2-piece, 3-piece. Boby cast adopt the advanced
technology from Taiwan, with reasonable structure and beautiful shape. The elastic sealing structure make the seat
reliable and easy to start. Valve steam seal downloading using inverted structure. The lower-loading stem with backward sealing construction not only prevents the handle form backing-out but also ensures the reliability of the scaling part if the handle. There is bult weld(WB). socket welding(SW) connection of the 2-piece, 3-piece ball valve and can match with the international standard ISO platform and locking devices.
Electric actuator ( Optional)
|
Type
|
Control Type
|
Function
|
|
(optional) |
ON-OFF type
|
Feedback: the active signal, passive contact signal, resistance,
4-20mA
|
|
|
Regulation type
|
Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
|
|
|
Filed operation
|
The field, remote control switch regulation and MODBUS, PROFIBUS field bus
|
