Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUABO
-
Model Number:
-
1.0mm
-
Thickness:
-
0.1mm-3.0mm
-
Width:
-
1-6m
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUABO
-
Model Number:
-
1.0mm
-
Thickness:
-
0.1mm-3.0mm
-
Width:
-
1-6m
Products Description

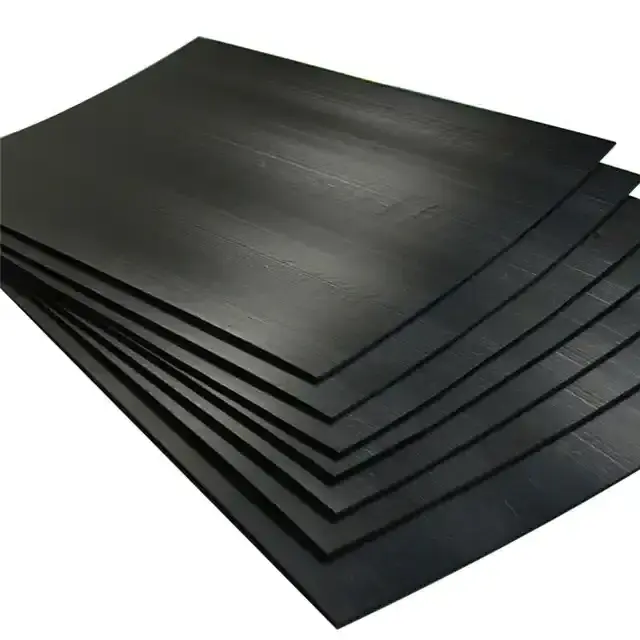

Geomembrane
Geomembrane is made by blowing and molding high polymer materials such as polyethylene. According to the production raw materials, it can be divided into low-density polyethylene (LDPE) geomembrane, high-density polyethylene (HDPE) geomembrane, and EVA geomembrane. This type of product has high strength, aging resistance, good welding performance, and convenient construction.
|
Geomembrane ordinary high-density polyethylene geomembrane
|
|
|
|
|
|
|
|
|
|
|||||||||
|
project
|
metric
|
|
|
|
|
|
|
|
|
|||||||||
|
thickness (mm)
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|||||||||
|
density (g/cm³)
|
≥0.940
|
|
|
|
|
|
|
|
|
|||||||||
|
Tensile fracture strength (longitudinal and transverse)(N/mm)
|
≥4
|
≥7
|
≥10
|
≥13
|
≥16
|
≥20
|
≥26
|
≥33
|
≥40
|
|||||||||
|
Tensile fracture strength (longitudinal and transverse) (N/mm)
|
≥6
|
≥10
|
≥15
|
≥20
|
≥25
|
≥30
|
≥40
|
≥50
|
≥60
|
|||||||||
|
Yield elongation rate (vertical, horizontal) (%)
|
≥11
|
|
|
|
|
|
|
|
|
|||||||||
|
Elongation (vertical and transverse)(%)
|
≥600
|
|
|
|
|
|
|
|
|
|||||||||
|
Right-angle tear load (longitudinal and transverse)（N)
|
≥34
|
≥56
|
≥84
|
≥115
|
≥140
|
≥170
|
≥225
|
≥280
|
≥340
|
|||||||||
|
Anti-puncture intensity (N)
|
≥72
|
≥120
|
≥180
|
≥240
|
≥300
|
≥360
|
≥480
|
≥600
|
≥720
|
|||||||||
|
Carbon black content (%)
|
2.0-3.0
|
|
|
|
|
|
|
|
|
|||||||||
|
Carbon black dispersion
|
No more than 1 of 10 data, and levels 4 and 5 are not allowed
|
|
|
|
|
|
|
|
|
|||||||||
|
Induction time of atmospheric pressure oxidation (OIT) (min)
|
≥60
|
|
|
|
|
|
|
|
|
|||||||||
|
Low-temperature impact brittlement performance
|
pass through
|
|
|
|
|
|
|
|
|
|||||||||
|
Vapor permeability coefficient (g ·cm/(cm2 · s ·Pa))
|
≤1.0×10-13
|
|
|
|
|
|
|
|
|
|||||||||
|
dimensional stability (%)
|
±2.0
|
|
|
|
|
|
|
|
|
|||||||||
Stable performance
Has excellent environmental stress resistance, cracking performance, chemical corrosion resistance, and long service life
Waterproof and anti-seepage measures
The plastic film in the geomembrane has excellent waterproof, impermeable, and impermeable properties
Widely used
Mainly used for anti-seepage engineering in channels, sewage treatment tanks, dock engineering, river embankments, reservoirs, lake dams, subways, landfill sites, etc.
