Quick Details
-
Jacket:
-
PVC/PE
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huadong
-
Model Number:
-
armoured cable
-
Hot Sale Size:
-
70mm, 120mm,400mm,95mm
-
Other Core:
-
1 Core, 2 Core, 3 Core, 4 Core, 5 Core
-
Armour:
-
SWA, STA, AWA,ATA
-
Certificate:
-
ISO9001/CCC
-
MOQ:
-
1000m
-
Standard:
-
IECA, BS, DIN,
-
Sample:
-
Contact to get free sample
-
Specification:
-
Will send with price to your email
-
Warranty:
-
100%quanlified
-
Price:
-
Get within 12 hours
Quick Details
-
Insulation Material:
-
PVC/XLPE
-
Application:
-
Underground, Construction
-
Conductor Material:
-
Copper/Aluminum
-
Jacket:
-
PVC/PE
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huadong
-
Model Number:
-
armoured cable
-
Hot Sale Size:
-
70mm, 120mm,400mm,95mm
-
Other Core:
-
1 Core, 2 Core, 3 Core, 4 Core, 5 Core
-
Armour:
-
SWA, STA, AWA,ATA
-
Certificate:
-
ISO9001/CCC
-
MOQ:
-
1000m
-
Standard:
-
IECA, BS, DIN,
-
Sample:
-
Contact to get free sample
-
Specification:
-
Will send with price to your email
-
Warranty:
-
100%quanlified
-
Price:
-
Get within 12 hours

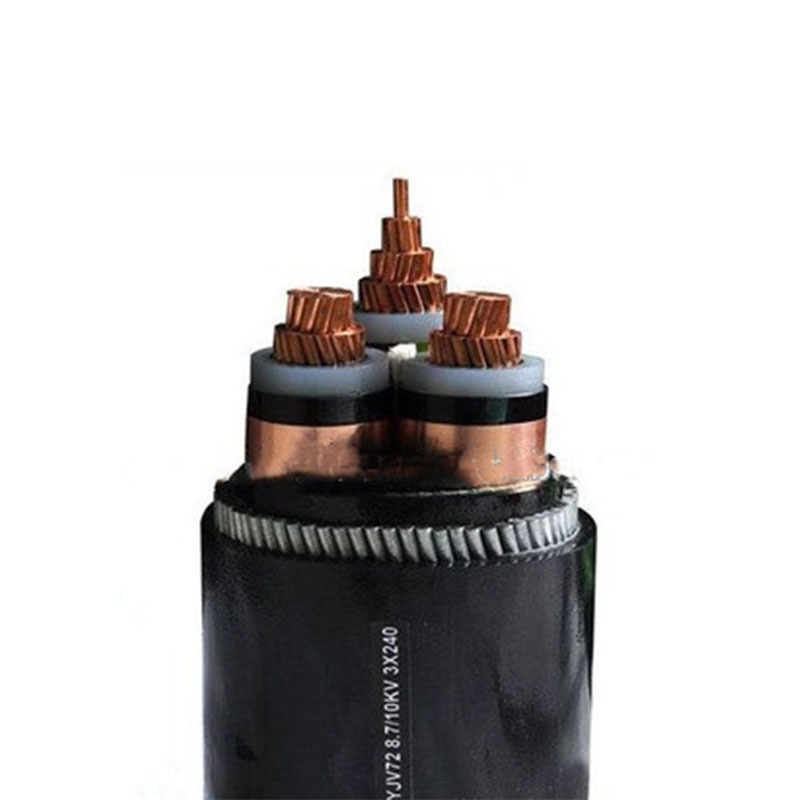

11kv 15kv 3 Core 95mm 120mm 150mm 185mm 240mm Xlpe Cable Copper MV Underground Xlpe Power Cable
Product Description
Product Description
Armoured 3core XLPE insulated MV, reduced flame propagation (FR) cable. Rated voltage 12.7/22 KV (Um=24KV)
DESCRIPTION
Electric cable with copper conductors, semiconductive conductor screen, XLPE insulation, semiconductive insulation screen, copper tape metallic screen of each core, PVC bedding, galvanized steel wires armour (SWA) and PVC outer sheath, black with red stripe.
Application
The cable is suitable for rated voltage 12/20KV (Um=24 KV) according to IEC 605022
Design
1. copper conductor
2. semiconductive conductor screen
3. XLPE insulation
4. semiconductive insulation screen
5. semiconductive tape
6. copper tape metallic screen
6. PVC bedding
7. galvanized steel wires armour
8. PVC outer sheath
Single core cables are with Aluminium wires armour (AWA) with designation: CU/ XLPE/CTS/PVC/AWA/PVC 12.7/22 KV
