BMS for over charge protection, Over discharge protection, Over current protection, Cell balancing, Temperature protection CAN and RS485 communication.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
29KG
-
Energy:
-
5KW/10KW/15KW/ customized
-
Size:
-
440*750*270mm
-
Module:
-
16pcs 280Ah Lifepo4 battery
-
Cycle life:
-
>6000times @ 80%DOD
-
Accessories:
-
Busbar,BMS,Heat insulation sheet,LCD,screw
-
Nominal Voltage:
-
51.2V
-
Battery pack type:
-
stackable
-
BMS:
-
16S 200A
-
Communication:
-
CANBUS, RS485, UART
Quick Details
-
Model Number:
-
Xinry 280 diy kit
-
Brand Name:
-
Xinry
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
29KG
-
Energy:
-
5KW/10KW/15KW/ customized
-
Size:
-
440*750*270mm
-
Module:
-
16pcs 280Ah Lifepo4 battery
-
Cycle life:
-
>6000times @ 80%DOD
-
Accessories:
-
Busbar,BMS,Heat insulation sheet,LCD,screw
-
Nominal Voltage:
-
51.2V
-
Battery pack type:
-
stackable
-
BMS:
-
16S 200A
-
Communication:
-
CANBUS, RS485, UART
Product Description

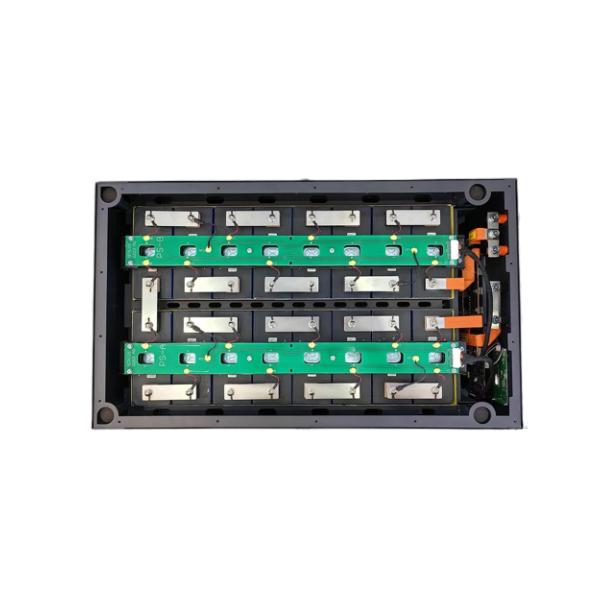

Battery Box 10kwh 15kwh 51.2v 16S DIY Kit Batteries Cell for 280Ah LiFePO4 battery
1. Products can be matched with many inverter brands at home and filed, with strong applicability.
2. High quality safety certification support services and design, can quickly provide design solutions according to customer requirements.
1. Products can be matched with many inverter brands at home and filed, with strong applicability.
2. High quality safety certification support services and design, can quickly provide design solutions according to customer requirements.
OEM & ODM
1. MOQ: 1Kit, If need more, send us your zip code and the quantity for quotation.
3. Quality: Battery voltage, internal resistance and capacity are well tested before delivery.
4. Package: All batteries are good packing with thicker carton box and foam.
3. Quality: Battery voltage, internal resistance and capacity are well tested before delivery.
4. Package: All batteries are good packing with thicker carton box and foam.
16S 200A BMS
Parts List
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS
1 * 58V 400A Fuse
1 * 48V 200A 16S SEPLOS BMS
1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
