Quick Details
-
Production Capacity:
-
65bag/min
-
Weight (KG):
-
570
-
Voltage:
-
220v, 50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wilpac
-
Dimension(L*W*H):
-
1400mm*1320mm*2040mm
-
Product name:
-

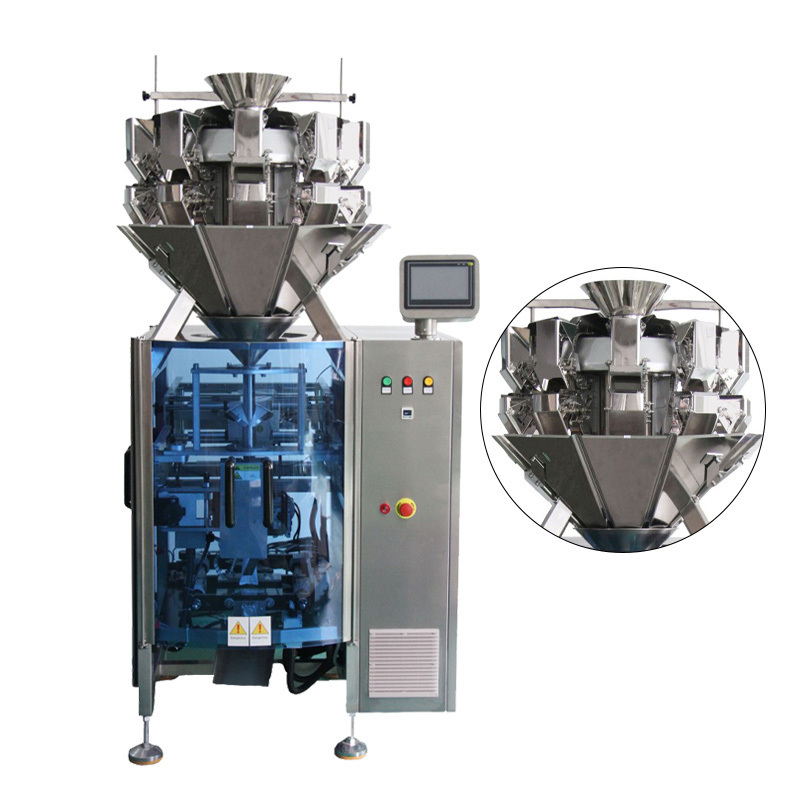

MP-MC series weighing & packing 2 in 1 machine
-
Weigher heads:
-
10 Heads
-
Max single dump cap(g):
-
1-60g
-
Weighing accuracy:
-
X(0.5)
-
Maximum weighing speed:
-
60WPM
-
Volume:
-
0.3L / 0.5L
-
Film width:
-
120~360mm
-
Bag size:
-
L*W=(40~250)mm*(50~170)mm
-
Gas Pressure:
-
0.2~0.8MPa
-
Gas consumption:
-
0.5m3/min
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Bags, Film, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Production Capacity:
-
65bag/min
-
Weight (KG):
-
570
-
Voltage:
-
220v, 50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wilpac
-
Dimension(L*W*H):
-
1400mm*1320mm*2040mm
-
Product name:
-
MP-MC series weighing & packing 2 in 1 machine
-
Weigher heads:
-
10 Heads
-
Max single dump cap(g):
-
1-60g
-
Weighing accuracy:
-
X(0.5)
-
Maximum weighing speed:
-
60WPM
-
Volume:
-
0.3L / 0.5L
-
Film width:
-
120~360mm
-
Bag size:
-
L*W=(40~250)mm*(50~170)mm
-
Gas Pressure:
-
0.2~0.8MPa
-
Gas consumption:
-
0.5m3/min
Products Description
|
Model No.
|
WP-MC361003(05)
|
WP-MC461016(25)
|
WP-MC561016(25)
|
|
Weigher Heads
|
10 heads
|
10 heads
|
10 heads
|
|
Weighing Accuracy
|
X(0.5)
|
X(0.5)
|
X(0.5)
|
|
Volume
|
0.3L/0.5L
|
1.6L/2.5L
|
1.6L/2.5L
|
|
Film Width
|
120-360mm
|
140-460mm
|
160-560mm
|
|
Max. Packing Speed
|
65bag/min
|
60bag/min
|
60bag/min
|
|
Power Requirement
|
3.7KW/220V/50(60)Hz
|
4.1KW/220V/50(60)Hz
|
4.5KW/220V/50(60)Hz
|
|
Gas Consumption
|
0.2-0.8MPa
|
0.2-0.8MPa
|
0.2-0.8MPa
|
|
Gas Pressure
|
0.5m³/min
|
0.6m³/min
|
0.6m³/min
|
|
Machine Size
|
L*W*H=1400mm*1320mm*2040mm
|
L*W*H=1766mm*1246mm*2163mm（1.6L） L*W*H=1780mm*1260mm*2480mm（2.5L）
|
L*W*H=2266mm*1416mm*2538mm
|
|
Machine Weight
|
570Kg(0.3L)
580kg（0.5L)
|
786Kg(1.6L)
820kg（2.5L)
|
870Kg(1.6L)
900kg（2.5L)
|
|
Bag Size
|
L*W=(40-250)MM*(50-170)MM
|
L*W=(40-300)MM*(60-220)MM
|
L*W=(40-350)MM*(70-270)MM
|
