Quick Details
-
Voltage:
-
AC220V/110V, Single Phase
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HENGYUAN
-
Dimension(L*W*H):
-
55x35x60cm
-
Weight:
-
35 KG
-
Machinery Capacity:
-
600-1800BPH
-
Product name:
-

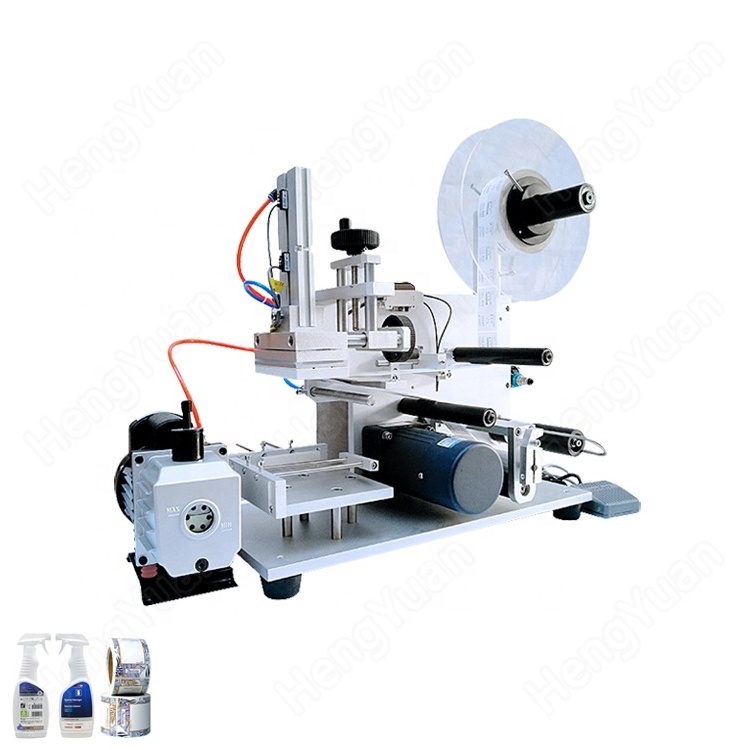

Semi-automatic Plane Labeling Machine
-
Function:
-
Stick lables on plane surface
-
Objects:
-
Bottle, box, cap, pouch, etc.
-
Label material:
-
Self-adhesive sticker label
-
Label accuracy:
-
≤±1mm
-
Label Roll inner diameter:
-
75mm
-
Label Roll outer diameter:
-
250mm
-
Control:
-
Buttons+Motor+Sensor
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Application:
-
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Textiles
-
Packaging Type:
-
Bottles
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Voltage:
-
AC220V/110V, Single Phase
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HENGYUAN
-
Dimension(L*W*H):
-
55x35x60cm
-
Weight:
-
35 KG
-
Machinery Capacity:
-
600-1800BPH
-
Product name:
-
Semi-automatic Plane Labeling Machine
-
Function:
-
Stick lables on plane surface
-
Objects:
-
Bottle, box, cap, pouch, etc.
-
Label material:
-
Self-adhesive sticker label
-
Label accuracy:
-
≤±1mm
-
Label Roll inner diameter:
-
75mm
-
Label Roll outer diameter:
-
250mm
-
Control:
-
Buttons+Motor+Sensor
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Introduction
Suitable for uneven surface labeling by changing the label overlaying mechanism, such as the labeling on concave surface and circle-arc surface.
Suitable for labeling on various irregular-shaped bottle by changing fixtures.
Optional ribbon print coder or ink-jet printer, to print production date and batch number on the label, achieving coding -labeling integration.
Semi-automatic plane label applicator is widely used daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.
Operation process
Manual operation:
put bottle to the machine→press foot switch→press top mechanism go down, press the bottle→come out a label→labeling→standard labeled→press top mechanism go up→take out the bottle
Automatic operation:
put bottle to the machine→test object electric eyes detect has a bottle in place→press top mechanism go down, press the bottle→come out a label→labeling→standard labeled→press top mechanism go up→take out the bottle
Application Desktop flat surface labeler, Semi-automatic plane labeling machine, De Icer Flat Bottle Labeler, packaging box plane label applicator, bottle caps label applicator, plastic shell sticker labeling machine, flat boxes label applicator, book surface labeling machine, cream lid top label applicator, electronic component top surface label applicator etc.
|
Technical Parameters
|
|
|
|
Labeling capacity
|
0~30pcs/min
|
|
|
Labeling accuracy
|
±1 mm
|
|
|
Label material
|
Adhesive sticker
|
|
|
The inner diameter of label roll
|
76 mm
|
|
|
The outer diameter of label roll
|
240 mm(max)
|
|
|
The suitable size of label
|
Width 15-150 mm, length 15-100 mm
|
|
|
The suitable size of labeling objects
|
Width 20-150 mm, Length 20-200 mm, Thickness: 0.2mm ~ 120mm
|
|
|
Total Power
|
60w
|
|
|
Power supply
|
AC220V/110V, Single phase. Globally customized
|
|
|
Net weight
|
About 35kg
|
|
|
Machine size
|
55(L)x35(W)x60(H)cm
|
|
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
70 (L) *45(W) * 75 (D)
|
|
|
Weight
|
50KG
|
|
|
Packaging Details
|
1.The machine is packed by PE film first. Then packed in wooden box.
2. For full container load, we will use pallet. If container is too tight, we will use pe film for packing or pack it according to customers special request. |
|
