1. The entire machine adopts carbon steel square frame welding, and the surface of the sheet metal is electrostatically sprayed with baking paint.
2. Applicable maximum product size is 150 * 80mm.
3. Manually place the product on a flat surface, without paying special attention to positioning. After starting the device, it will automatically work against the device.
4. Ultrasonic welding action, the robotic arm automatically pulls out the product.
- Product Details
- {{item.text}}
Quick Details
-
Frequency:
-
20KHz
-
Welding Area:
-
Customized
-
Dimensions:
-
800mm *900mm * 1800mm
-
Usage:
-
Plastic Welding
-
Weight (KG):
-
250 KG
-
Power (kW):
-
3000W
-
Machine Type:
-
Fully automatic turntable machine
-
Function:
-
Plastic Welder
-
Welding material:
-
ABS PVCPC PE
-
MOQ:
-
1 Set
-
Certificate:
-
CE ISO
-
Frenquency:
-
15/20KHZ
-
Work station:
-
6-24 stations
-
Working speed:
-
The fastest is 3000 pieces/hour
-
Turntable diameter:
-
350-800mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LINJIE
-
Voltage:
-
110V/220V, 220V
-
Frequency:
-
20KHz
-
Welding Area:
-
Customized
-
Dimensions:
-
800mm *900mm * 1800mm
-
Usage:
-
Plastic Welding
-
Weight (KG):
-
250 KG
-
Power (kW):
-
3000W
-
Machine Type:
-
Fully automatic turntable machine
-
Function:
-
Plastic Welder
-
Welding material:
-
ABS PVCPC PE
-
MOQ:
-
1 Set
-
Certificate:
-
CE ISO
-
Frenquency:
-
15/20KHZ
-
Work station:
-
6-24 stations
-
Working speed:
-
The fastest is 3000 pieces/hour
-
Turntable diameter:
-
350-800mm

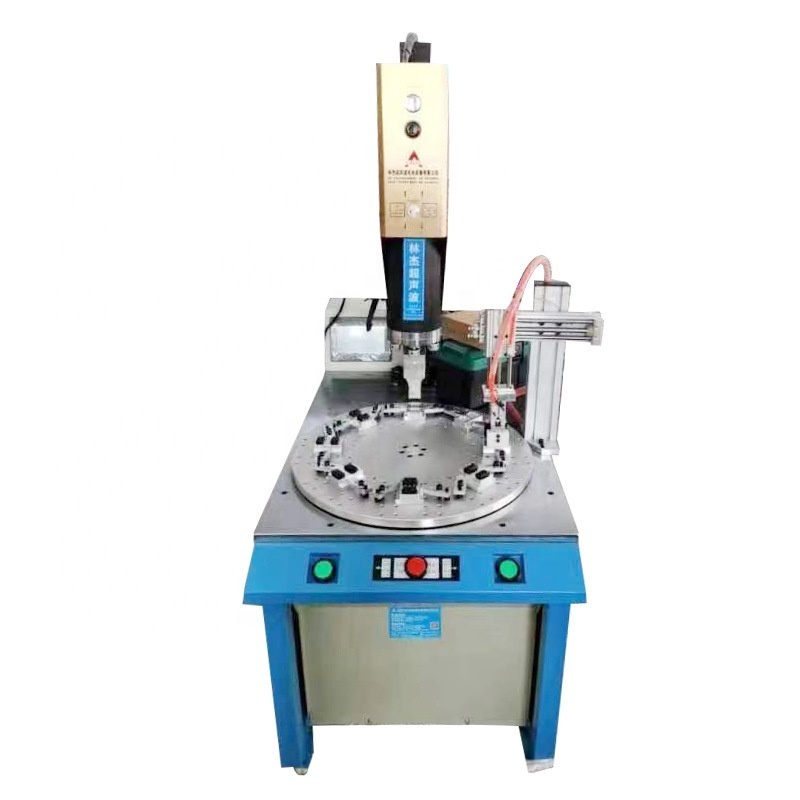

Ultrasonic Plastic Welders Multi-station Automatic Turntable PVC Toy Manufacturing Machine Ultrasonic Plastic Welding Machine
Product Description
Main Function
5. Single head ultrasonic plane layout, multi station welding, higher efficiency than standard welding machines.
6. The bottom sensor detects the divider and automatically selects the upward rotary table and ultrasonic welding head.
7. Save one person on homework. The assembler places the product in the fixture of the eight zones, and the machine automatically presses it.
8. The robotic arm takes the product to the assembly line.
9. Machine costs can be recovered within six months
Product Paramenters
|
model
|
LJ-ZDH20C
|
|
Power form
|
ultrasonic
|
|
Frequency band
|
high frequency
|
|
Principle of Action
|
High frequency vibration friction
|
|
Welding Principles
|
High frequency vibration friction heat generation
|
|
current
|
exchange
|
|
product name
|
Rotary ultrasonic
|
|
brand
|
Lin Jie
|
|
control mode
|
automatic
|
|
Driving form
|
automatic
|
|
Lifting control
|
Electric
|
|
Object of action
|
plastic
|
|
weight
|
250 (kg)
|
