Quick Details
-
Brand Name:
-
Shelok
-
Model Number:
-
SLK-ZFG
-
Product Name:
-
4-20mA smart electromagnetic flowmeter water flow meter
-
Pipeline PTFE lining:
-
DN10 ~ DN600
-
Pipeline rubber lining:
-
DN40 ~ DN1200
-
Range ratio:
-
150: 1
-
Repeatability error:
-
± 0.1% of the measured value
-
Flow direction:
-
positive, negative, net flow
-
Accuracy class:
-
Pipeline: 0.5 level, 1.0 level
-
Flow rate range:
-
0.1-15m / s
-
Conductivity range:
-
measured fluid conductivity ≥ 5μs / cm
Quick Details
-
Type:
-
electromagnetic flow meter
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Shelok
-
Model Number:
-
SLK-ZFG
-
Product Name:
-
4-20mA smart electromagnetic flowmeter water flow meter
-
Pipeline PTFE lining:
-
DN10 ~ DN600
-
Pipeline rubber lining:
-
DN40 ~ DN1200
-
Range ratio:
-
150: 1
-
Repeatability error:
-
± 0.1% of the measured value
-
Flow direction:
-
positive, negative, net flow
-
Accuracy class:
-
Pipeline: 0.5 level, 1.0 level
-
Flow rate range:
-
0.1-15m / s
-
Conductivity range:
-
measured fluid conductivity ≥ 5μs / cm
Description 4-20mA smart electromagnetic flowmeter water flow meter
Intelligent electromagnetic flowmeter consists of two parts, the sensor and converter. It is based on the work of Faraday's law of electromagnetic induction, used to measure the conductivity is greater than 5μS / cm conductive liquid volumetric flow rate, is a measure of the volume flow of conductive medium for induction meter. In addition to measure the volume flow of conductive liquid, it can also be used to measure the volume of a homogeneous liquid-solid two-phase flow of a liquid suspension of acid and alkali and other strong corrosive liquids and slurries, pulp and paper pulp. Widely used in flow measurement of petroleum, chemical, metallurgy, textile, paper, environmental protection, food and other industrial and municipal administration, water conservancy construction, river dredging and other fields.

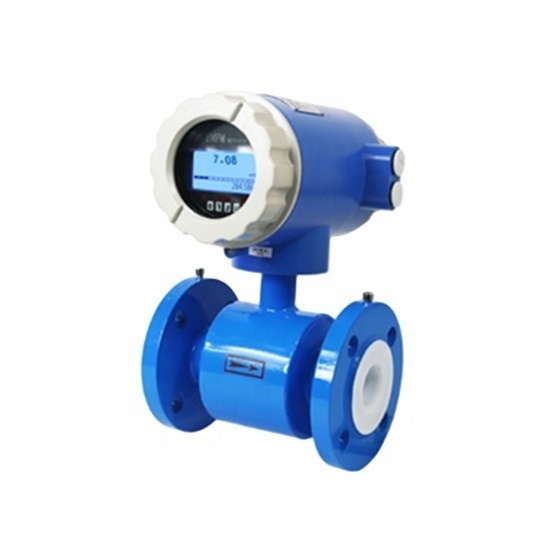

Detailed Images 4-20mA smart electromagnetic flowmeter water flow meter
Specification 4-20mA smart electromagnetic flowmeter water flow meter
|
Conductivity Range |
The measured fluid condutivity≥5μs/cm |
|
Load Resistance |
0 ~ 10mA 0 ~ 1.5KΩ |
|
Current Output |
4 ~ 20mA 0 ~ 750KΩ |
|
Digital Frequency Output |
Transistor output frequency limit can be set with optical isolation within 1~5000Hz bidirectional open-collector output. External power supply is turned ≤35V maximum collector current of 250mA |
|
Power Supply |
AC 220V Or DC 24V |
|
Length Of Straight Pipe Requirements |
Up Stream≥5DN, Down Stream≥2DN |
|
Connection |
are used between the meter and piping flange connection, flange dimensions shall comply with the provisions of GB11988 |
|
Explosion Levels |
Exd II BT4 |
|
Protection Class |
IP65, Special Order up to IP68 |
|
Ambient Temperature |
-25℃ ~ +60℃ |
|
Relative Humidity |
5% ~ 95% |
|
Total Power Consumption |
Less Than 20W |
Features 4-20mA smart electromagnetic flowmeter water flow meter
1. The sensor adopts overall welding structure, good sealing
2. Record the measurement from the measured media pressure, temperature, density, viscosity and other physical parameters
3. With functions of conductivity measurement, can distinguish whether the sensor controller
4. Using 16-bit embedded microcontroller processor, a fast calculation speed, high precision
5. With two-way flow measurement function, can show positive and reverse flow, percentage, velocity of flow
6. With two-way flow measurement function, can show positive and reverse flow, percentage, velocity of flow
Selection Guide 4-20mA smart electromagnetic flowmeter water flow meter
