Quick Details
-
Dimension(L*W*H):
-
1100*900*1000mm
-
Weight:
-
500 kg
-
Features:
-
Hand-Push
-
Product Name:
-
Thermoplastic Road Marking Paint Remover Machine
-
Line Types:
-
Flat Line
-
Application:
-
City Road Edge Line
-
Usage:
-
Thermoplastic Paint Road Line
-
Mark width:
-
80/100/1208180/200/230/300/400/450
-
Mark thickness:
-
1.0-3.0 Mm
-
Marking mode:
-
Thermoplastic Road Striping Equipment
-
Type:
-
Needing Pre Heater
-
Road marking machine:
-
Manual Hot Road Line Marking Machine
Quick Details
-
Power:
-
n/a
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YGM
-
Dimension(L*W*H):
-
1100*900*1000mm
-
Weight:
-
500 kg
-
Features:
-
Hand-Push
-
Product Name:
-
Thermoplastic Road Marking Paint Remover Machine
-
Line Types:
-
Flat Line
-
Application:
-
City Road Edge Line
-
Usage:
-
Thermoplastic Paint Road Line
-
Mark width:
-
80/100/1208180/200/230/300/400/450
-
Mark thickness:
-
1.0-3.0 Mm
-
Marking mode:
-
Thermoplastic Road Striping Equipment
-
Type:
-
Needing Pre Heater
-
Road marking machine:
-
Manual Hot Road Line Marking Machine

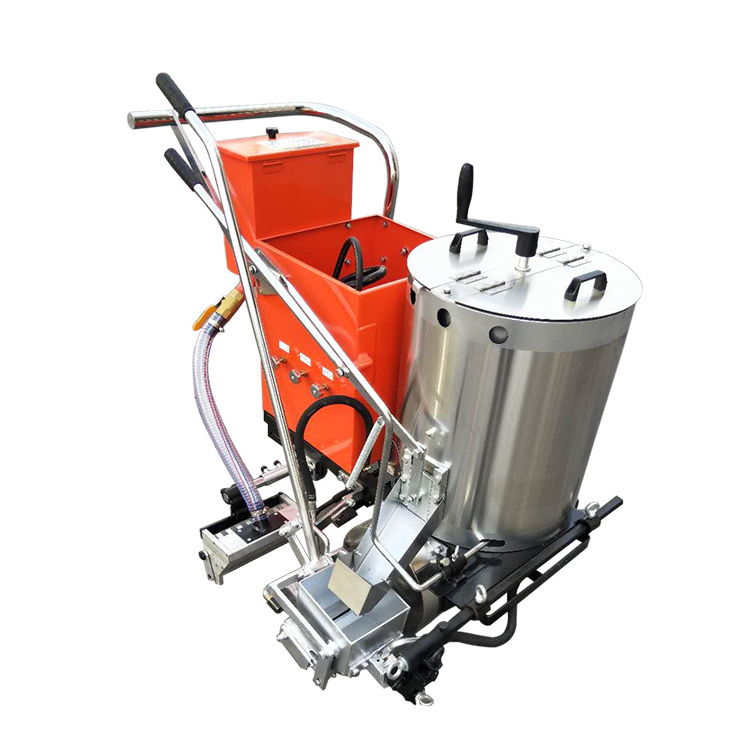

Thermoplastic Road Marking Machine
Thermoplastic road marking machine is used for road, road and other road traffic safety signs such as zebra crossings, sidewalks, lanes, and other road construction instructions and signs. It is mainly used for scraping and coating of hot-melt marking lines. After changing the marking bucket, it can complete the marking construction of various widths.
|
Model |
YG-180 |
YG-320 |
YG-360 |
YG-380 |
|
Weight |
150KG |
120kg |
110kg |
1 0 0KG |
|
G lass b ea d Container |
10kg/box |
10kg/box |
10kg/box |
10kg/box |
|
Hopper W idth |
10/ 15/20/ 25/ 30/40/45cm |
10/ 15/20/ 25/ 30/40/45cm |
10/15/20/25/ 30/40/45cm |
10/ 15/20/ 25/ 30/40/45cm |
|
Marking T hickness |
1-2.5mm |
1-3mm |
1-2.5mm |
1-2.5mm |
|
Diamension(L*W*H) |
1300mm*900mm *1050mm |
1300mm*900mm *920mm |
1250mm*900mm *950mm |
1200*900 * 950 mm |
|
Heating T ype |
|
liquefied petroleum gas |
liquefied petroleum gas |
liquefied petroleum gas |
Product Features :
1. The scribing bucket is made of special alloy material with good thermal conductivity to ensure no deformation during use.
2. The crossed bucket adopts double rod design, which is more convenient to use.
3. The movable carbide floor blade can be designed to make the linear cutting edges neat and tidy. It is particularly practical for uneven old pavement construction. The wheels are made of special rubber, which is resistant to high temperature, wear and tear, good elasticity, labor saving, and good construction stability.
4. Stainless steel double-layer thermal insulation bucket, high temperature resistance and no rust.
5.Vertical manual stirring device, easy to stir.
6. Adjustable hand push handle, height can be adjusted as required.
Application:
It can be used to mark highways, roads, zebra crossings, sidewalks, lanes and other pavement directions and signs for municipal traffic construction equipment.
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
