Reanin K7000 High Pressure Hydraulic PU Spray Foam Machine Polyurethane Spray Foam Machine Price

Reanin K7000 High Pressure Hydraulic PU Spray Foam Machine Polyurethane Spray Foam Machine Price

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

≥5 Sets

US $7500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: Three phase 220V 60Hz or Three phase 380V 50Hz

Dimension(L*W*H):: 120X90X155CM

Power (kW):: 21KW

Weight (KG):: 383 KG

Model:: Reanin-K7000 polyurethane and polyurea spray machine

Applicable materials:: Polyurethane and Polyurea

The ratio of raw material:: 1:1

Viscosity range of raw materials:: 200-1000CPS (under working temperature)

Max working pressure:: 35MPa

Max fluid temperature:: 80°C

Heated hose max power:: 3500W

Max heated hose length:: 90m

Drive mode:: Drive mode

Clean mode:: Self-cleaning by air

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Reanin

Machine Type:: foaming machine

Voltage:: Three phase 220V 60Hz or Three phase 380V 50Hz

Dimension(L*W*H):: 120X90X155CM

Power (kW):: 21KW

Weight (KG):: 383 KG

Model:: Reanin-K7000 polyurethane and polyurea spray machine

Applicable materials:: Polyurethane and Polyurea

The ratio of raw material:: 1:1

Viscosity range of raw materials:: 200-1000CPS (under working temperature)

Max working pressure:: 35MPa

Max fluid temperature:: 80°C

Heated hose max power:: 3500W

Max heated hose length:: 90m

Drive mode:: Drive mode

Clean mode:: Self-cleaning by air

PRODUCT DESCRIPTION

Description：

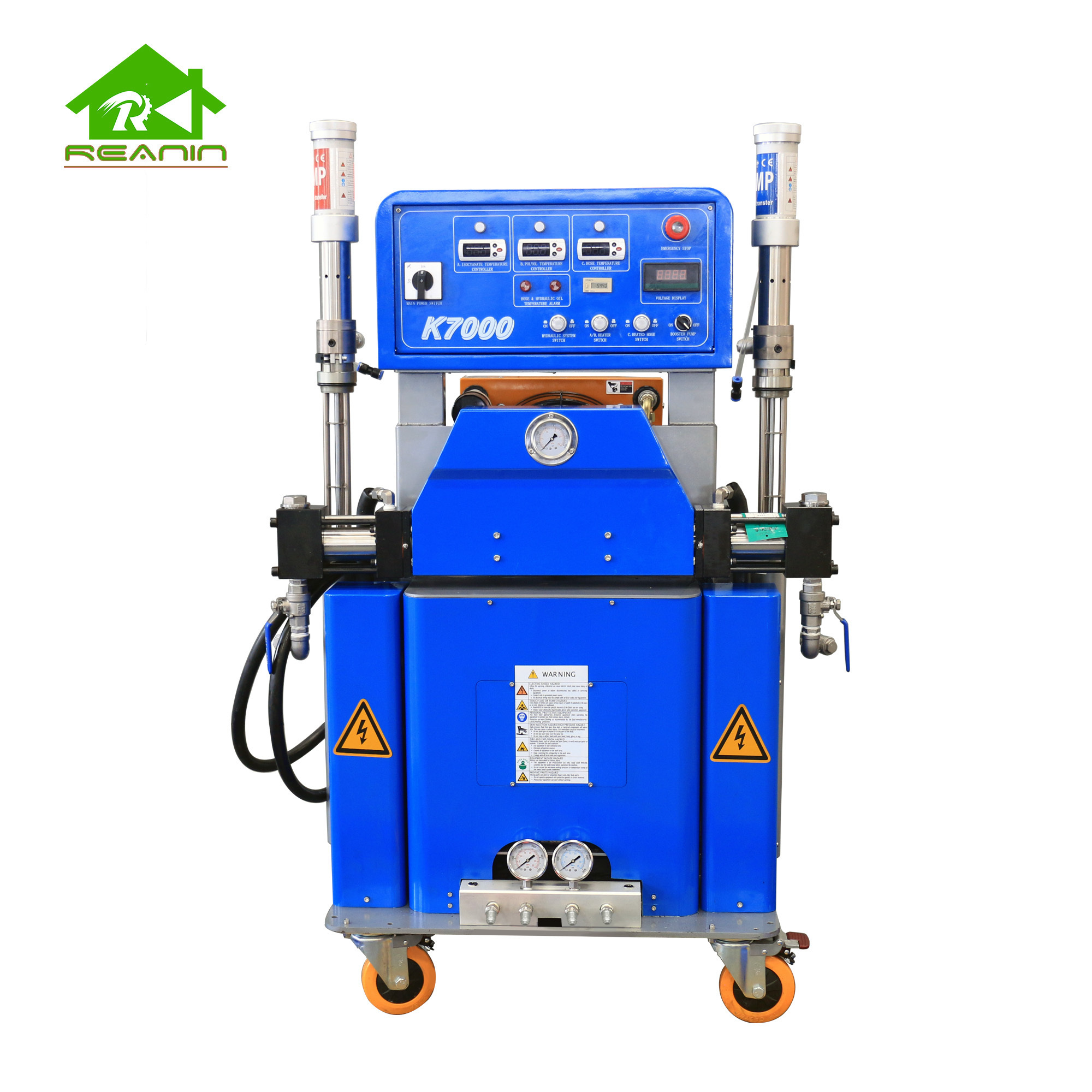

Reanin-K7000 is a hydraulic driven, professional and large polyurethane polyurea spray machine.

It is equipped with a horizontal booster pump, which not only has stable working pressure, but also has a large output. Suitable for mobile spray vehicle and large construction projects.

Application： construction, automobile, road, railway, shipbuilding, mining, petroleum, electrical, and other industries.

APPLICATION INDUSTRY

DETAILED PARTS

Technical Parameters
Model	Reanin-K7000 Polyurethane And Polyurea Spray Machine
Applicable materials	Polyurethane And Polyurea
The ratio of raw material	1:1
Viscosity range of raw materials	200-1000CPS (under working temperature)
Max working pressure	35MPa
Max fluid temperature	80°C
Max output	15kg/min
Max heated hose length (Optional)	90m
Heater power	6000W×2
Heated hose max power	3500W
Drive mode	Hydraulic
Voltage (Optional)	Single phase 220V 60Hz Three phase 380V 50Hz
Whole power	21kw
Pneumatic source	0.5-0.8Mpa 1m³/min

Standard Configuration
Reanin-K7000 mainframe	1 set	Heated hose	15m
Reanin spray gun	1 set	Transfer pump hose	2 pcs
Transfer pump	2 sets	Whip hose	2 pcs
Air pipe	1 set	Tools and spare parts	1 set
English user manual	1 set

Transportation Parameters (Based on standard configuration)
Model	Reanin-K7000 Polyurethane And Polyurea Spray Machine
Package size (LXWXH)	120X90X155cm
Net weight	329kg
Gross weight	397kg

CUSTOMER FEEDBACK

WORKSHOP

COMPANY INTRODUCTION

Shandong Reanin Machinery Co., Ltd.

Shandong Reanin Machinery Co., Ltd is one of the leading manufacturers of polyurethane and polyurea equipment in China. It has a modern production plant of over 2,000 square meters and an excellent team of engineers. Our products has been exported to more than 30 countries and regions, serves more than one thousand customers around the world. Welcome to contact us!

FAQ

Q: Are you the factory or trade company? A: We are the factory,found in 2016. Q: Can you provide tutorials? A: Of course.We also provide links to machine operation videos and machine operation manuals. Q: What's the delivery time? A: We can send the machine within 7 days after receiving the payment. Q: Can I use my logo? A: Yes. We also provide other customized services. Q: How to solve the polyurethane foaming machine failure? A: We are online 24 hours, you can contact us at any time Q: How to keep our transactions safe? A: We can establish cooperation through Alibaba and Trade Assurance, L/C, etc.
