Quick Details
-
Product name:
-

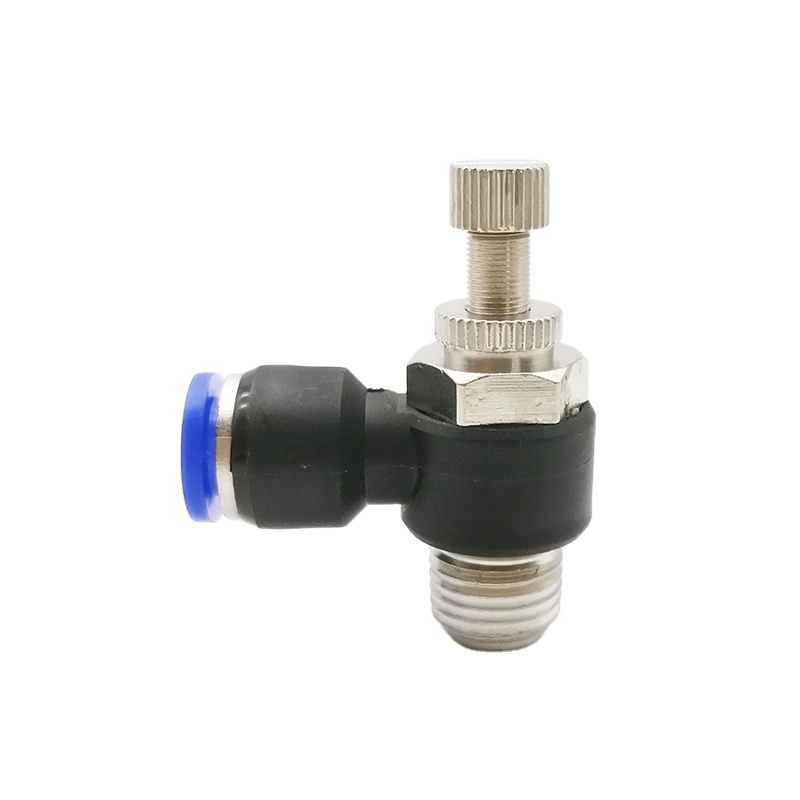

SL Pneumatic Fitting
-
Material:
-
Plastic, Nickel plated brass
-
Pipe Size:
-
4/6/8/10/12/14/16mm
-
Normal service pressure:
-
0~0.9Mpa
-
Maximum service pressure:
-
1.32Mpa
-
Application hose:
-
PU / Nylon hose
-
Ambient and fluid temperature:
-
0 - 60 °C
-
Types of:
-
coupling fitting
Quick Details
-
Weight (KG):
-
0.1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIIDNN
-
Product name:
-
SL Pneumatic Fitting
-
Material:
-
Plastic, Nickel plated brass
-
Pipe Size:
-
4/6/8/10/12/14/16mm
-
Normal service pressure:
-
0~0.9Mpa
-
Maximum service pressure:
-
1.32Mpa
-
Application hose:
-
PU / Nylon hose
-
Ambient and fluid temperature:
-
0 - 60 °C
-
Types of:
-
coupling fitting
Products Description
Product Feature
1.High Strength, Wear Resistance, Corrosion Resistance, High Density, Not Easy to Burst.
2.The Product is Sturdy and Durable and Has a Long Service Life.
3.Easy Installation and Disassembly, Good Sealing Performance.
4.It Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.
5.You Can Easily Insert or Pull out the Trachea Without Any Tools
6
.The Clip of Connecting Air Pipe is Made of Strong Plastic Material, Which is Not Easy to Fall off After Connection Adopt Sealing Component, Keep Good Sealing, Not Easy to Leak.
7.Freely Change Pipeline Direction After Installation,Easy to Insert or Pull Trachea Manually Without Tools.
8.4 Types of Pipe Fittings of Different Styles, Including Tee,Elbow,y Branch, Straight. Different Styles Can Meet Different Needs.
|
Meter type
|
φD
|
R
|
B
|
F
|
J
|
A
|
H
|
|
YSL4-M5
|
4
|
M5
|
16.5
|
20
|
11.7
|
3.5
|
8
|
|
YSL4-01
|
4
|
R1/8
|
24.5
|
41.5
|
13
|
7.5
|
10
|
|
YSL4-02
|
4
|
R1/4
|
28.7
|
25.8
|
14.6
|
9
|
14
|
|
YSL6-M5
|
6
|
M5
|
16.5
|
20
|
18.6
|
3.5
|
8
|
|
YSL6-01
|
6
|
R1/8
|
24.5
|
22.5
|
22.2
|
7.5
|
10
|
|
YSL6-02
|
6
|
R1/4
|
28.7
|
24.7
|
11.7
|
9
|
14
|
|
YSL6-03
|
6
|
R3/8
|
33.4
|
26.6
|
13
|
10
|
19
|
|
YSL6-04
|
6
|
R1/2
|
38.5
|
29.7
|
14.6
|
12.5
|
24
|
|
YSL8-01
|
8
|
R1/8
|
24.5
|
25.5
|
18.6
|
7.5
|
10
|
|
YSL8-02
|
8
|
R1/8
|
28.7
|
27.3
|
22.2
|
9
|
14
|
|
YSL8-03
|
8
|
R3/8
|
33.4
|
28.7
|
11.7
|
10
|
19
|
|
YSL8-04
|
8
|
R1/2
|
38.5
|
32
|
13
|
12.5
|
24
|
|
YSL10-01
|
10
|
R1/8
|
24.5
|
29.8
|
14.6
|
7.5
|
10
|
|
YSL10-02
|
10
|
R1/4
|
28.7
|
31.7
|
19.8
|
9
|
14
|
|
YSL10-03
|
10
|
R3/8
|
33.4
|
32.6
|
22.8
|
10
|
19
|
|
YSL10-04
|
10
|
R1/2
|
38.5
|
35.2
|
24.8
|
12.5
|
24
|
|
YSL12-01
|
12
|
R1/8
|
24.5
|
31
|
20.3
|
7.5
|
10
|
|
YSL12-02
|
12
|
R1/4
|
28.7
|
33
|
22.3
|
9
|
14
|
|
YSL12-03
|
12
|
R3/8
|
33.4
|
36.7
|
24.2
|
10
|
19
|
|
YSL12-04
|
12
|
R1/2
|
38.5
|
36.8
|
25.2
|
12.5
|
24
|
About Color Difference: We All Items Are for Real Shooting; for Technology, Display, Light, Environmental Reasons May Be a Slight Deviation Phenomenon, Please in Kind Prevail.
