The new generation of handheld laser welding with 7-inch industrial LED touch screen, intelligent operating system, it supports simple operation mode, easy to learn, simple and fast operation.For new hand, it only takes 30 minutes of training to master the welding operation, thus saves the training and production cost. With 32 sets of preset and user-defined process parameters，users can quickly select welding parameters according to different materials and thicknesses, and new hand can also weld with high quality and high consistency.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AC-Laser
-
Single Pulse Energy:
-
-
-
Pulse Width:
-
-
-
Wavelength:
-
1064nm -1070nm
-
Focal Spot Diameter:
-
-
-
Dimensions:
-
600*273*560mm
-
Weight (KG):
-
51 KG
-
Product name:
-

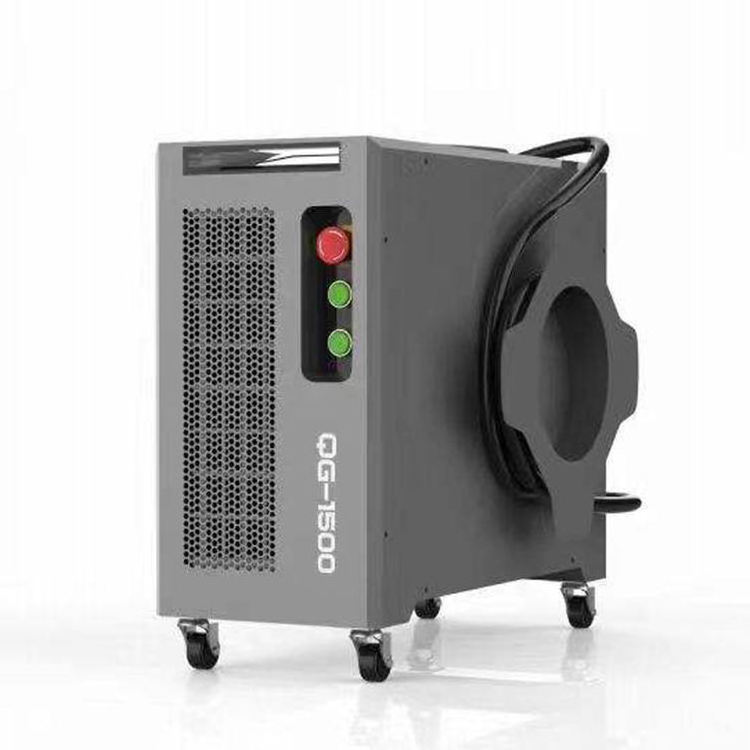

1200W Air Cooled Handheld Laser Welding Machine
-
Application:
-
Metal Stainless Steel Laser Welder
-
Laser type:
-
Continuous Fiber Laser
-
Laser wavelength:
-
1070nm
-
Max laser power:
-
1200w
-
Cooling System:
-
Air Cooling System
-
Keywords:
-
Easy Operation
-
Working voltage:
-
220VAC/50Hz/60Hz
-
After-sales Service Provided:
-
After-sales Service
-
Operating system:
-
Hand-held Welding System
Quick Details
-
Max. Output Power:
-
1200w
-
Use:
-
Metal Welding
-
Laser Source Brand:
-
GW /IPG / Max
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AC-Laser
-
Single Pulse Energy:
-
-
-
Pulse Width:
-
-
-
Wavelength:
-
1064nm -1070nm
-
Focal Spot Diameter:
-
-
-
Dimensions:
-
600*273*560mm
-
Weight (KG):
-
51 KG
-
Product name:
-
1200W Air Cooled Handheld Laser Welding Machine
-
Application:
-
Metal Stainless Steel Laser Welder
-
Laser type:
-
Continuous Fiber Laser
-
Laser wavelength:
-
1070nm
-
Max laser power:
-
1200w
-
Cooling System:
-
Air Cooling System
-
Keywords:
-
Easy Operation
-
Working voltage:
-
220VAC/50Hz/60Hz
-
After-sales Service Provided:
-
After-sales Service
-
Operating system:
-
Hand-held Welding System
The columated QBS interface greatly reduces the volume and weight of the welding torch, only 680g. The optical design perfectly matches the QBS output head with high transmission efficiency.The sharp of the welding gun is ergonomic, comfortable to hold and easy to operate. In addition, the welding torch built-in laser swing function, can achieve wide weld welding.
|
Item
|
Parameters
|
|
Function
|
Welding,cutting,cleaning 3 in 1
|
|
Laser Source Type(welding mode)
|
Air-cooled continuous fiber laser
|
|
Laser Output Power(welding mode)
|
1200w
|
|
Wavelength
|
1070nm
|
|
Cooling Method
|
Air-cooling
|
|
Swing Width
|
≤5mm
|
|
Welding Material
|
Stainless steel/carbon steel/aluminum/galvanized/copper
|
|
Welding Depth(SS)
|
4.5mm
|
|
Welding Depth(CS)
|
4.5mm
|
|
Welding Depth(Copper)
|
3mm
|
|
Feeding Wires' Dimension
|
0.8-1.6 wire
|
|
Shielding Gas
|
Argon/Nitrogen
|
|
Weight
|
51KG
|
|
Size
|
600*273*560mm
|
|
Power Supply
|
220VAC/50Hz/60Hz
|
